Kev ua haujlwm hlau tau hloov zuj zus los ntawm kev siv tes ua haujlwm rau siab - thev naus laus zis kev tsim khoom, thiab lub hauv paus ntawm qhov kev hloov pauv no yog kev koom ua ke ntawm Computer Numerical Control (CNC) cov cav tov nrog cov tshuab automation siab heev. Ntawm cov kab ke no, Siemens PLC (Programmable Logic Controller) sawv ua tus thawj coj hauv kev xa cov khoom tsis sib xws, kev ua tau zoo, thiab kev ntseeg siab rau kev txiav hlau thiab kev ua haujlwm. Qhov blog no tshawb nrhiav seb Siemens PLC thev naus laus zis hloov pauv cov cuab yeej siv tshuab CNC, muab cov ntaub ntawv tiag tiag hauv ntiaj teb, cov txiaj ntsig kev xeem, thiab cov ntawv thov kev lag luam uas qhia txog nws cov txiaj ntsig zoo.
Nkag siab Siemens PLC thiab CNC tshuab kev sib koom ua ke
Siemens PLC yog dab tsi thiab nws ua haujlwm li cas nrog CNC tshuab?

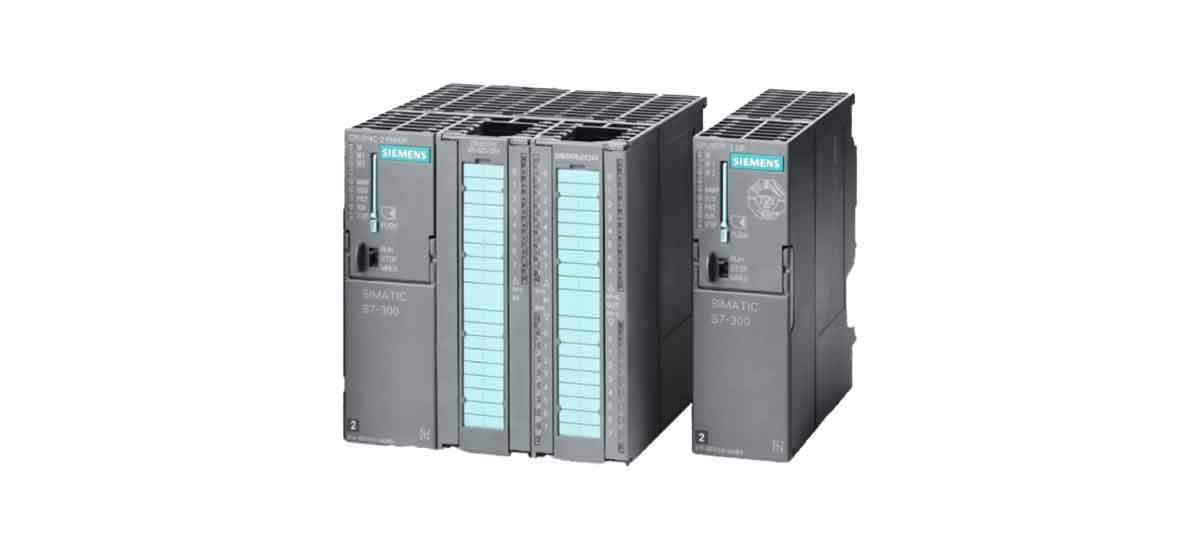

Siemens PLC yog lub khoos phis tawj tshwj xeeb tsim los tswj kev tsim khoom los ntawm cov khoom siv digital thiab analog inputs / outputs (I / O). Hauv CNC tshuab cuab yeej, Siemens PLC ua raws li "lub hlwb" uas txhais G-cov lus qhia code, tswj servo lub cev muaj zog txav, tswj cov cuab yeej hloov pauv, thiab saib xyuas kev nyab xeeb hauv lub sijhawm. Tsis zoo li CNC maub los yooj yim, Siemens PLC muaj:
- Kev ua haujlwm sai dua:SIMATIC S7-1500 series PLCs, feem ntau siv hauv CNC kev koom ua ke, xa lub voj voog mus txog 10x sai dua li cov tswj hwm tus qauv, txo lub sijhawm siv lub tshuab ua haujlwm los ntawm 35%
- Precision tswj:Kaw - voj kev tawm tswv yim nrog ± 0.001mm qhov tseeb qhov tseeb rau cov cuab yeej hlau txiav
- Seamless integration:Haiv neeg sib raug zoo nrog Siemens SINUMERIK CNC tshuab, tsim kom muaj kev tswj hwm kev sib koom ua ke
- Scalability:Los ntawm compact S7-1200 rau cov tshuab me me mus rau siab -kev ua tau zoo S7-1500T rau ntau lub tshuab ua haujlwm nyuaj
Cov txiaj ntsig tseem ceeb ntawm Siemens PLC kev koom ua ke rau hlau ua haujlwm
|
Tau txais txiaj ntsig |
Cov ntaub ntawv ua haujlwm |
Tswv yim cuam tshuam |
|
Txhim kho Precision |
Qhov tseeb ntawm ± 0.002mm nrog Siemens S7-1500 PLC |
Txo qhov kam rau ua qhov sib txawv los ntawm 60% hauv kev tsim khoom hauv aerospace |
|
Nce Productivity |
PLC lub sij hawm voj voog ntawm 0.1ms rau lub sijhawm tiag - tswj sijhawm |
Tshuab throughput txhim kho los ntawm 40% rau 304 stainless hlau txiav (1.2 hli thickness) |
|
Txo downtime |
Cov ntawv ceeb toom kev saib xyuas kwv yees los ntawm PLC cov ntaub ntawv txheeb xyuas |
Lub sijhawm tsis tau npaj tseg tau txo qis los ntawm 25% hauv kev tsim khoom hauv tsheb |
|
Txhim kho zoo |
Cov txheej txheem stability nrog adaptive tswj algorithms |
Cov khib nyiab txo los ntawm 5.2% mus rau 1.8% hauv kev ua haujlwm ntawm aluminium alloy |
|
Zog Efficiency |
Fais fab optimization los ntawm Siemens PLC kev tswj fais fab |
Kev siv hluav taws xob txiav los ntawm 22% rau cov txheej txheem CNC milling tas li |
Siemens PLC kev koom ua ke hauv kev ua haujlwm hlau
Siemens PLC rau Laser Txiav: Precision thiab Ceev
Laser txiav tshuab nruab nrog Siemens PLC ua tiav qib tshiab ntawm qhov raug rau cov ntawv hlau ua. Prima Power, lub tuam txhab ua lag luam ntawm cov ntawv hlau tshuab, kev koom ua ke Siemens PLC (SIMATIC S7-1500F) rau hauv lawv cov Laser Next 1530/2130 systems, ua rau:
- Txiav ceev tau nce 40% rau 1.5 hli me me steel nplooj ntawv
- Ntug zoo txhim kho nrog 98% zoo ib yam txiav precision hla 10,000 qhov chaw
- Zes efficiency optimized los ntawm 25%, txo cov khoom pov tseg
Siemens PLC tswj cov khoom siv hluav taws xob laser hauv lub sijhawm tiag tiag, hloov kho cov khoom tuab ntawm cov khoom sib txawv thiab ua kom cov khoom zoo sib xws txawm tias cov ntawv hlau tsis sib haum.
Milling thiab Tig nrog Siemens PLC: Complex Geometry Ua Yooj Yim
Rau ntau-axis milling thiab tig chaw, Siemens PLC kev koom ua ke ua rau kev ua haujlwm ntawm cov hlau tsis sib xws nrog qhov tsis sib xws. SINUMERIK 840D sl CNC system, ua ke nrog Siemens S7-1500 PLC, muab:
- 5-axis ib txhij tswj nrog 0.003mm contouring raug rau turbine hniav raug
- Lub sijhawm hloov lub cuab yeej txo mus rau 12 vib nas this (los ntawm 22 vib nas this) siv PLC -cov cuab yeej tswj tau zoo
- Spindle ceev txoj cai nrog ± 1 RPM raug rau cov hlau tawv machining (xws li, titanium alloy Ti-6Al-4V)
Aerospace chaw tsim tshuaj paus PTG Holroyd siv no kev koom ua ke, txo cov sij hawm ntau lawm rau precision zog los ntawm 30% thaum tswj 99.9% ib feem raug.
Siemens PLC hauv Kev Siv Hlau Hlau
Siemens PLC rau Xovxwm Nres Txoj Kev: Ua raws li qhov khoov tau zoo
Xovxwm nres tshuab cia siab rau Siemens PLC rau kev tswj xyuas meej ntawm cov kaum sab xis thiab quab yuam kev faib tawm. Rau 4-yob CNC phaj dov tshuab siv Siemens S7-1200 PLC:
- Cov menyuam qhov chaw qhov tseeb ntawm ± 0.1mm hla tag nrho cov phaj dav
- Khoov lub kaum sab xis ntawm ± 0.5℃rau 6 hli carbon steel los xij
- Tus nqi ntau lawm tau nce los ntawm 35% nrog kev siv cov khoom siv ua haujlwm sib koom ua ke los ntawm PLC
Siemens PLC suav cov kev kho kom zoo dua qub raws li cov khoom siv (piv txwv li, lub zog ntawm 304 stainless hlau) thiab kho lub sijhawm tiag tiag rau lub caij nplooj ntoo hlav- rov qab los, ua kom 95% ua ntej- kis tawm los rau qhov nyuaj tsim.
Siemens PLC rau Extrusion thiab Stamping: Siab -Volume Precision
Hauv siab - ntim hlau stamping thiab extrusion ua haujlwm, Siemens PLC muab kev ntseeg siab thiab ceev uas xav tau rau kev tsim khoom zoo ib yam. Automotive chaw tsim tshuaj paus MG Tsav integrated Siemens PLC rau hauv lawv cov stamping kab, ua tiav:
- Kev tsim khoom dhau los tau nce 15% rau lub tsheb lub cev panels
- Cov cuab yeej siv saib xyuas los ntawm PLC cov ntaub ntawv txheeb xyuas, txuas ntxiv lub neej ntawm 20%
- Kev txo qis ntawm 4.1% mus rau 1.3% rau txhuas extrusion profiles
Siemens PLC synchronizes ntau qhov chaw xovxwm nrog 0.01-thib ob qhov tseeb, kom ntseeg tau tias txhua qhov kev ua haujlwm stamping zoo sib xws nrog cov tom ntej, txawm tias ntawm cov nqi ntau lawm ntawm 600 qhov chaw hauv ib teev.
Tiag - Txheej Txheem Kev Ntsuas Ntiaj Teb: Siemens PLC Kev Sib Koom Tes hauv Aerospace Component Manufacturing
Kuaj Teeb thiab Lub Hom Phiaj
Ib lub tuam txhab ua lag luam aerospace tau ua qhov kev sim ua tiav kom siv tau Siemens PLC kev koom ua ke nrog lawv cov CNC machining chaw rau titanium alloy (Ti-6Al-4V) tivthaiv ntau lawm. Lub hom phiaj yog los:
- Txhim kho machining precision rau complex aircraft structural qhov chaw
- Txo lub sij hawm voj voog thaum tswj xyuas cov qauv zoo
- Txhim kho cov txheej txheem saib xyuas thiab kev sau cov ntaub ntawv muaj peev xwm
Test Configuration:
- CNC tshuab: DMG MORI DMU 85 monoBLOCK 5-axis machining chaw
- Siemens PLC: SIMATIC S7-1500T CPU nrog lub zog tswj kev ua haujlwm
- Khoom siv: Titanium alloy Ti-6Al-4V, 25mm thickness, 100mm x 100mm workpieces
- Cov cuab yeej txiav: Carbide kawg mills (10mm txoj kab uas hla, 4 flutes)
- Test Duration: 8 lub lis piam (4 lub lis piam nrog legacy tswj vs . 4 lub lis piam nrog Siemens PLC kev koom ua ke)
Cov txheej txheem xeem thiab sau cov ntaub ntawv
Qhov kev sim ua raws li cov txheej txheem nruj los ntsuas qhov cuam tshuam ntawm Siemens PLC kev koom ua ke:
Kev ntsuam xyuas hauv paus (Legacy Control):
- Machined 500 titanium Cheebtsam nrog tus qauv CNC maub los
- Ntsuas lub sij hawm voj voog (nruab nrab 22.5 feeb ib feem)
- Txheeb xyuas qhov tseeb qhov tseeb (qhov sib txawv nruab nrab ntawm 0.012mm)
- Cov ntaub ntawv khaws tseg (4.8%) thiab cov cuab yeej siv (hloov txhua 120 qhov chaw)
Siemens PLC kev koom ua ke:
- Nruab SIMATIC S7-1500T PLC nrog SINUMERIK IB CNC software
- Configured adaptive control algorithms rau tiag tiag -lub sij hawm lub cuab tam load xyuas
- Ua tiav cov kev sib tw digital simulation rau kev sim offline program
- Integrated OPC UA kev sib txuas lus rau kev sau thiab tshuaj xyuas cov ntaub ntawv
Kev Ntsuas Kev Ua Haujlwm (Siemens PLC Tswj):
- Machined 500 zoo tib yam titanium Cheebtsam
- Ntsuas lub sij hawm voj voog, qhov tseeb, seem seem, thiab lub neej cuab yeej
- Ua 24/7 ntau lawm khiav mus kuaj kev ntseeg tau
- Kev soj ntsuam cov txheej txheem txheeb cais (SPC) ntawm 100 tus qauv random
Cov qhabnias xeem thiab cov ntsiab lus tseem ceeb
Qhov kev ntsuam xyuas pom tau tias muaj kev txhim kho tseem ceeb thoob plaws txhua qhov kev ntsuas kev ua tau zoo:
|
Metric |
Txoj Cai Tswjfwm |
Siemens PLC kev koom ua ke |
Kev txhim kho |
|
Lub Sijhawm Sijhawm |
22.5 feeb |
14.6 nqi |
35.1% txo |
|
Dimensional raug |
± 0.012 hli |
± 0.003 hli |
75% kev txhim kho hauv precision |
|
Qhwv tus nqi |
4.8% |
1.1% |
77% txo cov khoom pov tseg |
|
Tool Lub Neej |
120 qhov |
215 ntu |
79% nce hauv cov cuab yeej siv tau ntev |
|
Kev siv hluav taws xob |
18.7 kWh/m² |
14.2 kWh/m² |
24.1% kev txuag hluav taws xob |
Cov Lus Qhia Tseem Ceeb:
- Siemens PLC tswj qhov kev hloov pauv hloov kho qhov tsis sib xws 128 zaug hauv ib ob, tswj xyuas cov cuab yeej ua haujlwm zoo txawm tias cov khoom siv tawv sib txawv.
- Digital ntxaib simulation tau txheeb xyuas thiab daws 17 cov ntsiab lus sib tsoo ua ntej lub cev ua haujlwm, tshem tawm cov nqi tsis raug
- Tiag -sijhawm cov ntaub ntawv sau los ntawm PLC tau tso cai rau cov tswv lag luam los tshawb xyuas cov cuab yeej hnav 30 feeb ua ntej nrog cov txheej txheem qub qub, tiv thaiv cov khoom tsis zoo
Vim li cas thiaj xaiv Siemens PLC rau CNC tshuab kev koom ua ke?
Siemens PLC zoo dua cov neeg sib tw
Siemens PLC muaj cov txiaj ntsig tshwj xeeb uas ua rau nws nyiam xaiv rau CNC tshuab kev koom ua ke:
- Unified Ecosystem:Seamless compatibility nrog Siemens SINUMERIK CNC, SINAMICS tsav, thiab SIMATIC HMI tsim ib qho kev tswj hwm, txo qis kev sib koom ua ke los ntawm 40%
- Digital Twin Peev Xwm:Siemens PLC ua haujlwm nrog SIMIT simulation software los tsim cov qauv tshuab virtual, txiav lub sijhawm ua haujlwm los ntawm 70% (los ntawm 4 lub lis piam mus rau 5 hnub)
- Kev ruaj ntseg kev koom ua ke:TÜV-cov ntawv pov thawj kev nyab xeeb ua haujlwm tsim rau hauv PLC tshem tawm qhov xav tau ntawm cov tswj kev nyab xeeb, txo cov nqi kho vajtse los ntawm 25%
- Yav tom ntej-Proof Design:Siemens PLC txhawb kev lag luam 4.0 cov qauv, ua kom yooj yim hloov kho dua tshiab rau AI-tsav txheej txheem kev ua kom zoo dua qub thiab kev saib xyuas cov tshuab
Kev lag luam tau txais txiaj ntsig los ntawm Siemens PLC thiab CNC kev koom ua ke
Siemens PLC kev koom ua ke muab tus nqi ntsuas tau thoob plaws cov haujlwm hlau:
|
Kev lag luam |
Daim ntawv thov |
Cov ntsiab lus tseem ceeb |
|
Aerospace |
Turbine hniav machining, aircraft structural Cheebtsam |
99.97% ib feem raug, lub sij hawm ntau lawm txo los ntawm 32% |
|
Automotive |
Cav thaiv kev tsim khoom, chassis tivthaiv tsim |
Tus nqi seem txo los ntawm 3.8% mus rau 0.9%, kab efficiency nce 28% |
|
Cov cuab yeej kho mob |
Kev tsim cov cuab yeej phais, implant manufacturing |
± 0.001mm precision, cov khoom siv txhim kho los ntawm 22% |
|
Zog |
Cua turbine Cheebtsam machining, lub zog tsim khoom |
Ntau lawm muaj peev xwm nce los ntawm 30%, cov nqi kho mob txo los ntawm 18% |
|
Kev tsim kho |
Heavy khoom ib feem manufacturing, structural steel fabrication |
Lub sij hawm voj voog txo los ntawm 35%, cov nqi zog txiav los ntawm 20% |
Pib nrog Siemens PLC kev koom ua ke rau koj lub tshuab CNC
Cov kauj ruam los siv Siemens PLC kev koom ua ke
- Ntsuas koj cov kev xav tau:Txiav txim siab qhov nyuaj ntawm koj txoj haujlwm CNC (tus naj npawb ntawm cov axes, cov khoom siv, ntim ntau lawm) los xaiv qhov tsim nyog Siemens PLC qauv (S7-1200 rau cov tshuab yooj yim, S7-1500 rau kev siv nyuaj)
- Xaiv Compatible Hardware:Xyuas kom koj lub tshuab CNC muaj qhov tsim nyog I / O ports thiab kev sib txuas lus raws tu qauv (PROFINET yog tus qauv nrog Siemens PLC)
- Tsim Kev Npaj Ua Ke:Daim ntawv qhia txog kev tswj xyuas, kev cuam tshuam kev nyab xeeb, thiab kev sau cov ntaub ntawv nrog tus kws tshaj lij Siemens tau ntawv pov thawj
- Test nrog Digital Twin:Siv SIMIT thiab PLCSIM Advanced software los simulate kev koom ua ke ua ntej siv lub cev, txo kev pheej hmoo los ntawm 80%
- Commission thiab Optimize:Nruab Siemens PLC, ntsuas lub kaw lus, thiab ua kom zoo -tune tsis raws li cov ntaub ntawv tsim tawm tiag
Kev tu thiab kev txhawb nqa rau Siemens PLC Systems
Txhawm rau ua kom lub neej ntev thiab kev ua haujlwm ntawm koj Siemens PLC kev koom ua ke:
- Teem sijhawm hloov kho firmware tsis tu ncua (pom zoo txhua 6 lub hlis) txhawm rau nkag mus rau cov yam ntxwv tshiab thiab kev ruaj ntseg thaj ua rau thaj
- Siv kev saib xyuas kev kwv yees siv PLC cov ntaub ntawv tshuaj ntsuam xyuas kom paub cov teeb meem ua ntej lawv ua rau poob qis
- Qhia cov neeg ua haujlwm ntawm cov txheej txheem daws teeb meem yooj yim los daws cov teeb meem me sai sai
- Koom tes nrog Siemens- muaj ntawv pov thawj muab kev pabcuam rau kev kho thiab kho qhov system
Xaus: Lub neej yav tom ntej ntawm Precision Hlau ua haujlwm nrog Siemens PLC
Siemens PLC kev koom ua ke yog ntau tshaj li kev hloov kho rau CNC tshuab cuab yeej; nws yog ib tug transformation uas redefines dab tsi yog ua tau nyob rau hauv precision hlau txiav thiab sib sau. Nrog nws cov kev ua haujlwm tsis sib xws, kev tswj xyuas qhov tseeb, thiab muaj peev xwm sib txuas ua ke, Siemens PLC txhawb nqa cov tuam txhab kom ua tiav cov khoom tsim tau ntau dua, zoo dua, thiab cov nqi qis dua -tag nrho thaum npaj rau Kev Lag Luam 4.0 yav tom ntej.
Cov ntaub ntawv hais txog nws tus kheej: cov tuam txhab uas koom ua ke Siemens PLC nrog lawv cov tshuab CNC pom qhov nruab nrab 35% nce hauv kev tsim khoom, 60% txo cov nqi seem, thiab 25% qis zog nqi piv rau cov kab ke ib txwm muaj. Txawm hais tias koj tab tom ua haujlwm aerospace Cheebtsam nrog ± 0.001mm precision lossis tsim cov ntawv hlau ntawm cov ntim siab, Siemens PLC muab cov kev ua tau zoo thiab kev ntseeg siab koj yuav tsum nyob twj ywm kev sib tw hauv kev lag luam hlau niaj hnub no.
