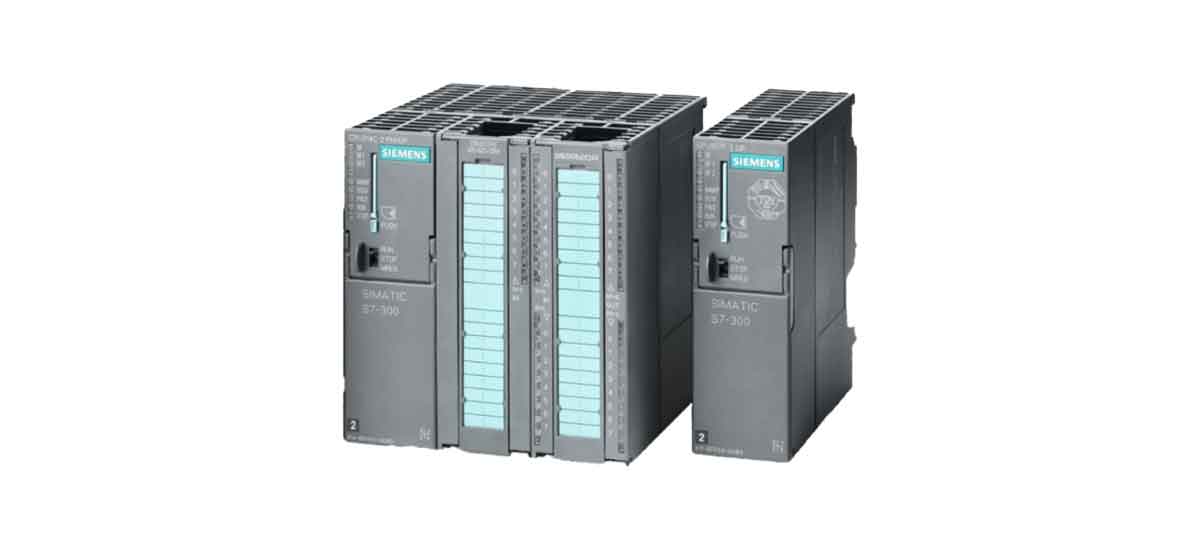

Siemens PLC rau Yas Recycling thiab Pelletizing: Shredder, Extruder, thiab Lim Tswj

Kev tswj cov khib nyiab yas xav tau qhov tseeb thiab kev ntseeg tau. Siemens PLC (Programmable Logic Controller) cov tshuab tau dhau los ua cov pob txha ntawm cov yas niaj hnub siv dua tshiab, muab kev tswj tsis sib xws ntawm cov shredders, extruders, thiab filtration units. Phau ntawv qhia no piav qhia txog yuav ua li cas Siemens PLC cov kev daws teeb meem ua kom zoo dua cov yas rov ua dua tshiab thiab cov txheej txheem pelletizing, xa cov txiaj ntsig kev ntsuas tau zoo thiab cov khoom zoo ib yam. Txawm hais tias koj ua haujlwm ib qho chaw me me lossis loj - nplai pelletizing cog, Siemens PLC thev naus laus zis muaj cov ntaub ntawv scalable, cov ntaub ntawv- tsav automation uas hloov cov pov tseg rau hauv siab - cov nqi pellets.

Vim li cas Siemens PLC yog qhov tseem ceeb rau kev rov ua dua tshiab thiab Pelletizing

Kev siv cov yas rov ua dua muaj peb theem tseem ceeb: shredding pov tseg rau hauv cov flakes tswj tau, extruding kom yaj thiab homogenize cov khoom, thiab lim kom tshem tawm cov kab mob. Txhua theem nthuav qhia cov kev sib tw tshwj xeeb ntawm kev tswj hwm-Siemens PLC hais txog cov no nrog kev siv lub tshuab hluav taws xob muaj zog, tiag tiag- lub sijhawm saib xyuas, thiab kev tswj hwm kev hloov pauv. Nov yog vim li cas nws yog tus qauv kev lag luam:

• Precision Txheej Txheem Tswj:Khaws qhov ntsuas kub, siab, thiab ceev tsis pub dhau ± 0.5% kam rau ua, kom ntseeg tau zoo pellet zoo
• Tiag -Tsev Cov Ntaub Ntawv Insights:Sau thiab txheeb xyuas 500+ cov txheej txheem hloov pauv ib ob, ua kom muaj kev hloov pauv sai
• Scalability:Los ntawm S7-1200 rau kev ua haujlwm me me mus rau S7-1500 rau cov kab nyuaj, Siemens PLC loj hlob nrog koj lub lag luam
• Kev ntseeg tau:Ua haujlwm nyob rau hauv ib puag ncig kev lag luam hnyav (kub ntau -25℃txog 60 degree) nrog MTBF (Lub Sijhawm Nruab Nrab Nruab Nrab) tshaj 100,000 teev
• Predictive Maintenance:Txo cov sij hawm tsis tau npaj tseg los ntawm 70-90% piv rau cov kev saib xyuas zoo

Siemens PLC kev koom ua ke ua kom koj cov kab rov ua dua tshiab khiav ntawm qhov ua tau zoo tshaj plaws thaum txo cov khoom pov tseg thiab kev siv hluav taws xob tsawg- cov ntsiab lus tseem ceeb rau kev muaj txiaj ntsig hauv kev lag luam yas rov ua dua tshiab.

Cov Cheebtsam tseem ceeb ntawm Siemens PLC -Controlled Recycling Line

Siemens PLC rau Shredder Tswj: Siv pov tseg kom tsawg

Shredding yog thawj kauj ruam tseem ceeb hauv kev siv cov yas rov ua dua tshiab, rhuav tshem cov khib nyiab loj rau hauv ib qho 8-16mm flakes rau kev ua haujlwm ntxiv. Siemens PLC hloov pauv kev ua haujlwm shredder nrog cov yam ntxwv tseem ceeb no:

Cov Ntsiab Cai Tswj Kev Ua Haujlwm

• Adaptive Torque Management:Tsis siv neeg kho rotor ceev raws li cov khoom hardness, tiv thaiv jams thiab txo cov hniav hnav los ntawm 40%
• Auto-Kev Tiv Thaiv Rov Qab:Ua rau rov qab tig tsis pub dhau 0.3 vib nas this ntawm kev kuaj pom kev dhau, txo qis qis los ntawm cov khoom thaiv.
• Feed Rate Synchronization:Matches conveyor ceev rau shredder muaj peev xwm, tswj kev pom kev hla ntawm 1-15 tons ib teev nyob ntawm seb lub tshuab loj
• Hnav Saib Xyuas:Taug qab siv cov hniav thiab xa cov lus ceeb toom thaum xav tau kev sib tw / hloov, ncua lub neej ntawm 30%

Cov ntaub ntawv ua tau zoo: Siemens S7-1200 Shredder Control Case

Qhov nruab nrab -qhov loj nyob sab Europe rov ua dua tshiab los ntawm phau ntawv mus rau Siemens S7-1200 PLC rau lawv ib leeg-ncej shredder. Cov txiaj ntsig:

• Kev xa tawm tau nce 42% (los ntawm 4.8 txog 6.8 tons / teev)
• Kev siv hluav taws xob txo los ntawm 28% (los ntawm 18 kWh / tuj rau 13 kWh / ton)
• Cov khoom pov tseg poob los ntawm 19% (los ntawm 8.2% mus rau 6.6%)
• Tus neeg ua haujlwm cuam tshuam lub sijhawm txo los ntawm 67% (los ntawm 120 mins / hnub rau 40 mins / hnub)

Cov txheej txheem xeem: Siemens S7-1200 PLC saib xyuas lub cev muaj zog tam sim no, rotor ceev, thiab cov khoom noj khoom noj hauv 10ms ib ntus. Thaum lub siab tshaj plaws tam sim no tshaj 110% ntawm lub hauv paus, lub kaw lus cia li txo tus nqi noj los ntawm 15% thiab qhib qhov pib rov qab ua haujlwm yog tias xav tau. Qhov kev hloov pauv no tiv thaiv 92% ntawm cov muaj peev xwm jams uas yav dhau los ua rau 2-3 teev ntawm txhua hnub downtime.

Siemens PLC rau Extruder Control: Kev Sib Txuas Lus thiab Homogenization

Extrusion yog qhov twg cov yas flakes hloov mus rau hauv cov khoom molten npaj rau pelletizing. Siemens PLC muab cov kev tswj xyuas meej ntawm cov cua sov, cua txias, thiab lub zog siab uas txiav txim siab pellet zoo thiab cov zis:

Kub thiab siab tswj

• Tuav 6 thaj chaw cua sov ntawm 180-230℃nrog ± 1℃raug siv PID algorithms kos hauv Siemens PLC firmware
• Tswj cov ntsia hlau ceev ntawm 20-150 RPM nrog 0.1 RPM precision, kom ntseeg tau tias qhov kev pom zoo tshaj plaws rau cov khoom siv homogenization
• Cov saib xyuas yaj siab txog li 35 MPa, ua rau muaj kev ceeb toom yog tias siab sib txawv los ntawm 5% los ntawm kev teeb tsa los tiv thaiv cov khoom puas

Nqus Degassing Optimization

• Automates dual{0}}zone nqus tsev degassing kom tshem tawm cov dej noo thiab cov tshuaj tsis haum
• Siemens PLC kho lub tshuab nqus tsev (0.08-0.1 MPa) raws li cov khoom siv noo noo, txo cov pellet noo noo rau<0.05%-critical for food-contact applications

Zog Efficiency Nta

• Kev saib xyuas kev siv hluav taws xob nrog 0.1 kWh precision, txheeb xyuas qhov tsis muaj txiaj ntsig uas nkim li 15% ntawm lub zog hauv cov kab ke ib txwm muaj
• Automatic idle mode txo lub zog siv los ntawm 40% thaum lub sij hawm hloov khoom siv los yog downtime

Cov ntaub ntawv ua tau zoo: Siemens S7-1500 Extruder Control System

Ib tug loj US -raws li pelletizing nroj tsuag ntsia Siemens S7-1500 PLC nrog ET200SP tej thaj chaw deb I/O rau lawv 3-extruder kab:

• Pellet txoj kab uas hla zoo sib xws ntawm ± 0.2mm txog ± 0.08mm (60% zoo dua precision)
• Extruder throughput nce 29% (los ntawm 2,200 kg / h txog 2,840 kg / h)
• Tus nqi seem txo los ntawm 7.3% mus rau 2.1% (71% kev txhim kho)
• Tus nqi hluav taws xob ib tuj txo los ntawm $ 18.50 (txo 19%)

Cov txheej txheem xeem: S7-1500 PLC synchronized peb extruders nrog cov khoom siv sib koom ua ke. Nws siv cov ntaub ntawv los ntawm 24 qhov kub thiab txias sensors, 6 siab transducers, thiab 3 torque meters los kho cov ntsia hlau ceev thiab cua sov lub sij hawm. Thaum ua tiav cov khoom sib xyaw PP / PE pov tseg, lub kaw lus tau hloov kho qhov kub thiab txias los ntawm +5℃thiab txo cov ntsia hlau ceev los ntawm 10% kom tswj tau cov viscosity zoo ib yam-ua rau cov pellets sib xws uas tau ua raws li ASTM D1238 cov qauv rau yaj cov ndlwg.

Siemens PLC rau Kev Tswj Xyuas Kev Pom Zoo: Kev tshem tawm cov kab mob thiab cov khoom purity

Kev pom zoo yog qhov tseem ceeb rau kev tsim cov khoom zoo - zoo pellets. Siemens PLC automates tus kheej- ntxuav cov lim thiab tshuaj ntsuam hloov, ua kom muaj kev ua haujlwm tas mus li thaum tshem tawm 99.9% ntawm cov kab mob (hlau, ntawv, thiab tsis yog- cov khoom yas):

Tsis siv neeg lim saib xyuas thiab ntxuav

• Taug qab qhov sib txawv siab hla cov ntxaij lim dej hauv 5ms ib ntus
• Ua rau rov qab los yog kev sib hloov ntawm lub vijtsam thaum lub siab tshaj 0.3 MPa, tswj xyuas qhov zoo txaus
• Rau dual -kem systems, hloov ntawm kab hauv<2 seconds with no production interruption

Contaminant Rejection Optimization

• Kho cov ntxaij lim dej loj (80-}300 microns) raws li cov khoom siv, nrog Siemens PLC khaws cia 50+ pre-programmed nqis rau cov yas (PET, PP, PE, ABS)
• Cov ntawv teev cov kab mob sib kis, ua kom cov ntaub ntawv - tsav kev txiav txim siab ntawm cov khoom noj khoom haus zoo thiab cov lim dej tu ncua

Cov ntaub ntawv kev ua tau zoo: Siemens PLC Lim Automation

Lub tuam txhab German rov ua dua tshiab tau siv Siemens PLC tswj lawv tus kheej -tu laser filtration system:

• Lim efficiency nce ntawm 98.7% mus rau 99.92%
• Filter screen lifespan ncua los ntawm 2.3x (los ntawm 120 teev mus rau 276 teev)
• Lub sijhawm tu ncua txo los ntawm 65% (los ntawm 5.2 teev / lub lis piam mus rau 1.8 teev / lub lis piam)
• Pellet rejection tus nqi vim muaj paug poob los ntawm 3.8% mus rau 0.4%

Cov txheej txheem xeem: Siemens PLC tau saib xyuas lub siab poob hla lub laser lim thiab cov khoom ntws ntws. Thaum lub siab mus txog 0.32 MPa, lub kaw lus qhib lub tshuab scraper ntawm 12 RPM thaum tuav cov dej ntws tas li. Nyob rau tib lub sijhawm, nws qhib lub valve pov tseg kom tshem tawm cov kab mob sib kis. Cov txheej txheem automated no tiv thaiv 100% ntawm phau ntawv kev cuam tshuam yav dhau los xav tau rau kev lim dej, tso cai rau cov tswv lag luam tsom mus rau kev tswj hwm zoo dua li kev saib xyuas niaj hnub.

Siemens PLC kev koom ua ke: Txuas Shredder, Extruder, thiab Lim Systems

Lub zog tiag tiag ntawm Siemens PLC nyob rau hauv nws lub peev xwm los koom ua ke tag nrho peb theem ntawm cov yas rov ua dua tshiab rau hauv kev sib koom ua ke, sib koom ua ke. Qhov kev sib koom ua ke no muab:

Centralized txheej txheem kev sib koom tes

• Siemens PLC ua raws li "lub hlwb" ntawm kev ua haujlwm, kom ntseeg tau tias cov khoom siv hluav taws xob sib tw sib tw extruder muaj peev xwm thiab pom kev ua haujlwm zoo
• Synchronizes 15+ cov cav tov nrog millisecond precision, tshem tawm cov fwj thiab ua kom muaj kev sib tw
• Txo cov ntaub ntawv nkag los ntawm 90% los ntawm kev sib faib cov ntaub ntawv tsis siv neeg ntawm cov khoom siv

HMI (Human-Machine Interface) rau kev tswj hwm tus neeg ua haujlwm

• Siemens KTP Basic lossis Comfort Panels muab kev nkag siab zoo ntawm touchscreen nkag mus rau txhua qhov txheej txheem tsis tau
• Qhia tawm tiag - lub sijhawm dashboards nrog 50+ cov ntsuas qhov tseem ceeb (dhau los ntawm kev siv hluav taws xob, kev siv pellet zoo)
• Tso cai rau ib qho - khawm daim ntawv qhia hloov pauv rau ntau hom yas, nrog Siemens PLC khaws cia 100+ ua ntej- cov zaub mov txawv
• Muab cov kauj ruam -los ntawm - cov kauj ruam qhia kev daws teeb meem rau cov teeb meem tshwm sim, txo lub sijhawm poob los ntawm 40%

Kev txheeb xyuas thiab txheeb xyuas cov ntaub ntawv

• Cov ntaub ntawv 1,000+ cov txheej txheem sib txawv nrog 1ms daws teeb meem, khaws cia 6 lub hlis ntawm cov ntaub ntawv rau kev tsom xam
• Tsim cov ntawv ceeb toom ua raws li cov qauv kev lag luam (ISO 15270, EN 15347) nrog nias ib zaug
• Kev koom ua ke nrog Siemens MindSphere rau huab -raws li kev tshuaj xyuas, ua kom muaj kev saib xyuas kev kwv yees thiab kev saib xyuas tej thaj chaw deb

Siemens PLC qauv rau kev ua haujlwm sib txawv

Xaiv qhov zoo Siemens PLC qauv nyob ntawm koj qhov chaw loj, ntim ntau lawm, thiab kev xav tau automation. Ntawm no yog ib qho kev tawg ntawm cov kev xaiv nrov tshaj plaws rau kev rov ua dua tshiab:

Rau feem ntau cov khoom siv yas rov ua dua tshiab thiab pelletizing, S7-1500 muaj qhov zoo tshaj plaws ntawm kev ua tau zoo, kev ua kom muaj zog, thiab tus nqi-zoo, txhawb nqa txog li 8 lab cim npe thiab 100+ axes ntawm kev tswj cov lus tsa suab.

Tiag -Kev Tshawb Fawb Ntiaj Teb: Siemens PLC Hloov Pauv Me Me Pelletizing Cog

Plastic Energy, tus thawj coj hauv kev rov ua dua tshuaj lom neeg, tau siv Siemens PLC (SIMATIC PCS 7) hla ob lub chaw ua haujlwm Spanish ua kev tshaj tawm - cov khoom siv pov tseg yas. Lub hom phiaj yog txhawm rau txhim kho cov txheej txheem kev ruaj ntseg thiab cov khoom sib xws thaum ntsuas cov khoom lag luam los ntawm 8,000 tons / xyoo txog 24,000 tons / xyoo.

Cov ncauj lus kom ntxaws

• Siemens PLC S7-1500 nrog ET 200SP tej thaj chaw deb I/O rau kev faib tswj
• 3,000+ I/O ntsiab lus saib xyuas shredders, extruders, filtration systems, thiab pelletizing units
• Kev koom ua ke nrog Siemens SCADA rau cov txheej txheem hauv nruab nrab pom pom
• MindSphere huab kev sib txuas rau lub sijhawm tiag tiag - saib xyuas kev ua haujlwm thiab kev saib xyuas kev kwv yees

Kev ntsuas tau

• Peev Xwm Ntau Lawm: nce 200% (los ntawm 8,000 tons / xyoo txog 24,000 tons / xyoo)
• Kev Siv Hluav Taws Xob: Txo kev siv hluav taws xob tshwj xeeb los ntawm 22% (los ntawm 870 kWh / tuj rau 678 kWh / ton)
• Cov Khoom Zoo: Pellet zoo sib xws, nrog 99.8% ntsib cov zaub mov- tiv tauj cov qauv (yav dhau los 95.3%)
• Downtime: Txo los ntawm 58% (los ntawm 18.7 teev / lub lis piam mus rau 7.8 teev / lub lis piam)
• Tus Nqi Kho Mob: Txo 41% vim kev ceeb toom kev saib xyuas los ntawm Siemens PLC

Cov txheej txheem kuaj thiab validation

Cov nroj tsuag tau ua 3- hli sab- los ntawm kev sib piv ntawm cov cuab yeej cuab tam thiab Siemens PLC automation. Cov kev ntsuam xyuas tseem ceeb suav nrog:

• Cov khoom siv sib txawv: Ua tiav 50 batch ntawm cov khoom pov tseg yas sib xyaw (vim li 20-40% hauv kev sib xyaw). Siemens PLC tswj pellet zoo nyob rau hauv 0.2% kam rau ua rau yaj ndlwg Performance index, piv rau 1.8% variation nrog cov cuab yeej cuab tam.
• Temperature Stability Test: Saib xyuas 12 extruder cua sov cheeb tsam tshaj 72 teev. Siemens PLC khaws cia kub li ntawm ± 0.8 degree, thaum cov txheej txheem qub txeeg qub teg pom kev hloov pauv ntawm ± 3.2 degree.
• Kev Ntsuam Xyuas Kev Tswj Siab: Thaum lub sijhawm ua tiav, cov kev hloov pauv siab nyob qis dua 2% nrog Siemens PLC, piv rau 8% nrog cov txheej txheem qub txeeg qub teg- tiv thaiv 100% ntawm lub siab- ntsig txog cov cuab yeej ua tsis tiav uas yav dhau los tau tshwm sim ob zaug hauv ib lub lis piam.

Cov nroj tsuag tam sim no siv Siemens PLC cov ntaub ntawv txhawm rau txhim kho kev xaiv cov khoom noj khoom haus, nrog rau lub kaw lus cia li hloov cov txheej txheem rau cov khoom sib txawv. Qhov kev hloov pauv no tau tso cai rau lawv ua cov txheej txheem qis dua - qib feedstock thaum tuav cov pellet zoo, nthuav lawv txoj hauv kev ua lag luam thiab cov nyiaj tau los.

FAQs Txog Siemens PLC rau Plastic Recycling thiab Pelletizing

Q1: Siemens PLC ua li cas txhim kho kev nyab xeeb hauv kev rov ua dua tshiab?

A: Siemens PLC suav nrog ua - hauv kev nyab xeeb (SIL 3 rated) uas:

• Nres cov khoom siv hauv<10ms if safety interlocks are triggered
• Saib xyuas lub cev muaj zog overloads thiab nres kev kub ceev tsis tu ncua
• Tiv thaiv kom tsis txhob muaj kev tso cai nkag mus rau cov kev tswj xyuas qhov tseem ceeb Cov yam ntxwv no txo ​​cov xwm txheej hauv chaw ua haujlwm los ntawm 60-70% piv rau cov tswj tsis yog PLC.

Q2: Siemens PLC puas tuaj yeem koom nrog cov khoom siv rov ua dua tshiab?

A: Yog lawm, Siemens PLC txhawb ntau txoj kev sib txuas lus (PROFINET, Modbus, OPC UA) rau kev sib koom ua ke nrog cov tshuab qub qub. Feem ntau retrofits tuaj yeem ua tiav hauv 2-5 hnub nrog kev cuam tshuam tsawg kawg nkaus. S7-1500 series suav nrog 16 kev sib txuas lus sib txuas, ua kom muaj kev sib raug zoo nrog 98% ntawm cov khoom siv hauv khw.

Q3: Dab tsi yog ROI rau kev siv Siemens PLC hauv qhov chaw rov ua dua tshiab?

A: Lub sij hawm them rov qab yog 8-14 lub hlis. Rau 10-tuj / teev, Siemens PLC muab:

• $240,000+ kev txuag txhua xyoo los ntawm kev txo nqi hluav taws xob (15-25% txo)
• $180,000+ nyiaj txuag txhua xyoo los ntawm cov khoom pov tseg tsawg (txo 10-20%)
• $120,000+ nyiaj txuag txhua xyoo los ntawm kev siv nyiaj qis dua (30-40% txo)
• Cov nyiaj tau los ntawm ntau dua - cov pellets zoo uas hais kom 10-15% tus nqi hwm

Q4: Siemens PLC ua li cas los daws cov ntaub ntawv hloov pauv hauv kev ua haujlwm rov ua dua tshiab?

A: Siemens PLC khw muag khoom 50+ ua ntej- cov ntawv qhia zaub mov rau cov khoom siv yas, ua rau ib qho - khawm hloov pauv hauv<5 minutes. The system automatically adjusts:

• Shredder ceev thiab torque nqis
• Extruder kub profiles thiab ntsia hlau ceev
• Filtration mesh loj thiab backwashing zaus
• Pelletizing cutter ceev rau qhov xav tau pellet txoj kab uas hla

Q5: Siemens PLC puas tuaj yeem pab tswj kev ua raws li cov khoom siv yas rov ua dua tshiab?

A: Yog lawm. Siemens PLC sau tag nrho cov txheej txheem cov ntaub ntawv xav tau kom ua raws li cov qauv thoob ntiaj teb (ISO 15270, EN 15347, FDA zaub mov- tiv tauj cov cai). Nws tsim cov ntaub ntawv automated uas:

• Taug qab cov ntaub ntawv traceability los ntawm kev nkag mus rau cov pellets tiav
• Cov ntaub ntawv siv hluav taws xob thiab emissions rau kev qhia txog kev ruaj ntseg
• Txheeb xyuas cov txheej txheem tsis ua raws li cov qauv zoo Cov yam ntxwv no txo ​​cov sij hawm ua raws li cov ntaub ntawv los ntawm 75% thaum ua kom tiav 100% kev tshuaj xyuas kev npaj.

Xaus: Siemens PLC - Lub neej yav tom ntej ntawm Smart Plastic Recycling

Siemens PLC tau hloov pauv cov yas rov ua dua tshiab thiab pelletizing los ntawm kev xa cov kev tswj xyuas qhov tseeb, -cov ntaub ntawv tshawb fawb tiag tiag, thiab kev hloov kho automation hla kev hlais, extrusion, thiab pom cov txheej txheem. Cov txiaj ntsig ntsuas tau-40% kev nkag siab dua, 28% tus nqi hluav taws xob qis dua, 70% txo qis qis, thiab 99.9% pom kev ua haujlwm zoo- ua rau nws muaj peev xwm tseem ceeb rau txhua qhov kev lag luam rov ua dua nrhiav kom muaj txiaj ntsig zoo thaum tsim cov pellets zoo.

Txawm hais tias koj tab tom hloov kho txoj kab uas twb muaj lawm lossis tsim lub chaw tshiab, Siemens PLC muaj cov kev daws teeb meem loj uas loj tuaj nrog koj txoj kev lag luam. Los ntawm kev sib koom ua ke Siemens PLC nrog HMI interfaces thiab huab -raws li kev txheeb xyuas, koj yuav tau txais kev sib tw hauv kev lag luam ncig- hloov cov khib nyiab yas rau hauv kev lag luam, muaj txiaj ntsig zoo rau kev tsim khoom, ntim khoom, thiab lwm yam.
