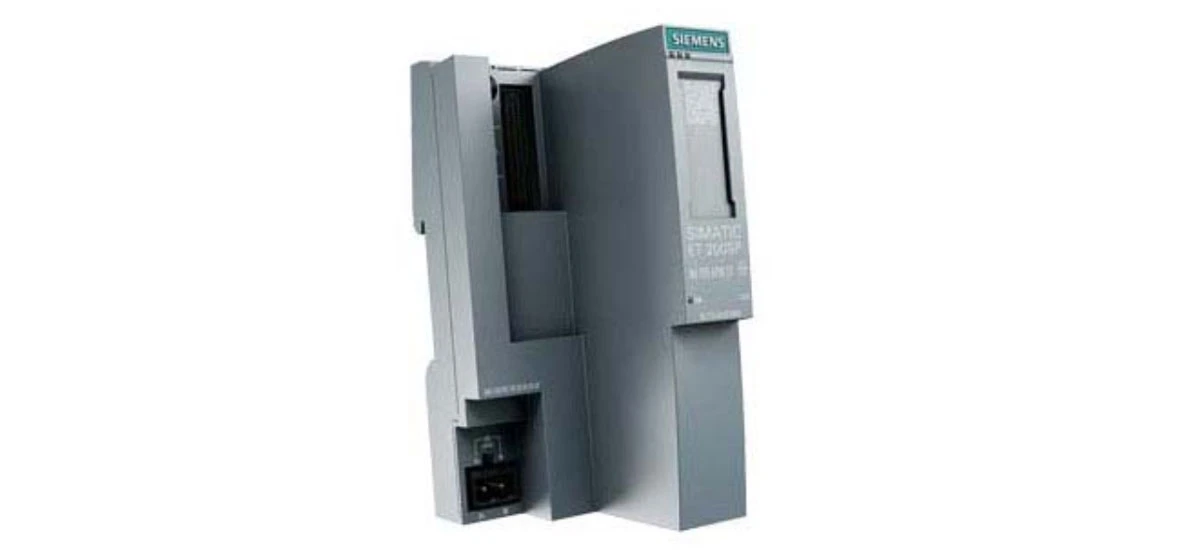

TusSimatic 6es7155-6au00-0DN0yog qhov tseem ceeb ntawm ntau cov tshuab ua lag luam. Raws li cov qauv profinet interface, nws ua zoo li tus choj, pab txuas cov khoom sib txawv hauv lub network sib txawv, thiab ua kom cov ntaub ntawv kom paub tseeb tias cov ntaub ntawv uas ntws tau zoo ntawm lawv. Tus qauv no yog paub txog nws txoj kev ntseeg tau, tab sis zoo li cov thev naus laus zis, nws tuaj yeem muaj teeb meem thaum siv hauv cov chaw muaj kev lag luam tawv. Hauv cov blog no, peb yuav saib cov teeb meem ntau nrog lub simatic 6es7155 {9} 66 {}- 0dn0 thiab qib zuj zus los kho lawv. Txawm hais tias koj tau siv cov qauv no lossis tau ua haujlwm nrog nws ib pliag, cov lus qhia no yuav pab koj ua kom koj lub tshuab ua kom zoo thiab txo qis qis.
Cov teeb meem kev sib txuas nrog simatic 6es7155-6au00-0dn0
Ib qho ntawm feem ntau cov neeg siv lub ntsej muag nquag yog cov teeb meem txuas nrog lub simatic 6es7155-6au00-0dn0. Cov teeb meem no tuaj yeem nres cov ntaub ntawv los ntawm kev txav mus los ntawm cov khoom siv, qeeb qeeb lossis txawm tias halting ntau lawm. Cia peb ua txhaum rau cov tseem ceeb thiab yuav daws lawv li cas.
Ethernet cable teeb meem
Lub Ethernet tsis zoo cable feem ntau yog qhov ua rau muaj kev sib txuas nrog lub simatic 6es7155 {5} {6}- 0dn0. Ethernet Cables nyob rau hauv cov chaw muaj kev lag luam tuaj yeem raug puas los ntawm kev raug rho tawm, rub, lossis raug cov roj, dej kub. Yog tias lub cable yog puas li cas-}} kev txiav me me hauv cov txheej txheem sab hauv-lossis tsis muab ntsaws rau hauv kom yog, tus qauv tsis tuaj yeem txuas rau lub network. Txhawm rau tshuaj xyuas, ua ntej, nco ntsoov lub cable tau ntxig rau hauv ob qho tib si no7155-6au00-0dnet chaw nres nkoj thiab chaw nres tsheb. Koj yuav tsum tau hnov "nyem" thaum nws tau txuas nrog. Yog tias qhov ntawd tsis ua haujlwm, tshawb xyuas lub cable rau pom kev puas tsuaj xws li cov kab nrib pleb, kinks, lossis bent pins nyob rau hauv cov txuas. Yog tias koj pom kev puas tsuaj, sim sib txawv ntawm ib qho cable-nyiam dua ib qho rated rau kev siv, vim cov no ntau ruaj khov. Cable tshiab tuaj yeem kho cov simatic 6es7155-6aux ece00-0dn0 kev txuas sai sai. Txog kev paub tseeb ntxiv, siv cov neeg siv cable ntxiv los kuaj seb cov cable tuaj yeem xa cov ntaub ntawv kom raug.
IP chaw nyob tsis sib haum
Lwm qhov teeb meem tshwm sim yog qhov teeb meem IP address. Txhua lub cuab yeej ntawm lub network xav tau tus xov tooj tshwj xeeb, thiab simatic 6es7155 {66 6}} 0dn0 yog tsis muaj kev zam. Yog tias muaj lwm yam khoom siv - Xws li ib lub khoos phis tawm, lwm tus plc, lossis ib qho IP-{muaj tib tus ip chaw nyob li lub simatic 6es7155-6/00-0dn0, peb tsis tau txuas mus rau qhov tsim nyog. Koj yuav pom cov tsos mob zoo li tus qauv tshwm "Offline" hauv TIA portal lossis cov ntaub ntawv tsis hloov kho. Txhawm rau kom daws tau qhov no, tshawb xyuas tus IP chaw nyob ntawm simatic 6es7155-6au00-0dn0 siv software, mus kuaj "qauv los saib nws tus IP tam sim no. Tom qab ntawd, khij lub IP cov khoom siv ntawm lwm cov khoom siv ntawm cov cuab yeej siv xws li "Idconfig" (ntawm Windows) lossis "arp -A" kom pom tias ib qho kev sib tw. Yog tias muaj kev tsis sib haum xeeb, hloov tus IP chaw nyob ntawm simatic 6es7155-6au00-0dn0 rau ib qho tshwj xeeb. Txhawm rau ua qhov no hauv Tia Portal, mus rau Module cov khoom, nrhiav tau cov khoom siv tshiab (piv txwv li cov khoom siv tshiab)
Yuam kev lis dej num thiab lawv cov kev daws teeb meem rau simatic 6es7155-6au00-0dn0
Lub simatic 6es7155-6au00-0dn0 muaj LED teeb ntawm nws cov teeb tsa ntawm pem hauv ntej uas qhia cov kab yuam kev, ua rau nws yooj yim dua rau qhov tsis raug. Cia peb kawm txog qee qhov tshwm sim thiab yuav kho lawv li cas.
Yuam kev code sf (system ua txhaum)
SF yuam kev -}}}}}} {- ... txhais tau tias muaj kev txhaum lub cev. Qhov no tuaj yeem yog qhov teeb meem nrog tus qauv nws tus kheej, teeb meem software, lossis txawm sab nraud zoo li kub heev. Ua ntej, tshuaj xyuas yog tias tus qauv yog tsim nyog rau ntawm lub tsheb ciav hlau. Loos mounting tuaj yeem ua rau cov khoom siv hluav taws xob tsis zoo, ua rau qhov yuam kev. Nco ntsoov tias cov clips nyob sab nraum qab ntawm lub simatic 6es7155 {{{{} 66dn0 yog tag nrho cov xauv mus rau txoj kev tsheb ciav hlau. Tom ntej no, khij cov software teeb tsa hauv Tia portal. Qhib koj qhov project, mus rau Module txoj kev teeb tsa, thiab ua kom txhua qhov chaw zoo li profentic-phim cov cai ntawm simatic 6es7155-6au00-0dn0. Piv txwv li, yog tias koj ntxiv IP / O Module mus rau lub kaw lus tab sis tsis hloov kho qhov teeb meem, qhov no tuaj yeem ua rau SF yuam kev. Yog tias qhov yuam kev cuam tshuam, tshawb xyuas cov qauv ntsuas kub. Nws yuav tsum ua haujlwm ntawm 0℃thiab 60℃(32℃F thiab 140℃f). Yog tias nws kub dhau, txav nws mus deb ntawm cov khoom siv cua sov zoo li lub peev hluav taws xob lossis cua sov, lossis txhim kho qhov cua. Yog tias tsis muaj ib qho ntawm cov haujlwm no, sim rov ua dua tus qauv los ntawm kev tig tawm lub zog, tos 30 vib nas this, thiab tig rov qab rau-qhov no tuaj yeem hloov kho ib ntus.
Yuam kev code bf (chaw tos npav)
A BF yuam kev -}}} {{{{{1} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19} {19}- Qhov no tej zaum yog vim yog lub npav tawg cable, xoob kev sib txuas, lossis teeb meem nrog cov cuab yeej sib txuas (zoo li lub sensor faulty). Pib los ntawm kev kuaj xyuas txhua lub tsheb npav thauj mus rau kev puas tsuaj rau kev txiav, khaus, lossis dej puas tsuaj. Tsis tas li, kos tias txhua lub conn connectors nruj; Ib qho kev sib txuas sib txuas yuav ua rau kev sib txuas lus sib txuas lus sib tham. Tom ntej no, khij lub tsheb thauj mus los. Profinint network feem ntau siv cov neeg tiv thaiv no nyob rau thaum xaus ntawm lub npav kom txo cov kev cuam tshuam ntawm kev cuam tshuam rau cov cim. Yog hais tias ib tug resistor yog ploj los yog puas, nws tuaj yeem ua rau BF yuam kev. Saib rau ib qho hloov me me ntawm cov khoom siv kawg (zoo li tus qauv kawg hauv cov saw hlau) thiab nco ntsoov tias nws tau teeb tsa rau "kom nws ua kom lub resistor. Tom qab ntawd, Disconnect txhua lub cuab yeej txuas nrog rau lub simatic 6es7155-6au00-0dn0 ib qho los ntawm ib pliag tom qab txhua qhov kev txiav txim siab mus saib seb BF yuam kev. Yog tias nws ua thaum muaj qee yam cuab yeej tau raug txiav tawm, cov cuab yeej ntawd yuav ua rau muaj teeb meem. Koj tuaj yeem sim cov cuab yeej tsis muaj cuab yeej los ntawm txuas nws mus rau qhov chaw nres nkoj sib txawv lossis hloov nws nrog tus paub ua haujlwm ib qho kom paub meej.
Kev sib xyaw thiab cov teeb meem firmware ntawm simatic 6es7155-6au00-0dn0
Siv lub simatic 6es7155-6au00-0dn0 nrog lwm cov khoom siv lossis cov khoom siv fartware tuaj yeem ua rau cov teeb meem xws li kev sib txuas lus qeeb lossis kev sib tsoo qeeb. Cia saib yuav ua li cas lis cov no.
Sib sau nrog lwm cov khoom siv simatic
Lub simatic 6es7155 {{4 4}} 66 4}}-}}}}}}}}}}}}}}}}}}} Piv txwv li, yog tias koj siv tus laus sim plc zoo li s7-300 nrog ib qho kev tawm tswv yim uas tsis muaj hnub nyoog nrog lub simatic 6es7155-66. Txhawm rau zam qhov no, tshawb xyuas cov ntaub ntawv cov khoom rau ob qho tib si sim 12155-6au00-0dn0 thiab koj lwm yam khoom siv. Koj tuaj yeem pom cov npe sau ua ke ntawm Chemens siemens lub vev xaib nyob rau hauv "Kev Txhawb Nqa" Nrhiav "Simatic 6S7155-6DN0 Compatibility" txhawm rau nrhiav cov kab kos tshiab. Cov npe no qhia cov qauv PLC no, I / O Modules, thiab software versions ua haujlwm nrog tus qauv. Yog tias koj cov khoom siv tsis sib haum, koj yuav tau hloov kho cov firmware ntawm lwm cov khoom siv (zoo li PLC) siv TIA portal. Hloov pauv, yog tias hloov tshiab tsis yog ua tau, siv tus qauv sib txawv uas tau teev nrog Simatic 6S7155-6au00-0dn0-piv txwv, S7-1500 PLCS feem ntau yog ib qho kev sib tw.
Firmware hloov cov teeb meem hloov tshiab
Hloov kho cov firmware ntawm simatic 6es7155- 66 yog qhov tseem ceeb rau kev ua tau zoo, kev ruaj ntseg, thiab sib xws nrog cov khoom siv tshiab. Tab sis hloov tshiab qee zaum tuaj yeem mus tsis ncaj ncees lawm, tawm hauv cov qauv tsis lees paub. Txhawm rau zam qhov no, ua raws cov kauj ruam no: Ua ntej, rov qab koj txoj haujlwm tam sim no hauv kev sau cia, yog li koj tuaj yeem kho nws yog tias qhov hloov tshiab tsis ua tiav. Tom qab ntawd, ua kom cov khoom siv hluav taws xob yog qhov ruaj khov thaum hloov tshiab. Siv cov UPS (tsis muaj kev pheej hmoo ntawm lub zog txiav, vim muaj kev puas tsuaj ntawm lub zog tuaj yeem ua rau lub teeb meem. Tsis txhob tua lub simatic 6es7155- 6666 lossis disconnect nws los ntawm lub network thaum hloov pauv cov firmware. Txhawm rau pib hloov tshiab, Qhib TIA portal, mus rau "online> Xaiv lub sim firmware, thiab xaiv cov ntaub ntawv firmware firmware (rub tawm ntawm Siemens lub vev xaib). Ua raws li cov lus qhia on-screen, thiab tos qhov hloov tshiab kom tiav-qhov no tuaj yeem siv sijhawm 5-10 feeb. Yog tias qhov hloov tshiab tsis ua tiav, tsis txhob ntshai: Rov qab cov ntaub ntawv firmware, nco ntsoov tias nws yog rau tus qauv 6S7155-0dn0 qauv), thiab sim dua. Qhov no tuaj yeem kho qhov teeb meem nrog simatic 6es7155-6au00-0dn0.
Hwj Chim -} Cov teeb meem ntsig txog ntawm Simatic 6ES7155-6au00-0dn0
Yog tsis muaj lub zog kom tsim nyog, lub simatic 6es7155-6au00-0dN0 tsis tuaj yeem ua haujlwm kom raug. Cov teeb meem fais fab yog yooj yim rau kev saib xyuas tab sis feem ntau nrawm nrawm los kho.
Tsis muaj zog fais fab
Lub simatic 6es7155 {4 4}} 66 4 {{}}}}}}} ib txwm muaj 24v dc. Yog tias lub zog tsawg dhau (hauv qab 20v) lossis hloov pauv ntau, tus qauv yuav kaw, rov pib dua, lossis qhia cov cai yuam kev zoo li SF. Txhawm rau kuaj, siv ntau ntau los ntsuas qhov hluav taws xob ntawm lub module lub zog txuas. Txuas cov multimeter pultes rau qhov zoo (+) thiab tsis zoo ({30}}}}}}}} Yog tias tus voltage tsis yog lawm, kos lub zog hluav taws xob (PSU) uas txau lub simatic 6ES7 33}}- 0dn0. PSU yuav tsum tau tshaj tawm rau tam sim no (Amps) rau lub zog cov qauv thiab txhua yam sib txuas. Piv txwv li, yog tias lub simatic 6es7155-6au00-0dn0 siv 0.5a thiab txuas nrog 0.5a thiab Psu yuav tsum muab tsawg kawg 1.5A (ntxiv rau me ntsis ntxiv rau kev nyab xeeb). Yog tias PSU yog overloaded, nws tsis tuaj yeem muab voltage txaus. Unplug tsis yog cov khoom siv uas tseem ceeb lossis hloov PSU nrog lub peev xwm siab dua ib. Tsis tas li, nco ntsoov tias tsis muaj lwm yam kev kos ntau lub zog los ntawm tib cov khoom siv uas muaj cov khoom siv thiab cov khoom siv hluav taws xob muaj peev xwm ua rau hluav taws xob tawm thaum lawv pib. Yog tias ua tau, txuas cov khoom siv hluav taws xob heev rau ib qho cais PSU kom lub simatic 6es7155-6au00-0dn0 lub hwj chim ruaj khov.
Fais fab txuas yuam
A loose or damaged power connector can also cause power issues with the SIMATIC 6ES7155-6AU00-0DN0. Lub txuas txuas rau ntawm module hauv qab muaj pins uas tuaj yeem tau txais khoov lossis qias neeg lub sijhawm, tshwj xeeb yog cov qauv yog nquag sib txuas. Txhawm rau tshuaj xyuas, tua lub zog, tom qab ntawd maj mam rub lub txuas ntxiv mus saib seb nws puas xoob {} Yog tias nws yooj yim heev, nws tsis txuas kom yooj yim. Thawb nws khov kom txog thaum nws nyem rau hauv qhov chaw. Tom qab ntawd, tshuaj xyuas cov ntawv pins sab hauv lub txuas rau cov av, xeb, lossis khoov. Yog tias lawv qias neeg, ntxuav lawv nrog daim ntaub qhuav los yog txhuam me ntsis {19} Tsis txhob siv cov kua dej lossis ntxuav dej. Yog tias tus lej PIN yog khoov duav, ua tib zoo ncaj nws nrog cov ntswj me me (ua siab mos kom tsis txhob tawg nws). Yog tias lub tshuab txuas tawg lossis cov pins tau tawg, hloov nws nrog ib qho tshiab-koj tuaj yeem yuav hloov cov twj txuas los ntawm Siemens lossis cov khoom siv hluav taws xob. Qhov kev txhim kho yooj yim no tuaj yeem nquag tau lub simatic 6es7155-6au00-0dn0 ua haujlwm dua. Tom qab kho cov txuas, tig lub zog rov qab thiab kuaj yog tias tus module lub zog coj (feem ntau ntsuab) teeb tsa-qhov no txhais tau tias nws tau txais lub zog.
Cov ntsiab lus ntawm kev daws teeb meem rau simatic 6es7155-6au00-0dn0
TusSimatic 6es7155-6au00-0DN0Yog lub zog sib zog ua qauv, tab sis nws tuaj yeem ntsib cov teeb meem hauv cov teeb meem kev sib txuas rau cov cim yuam kev, kev sib xyaw Snumbs, thiab cov teeb meem snumbs, thiab teeb meem snumbs, thiab teeb meem snumbs, thiab cov teeb meem muaj hwj chim. Los ntawm kev daws cov teeb meem no systematically, koj tuaj yeem txo qis downtime thiab ua kom koj lub tshuab automation ua tau zoo.
Pib nrog cov hauv paus thaum daws teeb meem: khij ethernet cables thiab fais fab kev sib txuas rau kev puas tsuaj lossis kev ua txhaum cai no. Rau cov lis dej num yuam kev zoo li SF lossis BF, siv cov qauv coj los qhia koj cov tshev mis los coj koj cov tshev nyiaj, software teeb tsa, thiab cov khoom siv npav. Thaum cuam tshuam nrog kev sib raug zoo, xa mus rau Siemens 'official sau npe kom ntseeg tau tias koj cov khoom siv ua haujlwm nrog lub simtic 6S7155-6au00-0dn0, thiab ua kom firmware hloov pauv tia portal nrog cov kev ceev faj.
Nco ntsoov, siv cov software uas muaj kev nyab xeeb, thiab ua raws li kev nyab xeeb (zoo li lub zog ruaj ntseg (zoo li lub zog ruaj khov (zoo li lub zog ruaj khov thaum hloov kho) yuav pab tswj lub simatic 6es7155-6au00-0dn0 kev ua tau zoo. Nrog rau cov tswv yim no, koj tuaj yeem daws feem ntau cov teeb meem sai thiab ua kom koj cov kev lag luam network ua haujlwm zoo.
