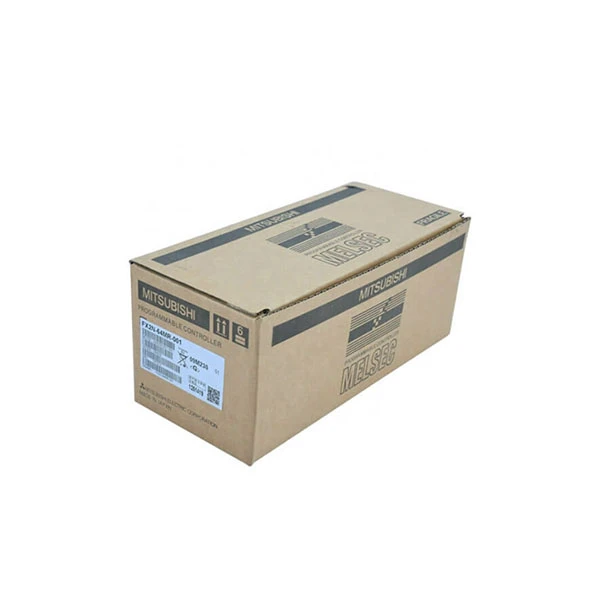

Tom ntej: Mitsubishi FX2N-64MT-001

Hom Tshuaj:Mitsubishi
Qauv:Tus Qauv Zauv: FX2N-64MT-001

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

Mitsubishi FX2N-64MT-001 yog lub siab-kev ua tau zoo programmable logic controller (PLC) los ntawm Mitsubishi's MELSEC-F FX2N tsev neeg. Mitsubishi FX2N-64MT-001 muaj 64 I/O cov ntsiab lus, suav nrog 32 inputs thiab 32 outputs. Cov ntsiab lus nkag yog DC 24V sinking hom, nrog lub sij hawm teb ntawm kwv yees li 10ms, thiab tuaj yeem yooj yim txuas rau cov sensors xws li photoelectric keyboards thiab sib thooj keyboards. Mitsubishi FX2N-64MT-001 muaj NPN sinking transistor tso zis, uas yog zoo tagnrho rau high-frequency switching ua hauj lwm vim tsis muaj mechanical hu thiab tsawg hnav. Nws tsuas yog txhawb nqa DC 24V loads, nrog rau qhov siab tshaj plaws tam sim no ntawm 0.5A ib qhov chaw tso zis thiab tag nrho cov khoom thauj tam sim no tsis pub ntau tshaj 8A, tso cai rau nws siv zog me me relays thiab servo tsav tsheb teeb liab terminals.

Mitsubishi FX2N-64MT-001 muaj AC 100 ~ 240V fais fab mov uas sib haum nrog cov khoom siv fais fab hauv ntau lub teb chaws thiab cheeb tsam, tso cai rau kev ua haujlwm yooj yim dua. Nws muaj 8000 cov kauj ruam ntawm built-in RAM, uas tej zaum yuav nce mus rau 16000 kauj ruam ntawm lub thawv cia yog tias tsim nyog. Mitsubishi FX2N-64MT-001 processor muaj 27 cov lus qhia yooj yim thiab 132 daim ntawv qhia cov lus qhia, nrog rau cov lus qhia yooj yim ua tiav ceev ntawm 0.08μs ib kauj ruam, haum rau feem ntau cov ntawv thov. Nws kuj suav nrog 256 timers, 256 lub txee, thiab 2048 cov ntaub ntawv sau npe, tso cai rau kev yooj yim lej lej thiab kev tswj xyuas logic.

Mitsubishi FX2N-64MT-001 muaj qhov nthuav dav zoo thiab tuaj yeem txuas rau txhua qhov FX2N series extension module, nrog rau qhov siab tshaj plaws I / O point ntawm 256. Nws los nrog RS-422 programming interface raws li tus qauv, thiab koj tuaj yeem ntxiv daim npav sib txuas lus los tswj MODBUS thiab lwm yam kev cai, tso cai rau cov ntaub ntawv pauv nrog zaus hloov pauv thiab cov khoos phis tawj sab saud. Mitsubishi FX2N-64MT-001 muaj cov txheej txheem txhim kho yooj yim thiab tuaj yeem muab tso rau ntawm DIN rails lossis panels. Nws loj yog kwv yees li 220 × 90 × 86mm thiab hnyav ib ncig ntawm 1.0kg, ua kom yooj yim rau nruab rau hauv qhov chaw tsawg.

Specifications

Qauv	Tus Qauv Zauv: FX2N-64MT-001
Hom	Transistor Output Hom PLC Base Unit
Fais fab mov	AC 100 ~ 240V (50/60Hz)
Kev faib tawm I/O	64 pkt
Input Yam ntxwv	DC 24V dab dej input
Cov yam ntxwv tso zis	NPN Sink Transistor tso zis
Muaj peev xwm nthuav dav	Tau tshaj FX2N tag nrho series expansion modules
Txoj Kev Txhim Kho	DIN Rail Mounting / Vaj Huam Sib Luag Mounting

Cov kev ceev faj

Ua ntej thiab qhov tseem ceeb tshaj plaws, nco ntsoov tias Mitsubishi FX2N-64MT-001 muaj transistor tso zis uas tsuas yog txhawb nqa DC 24V loads thiab tsis tuaj yeem tsav AC loads ncaj qha. Yog tias koj xav tswj AC cov cuab yeej siv Mitsubishi FX2N-64MT-001, koj yuav tsum txuas lub AC contactor lossis cov khoom hauv lub xeev relay (SSR) sab nraud kom tsis txhob ua mob rau PLC. Tsis tas li ntawd, Mitsubishi FX2N-64MT-001 muaj qhov siab tshaj plaws tam sim no ntawm 0.5A thiab tag nrho cov kev txwv tam sim no ntawm 8A. Thaum siv Mitsubishi FX2N-64MT-001 los tsav DC loads siab tam sim no, siv cov khoom siv sab nraud los tiv thaiv PLC cov khoom siv hluav taws xob.

Qhov thib ob, nws tseem ceeb heev uas yuav tsum nco ntsoov tias Mitsubishi FX2N-64MT-001 tau raug txiav lawm, thiab cov qauv ua tiav yog Mitsubishi FX3U-64MT/ES-A. Cov qauv hloov ua tau zoo dua, muaj peev xwm loj dua, thiab muaj qhov nthuav dav ntau dua li Mitsubishi FX2N-64MT-001. Yog tias koj xav hloov Mitsubishi FX2N-64MT-001 rau kev txhim kho cov cuab yeej tshiab, xav txog FX3U-64MT / ES-A qauv. Txawm li cas los xij, Mitsubishi FX2N-64MT-001 tseem niaj hnub siv hauv kev tu cov cuab yeej qub, thiab nws cov khoom siv tau yooj yim, yog li koj tuaj yeem siv txuas ntxiv rau kev tu txhua hnub ntawm cov cuab yeej uas twb muaj lawm.

FAQ

Q: Kuv yuav ua li cas rau Mitsubishi FX2N-64MT-001? Kuv puas tuaj yeem siv software niaj hnub?

A: Lub FX2N-64MT-001 tau programmed nrog Mitsubishi GX Developer lossis FX yav dhau los-PCS/WIN-E software. Thaum GX Developer tseem muaj nyob rau ntawm lub Windows PCs tshiab (feem ntau xav tau hom kev sib raug zoo), Mitsubishi qhov kev sib koom ua ke software platform tam sim no yog GX Works2 thiab GX Works. 3. GX Works2 muaj cov cuab yeej tsiv teb tsaws uas tuaj yeem hloov pauv FX2N cov haujlwm, tso cai rau koj khaws thiab kho cov kev pab cuam keeb kwm hauv ib puag ncig niaj hnub ntau dua-qhov tseem ceeb rau kev saib xyuas thiab PLC.

Q: Puas yog Mitsubishi FX2N-64MT-001 tseem raug tsim lossis muag li tshiab?

A: Tsis yog. Mitsubishi Electric tau txiav txim siab ua tiav Mitsubishi FX2N PLC kab. Nws tsis yog nyob rau hauv ntau lawm. Ib qho tshiab rau kev muag khoom yuav zoo li New Old Stock (NOS) los ntawm tus muag khoom cov khoom seem seem. Lub lag luam tseem ceeb rau cov cuab yeej no yog tam sim no kho dua tshiab lossis siv PLCs, uas yog siv rau kev kho, kho, thiab kev ua haujlwm (MRO) ntawm cov cuab yeej qub qub qub.
