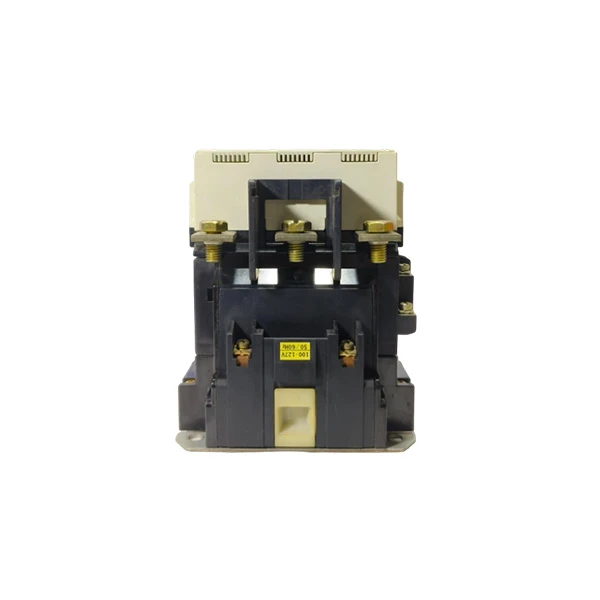

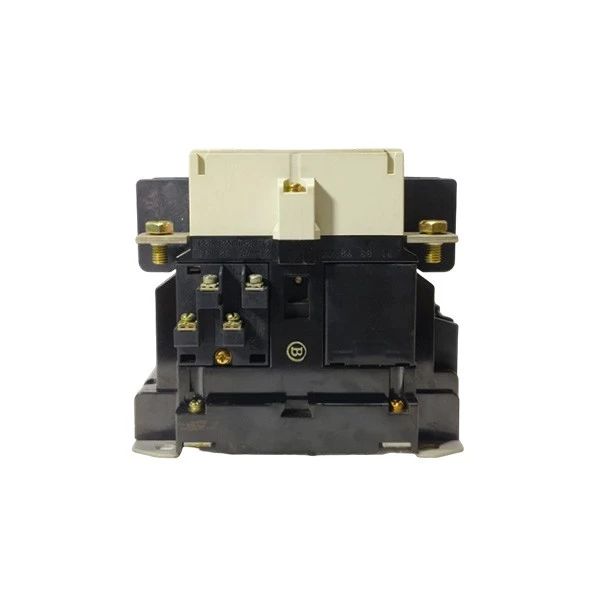

Mitsubishi S -N150
Hom Tshuaj:Mitsubishi
Qauv:S-N150
Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.
Khoom nta
Mitsubishi S-N150 yog ib qho kev cia siab tsis yog- thim rov qab sib nqus contactor los ntawm Mitsubishi Electric's MS-N series, tsim tshwj xeeb rau kev ncaj qha rau - kab (DOL) tswj peb -theem tawb motors. Raws li 3-ncej kev lag luam contactor nrog 150A rated tam sim no, Mitsubishi S-N150 ua tau zoo nyob rau hauv ntau hom kev lag luam thiab ua tau raws li cov qauv thoob ntiaj teb xws li UL, IEC, thiab CCC. Nws yog tsim los tswj cov qib voltage ntau, suav nrog 380-440V AC, thiab tuaj yeem txhawb nqa txog li 75kW ntawm lub zog ntsuas hauv AC-3 daim ntawv thov, ua rau Mitsubishi S-N150 yog qhov kev xaiv zoo tshaj plaws rau kev ua haujlwm hnyav ntawm lub cev muaj zog.
Mitsubishi S-N150, uas los ntawm cov qauv nrog ob qhov ib txwm kaw (NC) thiab ob qho tib si qhib (NO) pab tiv tauj, ua rau kom yooj yim ntawm kev tswj Circuit Court hauv cov chaw tsim khoom, lub tshuab hluav taws xob, thiab lwm yam lag luam. Nws ntiav cov neeg kho tshuab lub log sib txuas rau kev xaim yooj yim thiab qhov chaw mounting, ua rau kom ceev thiab teeb meem -dawb installation. Qhov txawv ntawm Mitsubishi S-N150 yog nws qhov tshwj xeeb ruaj khov: nws tuaj yeem muaj sia nyob mus txog 15 lab kev ua haujlwm thiab 1 lab hluav taws xob ua haujlwm rau AC-3 daim ntawv thov, muab kev ua haujlwm zoo ib yam txawm tias siv hnyav.
Mitsubishi S-N150's control coil muab ntau qhov kev xaiv hluav taws xob, suav nrog 100V AC, 200V AC, thiab 240V AC, kom tau raws li ntau yam kev xav tau ntawm cov khoom siv hluav taws xob. Ib qho ua tau - nyob rau hauv surge absorber tiv thaiv lub kauj thiab tswj Circuit Court los ntawm voltage spikes, yog li ua kom muaj kev ruaj ntseg ua hauj lwm. Qhov no Mitsubishi S-N150 magnetic contactor yog qhov zoo tagnrho rau siv los ua UPS input/output contactor, txij nkawm bypass contactor, lossis hauv lub tshuab tswj lub cev muaj zog rau cov twj thiab cov kiv cua.
Specifications
|
Qauv |
S-N150 |
|---|---|
|
Series |
MS-N Series |
|
Tus naj npawb ntawm tus ncej |
3 Puab (3P) |
|
Pab neeg sib cuag |
2 Nquag Qhib (NO) + 2 Nquag Kaw (NC) |
|
Rated ua haujlwm voltage (Ue) |
690V AC ua |
|
Input transient zog |
270 VAJ |
|
Input zog nruam |
24 VAJ |
|
Coil surge suppression |
Ua - nyob rau hauv surge absorber |
Cov kev ceev faj
Ua raws li cov lus qhia tseem ceeb no thaum txhim kho thiab ua haujlwm ntawm Mitsubishi S-N150 magnetic contactor kom ntseeg tau tias muaj kev nyab xeeb, ua haujlwm ntev, thiab ua haujlwm zoo ib yam. Ua ntej, tso Mitsubishi S-N150 nyob rau hauv qhov chaw qhuav, huv si nrog qhov kub thiab txias li ntawm -10 degree txog +40℃. Tsis txhob muab tso rau hauv cov cheeb tsam uas muaj cov av noo siab, plua plav, lossis corrosive gasses, vim tias cov no tuaj yeem ua rau cov khoom siv sab hauv thiab ua rau nws tsis zoo. Mitsubishi S-N150 yog tsim los rau saum npoo; xyuas kom meej tias qhov chaw teeb tsa yog ruaj khov thiab tiaj tus kom tsis txhob muaj kev vibrations thaum lub sijhawm ua haujlwm, uas tuaj yeem xoob xaim lossis cov khoom puas.
Ua ntej txuas cov xov hlau, xyuas kom tseeb tias qhov hluav taws xob muab hluav taws xob sib npaug ntawm cov kauj hluav taws xob ntawm Mitsubishi S-N150; Cov muaj peev xwm nrov yog 100V AC, 200V AC, thiab 240V AC. Kev siv cov hluav taws xob tsis raug yuav hlawv lub kauj lossis ua rau lub contactor tsis ua haujlwm. Rau kev xaim, siv cov cuab yeej txuas txuas thiab ceev cov terminals kom tsis txhob muaj kev sib cuag tsis zoo, uas tuaj yeem ua rau overheating lossis hluav taws xob tsis ua haujlwm. Tsis txhob tshaj Mitsubishi S-N150's rated muaj peev xwm: rau AC-3 daim ntawv thov, nws muaj peev xwm lis txog li 75kW ntawm 380-440V AC thiab 150A rated tam sim no. Overloading tus contactor txo nws cov kev pab cuam lub neej thiab ua rau kom muaj feem ntawm malfunction.
Yuav tsum muaj kev saib xyuas tsis tu ncua rau Mitsubishi S-N150. Txheeb xyuas qhov qhib (NO) thiab feem ntau kaw (NC) kev sib txuas rau kev hnav thiab oxidation tsis tu ncua. Yog hais tias muaj av buildup ntawm cov neeg, ua tib zoo ntxuav lawv. Yog tias lawv hnav hnyav heev, hloov lawv. Mitsubishi S-N150's ua- nyob rau hauv surge absorber tiv thaiv lub kauj thiab tswj Circuit Court; Txawm li cas los xij, tsis txhob disassemble lossis hloov kho cov khoom no yam tsis muaj kev pab cuam. Thaum muab cov Mitsubishi S-N150 nrog lub thermal overload relay, xaiv MS{11}}T series kom pom kev sib raug zoo, vim qhov no tsim kom muaj kev tiv thaiv lub cev muaj zog tag nrho.
