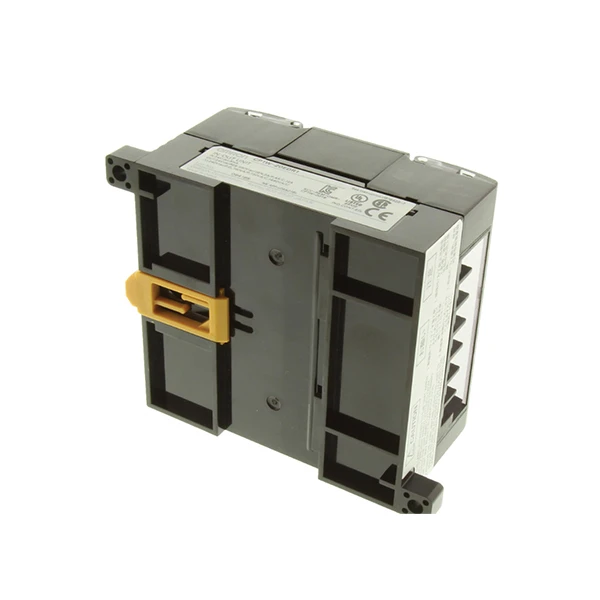

OMRON CP1W-20EDR1
Hom:Ntawv TEB
Qauv:CP1W-20EDR1
Cov lus nug:Cov khoom muaj nyob hauv Tshuag.
Khoom nta
OMRON CP1W - 20edr1 yog ib tug siab plc expension module tsim los ntawm Omron, ib qho zoo {} paub hom hauv kev lag luam automation. Cov qauv no yog tsim los ua haujlwm tshwj xeeb nrog OMRON CPS, uas tau siv cov khoom lag luam me me thiab cov khoom siv tseem ceeb ntawm OMRON CP1W-20EDR1. Nws nta 12 digital tawm tswv yim thiab 8 digital zis ports. Cov ports no tso cai rau cov qauv txuas rau ntau cov khoom siv muaj; Piv txwv li, cov chaw nres nkoj nkag tuaj yeem txuas rau cov khoom siv uas kuaj pom cov khoom me me lossis cov khoom siv tawm hauv cov khoom siv lossis cov khoom siv sib dhos me me.
Lub OMRON CP1W-20EDR1 yog yooj yim rau nruab, uas yog qhov zoo tagnrho rau cov neeg ua haujlwm hauv kev lag luam. Txuas nws mus rau CP1 Series PLC tsis tas yuav muaj cov cuab yeej sib txawv. Cias ua raws li cov kauj ruam hauv OMROR cov neeg siv phau ntawv qhia kom tau nws teem sijhawm sai. Qhov no txuag lub sijhawm thaum tsim tsev lossis kho tshuab tshuab. Tsis tas li ntawd, cov Omron CP1W-20edr1 ua haujlwm ntawm cov khoom siv hluav taws xob raug, ua rau nws feem ntau ntawm cov tshuab hluav taws xob tsis muaj qhov xav tau rau lwm yam.
Lub omron cp1w-20edr1 kuj muaj cov divability zoo heev. Nws tuaj yeem ua haujlwm hauv qhov kub ntawm 0 Qib rau 55 degree, uas yog cov ntsuas kub uas raug rau hauv kev tsim khoom. Nws tseem tiv taus cov plua plav me me thiab lub teeb kev co, yog li nws yuav tsis tso tseg ua haujlwm sai. Qhov uas tsis muaj peev xwm pab cov chaw ua haujlwm kom txhob tshuab poob sijhawm thiab ua kom ntau lawm ua kom yooj yim.
Cov lus qhia
|
Input / Tso Tawm Suav |
12 inputs + 8 tawm |
|---|---|
|
Cov Hom |
PNPN tau tshaj tawm (tog los yog so rourcing tuaj yeem siv) |
|
Kev tawm tswv yim voltage ntau |
20,4 - 26.4 V DC |
|
Tawm tswv yim qeeb |
0 - 32 MS (Kho tau) |
|
Tawm Tam Sim No |
2 Ib lub channel (rau cov khoom siv tawm) |
|
Tsim Tawm Hom |
Relay tso zis (tsis muaj ib txwm qhib kev sib cuag) |
|
Cov paib qhia ntawv |
DC 24 V teeb liab (Tau tshaj nrog cov qauv muaj sensors) |
|
Qhov loj me (W × h × d) |
{{0 {}} hli × 90 hli × 50 hli |
Cov kev ceev faj
Ua ntej, teeb tsa OMRON CP1W-20EDR1 hauv qhov chaw tsim nyog. Qhov ntsuas kub yuav tsum nyob nruab nrab ntawm 0℃thiab 55℃(32℃F thiab 131 Qib F), thiab cov av noo yuav tsum yog 35% mus rau 85% kom zam dhau hws. Zam txhob muab plua plav nrog cov plua plav ntau dhau, kev cai ua kom lub hnub ci, vim tias cov no tuaj yeem ua rau lub hnub qub Piv txwv li, hmoov av ntau dhau tuaj yeem txhaws qhov module tus vents, ua rau muaj kev kub ntxhov.
Thib ob, ib txwm txiav lub hwj chim ua ntej txuas rau omron cp1w- 20edr1. Tsis txhob kov cov wiring terminals thaum lub zog tig mus, vim qhov no tuaj yeem ua rau muaj hluav taws xob lossis cov qauv tawg. Siv qhov tseeb xaim hluav taws xob (raws li tau teev nyob hauv Omron cov lus qhia rau CP1W-20edr1) thiab xyuas kom meej tias txhua qhov sib txuas yog nruj. Cov xov hlau xoob yuav ua rau muaj kev txhaum cai, ua rau Omron CP1W-20edr1 xa cov cim tsis raug. Tsis tas li, tsis txhob rov qab cov lus qhia thiab tso zis polarities - Qhov no yuav hlawv sai sai ntawm OMRON CP1W-20EDR1.
Qhov thib peb, xyuas kom meej ua ntej txuas rau omron cp1w- 20edr1 rau tus tswv tsev PLC. Tus qauv no tau tshaj nrog Omron CP1H thiab CP1L tsev neeg PLCS. Tsis txhob txuas nws mus rau lwm qhov yuam kev plc qauv; Qhov no yuav tiv thaiv Omron CP1W-20edr1 ntawm kev ua haujlwm txhua. Thaum tshem tawm lossis rov ua dua rau omron cp1w-20edr1, tua lub plc zog ua ntej. Yog tias koj ntsaws lossis tshem tawm nws thaum lub zog tig rau ("kub-ntsaws cov chaw nres tsheb thiab sab hauv.
