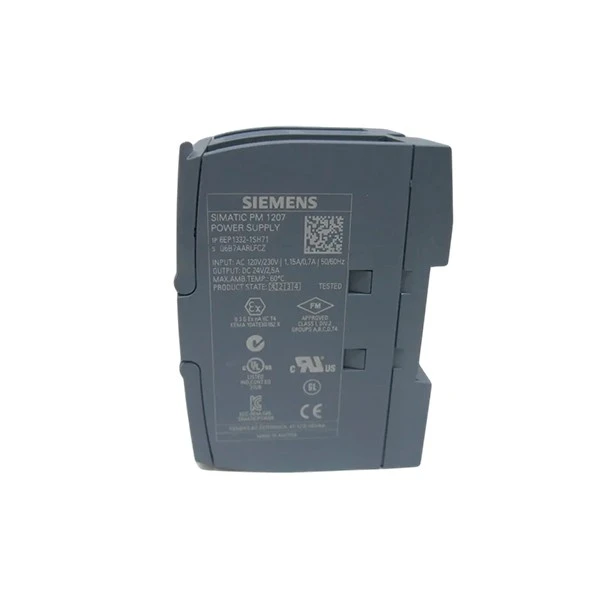

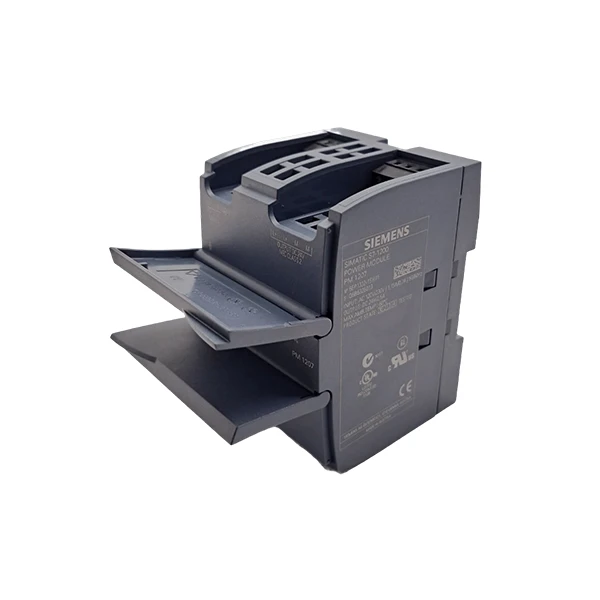

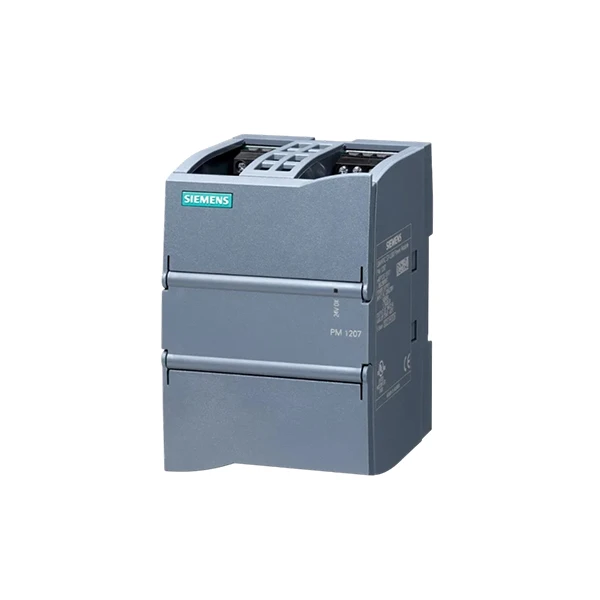

Siemens 6EP1332-1SH71

Hom Tshuaj:Siemens
Qauv:6EP1332-1SH71

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

Lub Siemens 6EP1332-1SH71, tseem hu ua SIMATIC S7-1200 PM1207, yog siab-kev ua tau zoo AC / DC fais fab module tsim feem ntau rau cov ntawv thov kev lag luam. Siemens 6EP1332-1SH71 ua rau muaj kev cia siab rau 24V DC cov zis nrog cov ntsuas tam sim no ntawm 2.5A, tag nrho 60W ntawm lub zog-zoo tagnrho rau kev siv hluav taws xob S7-1200 series PLCs thiab lwm yam khoom siv hluav taws xob tsawg. Ib qho ntawm nws lub zog tseem ceeb yog nws cov khoom siv hluav taws xob thoob ntiaj teb, uas tau hloov kho rau 85-132V AC lossis 176-264V AC, tso cai rau nws ua haujlwm tsis muaj zog hauv kev siv thoob ntiaj teb yam tsis tas yuav tsum muaj kev teeb tsa.

Kev ua tau zoo yog lwm qhov tseem ceeb ntawm Siemens 6EP1332-1SH71. Nrog rau 83% kev ntsuas kev ua tau zoo, nws txo qis hluav taws xob pov tseg thiab kev siv nyiaj ua haujlwm dhau sijhawm. Lub module kuj tseem muaj lub sijhawm ntev ntawm kev ua tsis tiav (MTBF) ntawm ntau dua 1.4 lab teev ntawm 40 degree, qhia nws qhov kev tsim kho zoo thiab kev ntseeg siab. Nws tau lees paub rau cov qauv thoob ntiaj teb xws li CE, UL, CSA, thiab UKCA, ua kom ntseeg tau tias kev ua raws li kev cai lij choj hauv kev lag luam loj.

Siemens 6EP1332-1SH71 yog qhov zoo rau cov ntawv thov kev lag luam automation thiab feem ntau siv rau hauv cov tshuab tswj, kev teeb tsa video, PoE keyboards, thiab kev sib txuas lus IP. Nws lub peev xwm los muab lub zog zoo ib yam hauv cov xwm txheej nyuaj ua rau nws yog ib qho kev txhim khu kev qha rau cov ntawv thov uas lub sijhawm poob qis. Txawm hais tias koj tab tom tsim ib qho tshiab S7-1200 PLC system lossis kho dua ib qho uas twb muaj lawm, Siemens 6EP1332-1SH71 fais fab module muab kev ua tau zoo, kev nyab xeeb, thiab yooj yim koj xav tau kom koj cov haujlwm khiav haujlwm.

Specifications

Qauv	6EP1332-1SH71
Khoom npe	SIMATIC S7-1200 Fais Fab Module PM1207
Yam khoom	Tib -theem tswj AC/DC fais fab module
Rated zog	60W (24V × 2.5A)
Rated Input Voltage	120V / 230V AC lub cev muaj zog
Input zaus	47-63Hz (tus qauv 50/60Hz)
Inrush tam sim no	Max 13A (ntawm 25 degree)
Qhov Loj (W × H × D)	70 × 100 × 75mm

Cov kev ceev faj

Ua ntej, muab qhov tseem ceeb rau kev txhim kho kom raug ntawm Siemens 6EP1332-1SH71. Mount lub module rau ntawm DIN rail (EN 60715 35 × 7.5/15) los yog phab ntsa-mount nws raws li qhia, tawm tsawg kawg 10 hli tshem tawm qhov cua. Siemens 6EP1332-1SH71 yuav tsum tsis txhob muab tso rau ze ntawm qhov chaw tshav kub los yog lub hnub ci ncaj qha vim nws qhov ntsuas kub ntawm 0℃rau +60℃. Tshaj qhov ntau qhov no tuaj yeem ua rau txo qis kev ua haujlwm lossis kev tiv thaiv kaw. Vim tias lub module muaj ntawv pov thawj IP20, khaws nws kom deb ntawm cov plua plav, dej txaws, thiab corrosive gasses kom tsis txhob muaj kev puas tsuaj sab hauv.

Txhawm rau txuas hluav taws xob xaim rau Siemens 6EP1332-1SH71, tsuas yog siv 0.5-2.5mm² cov xov hlau raws li kev pom zoo. Tightly ruaj ntseg terminals los tiv thaiv overheating los yog voltage dips. Ua ntej tig rau Siemens 6EP1332-1SH71, xyuas kom cov input voltage ua tau raws li lub module tsis siv neeg ntau yam (85-132V AC lossis 176-264V AC). Txuas qhov hluav taws xob sab nraud ntawm qhov ntau no tuaj yeem ua rau lub module puas tsuaj. Txhawm rau kom tsis txhob muaj kev cuam tshuam ntau dhau lossis kev tiv thaiv luv luv, tsis txhob overload lub module dhau nws 2.5A rated tam sim no; Hloov chaw, faib lub zog rau PLCs, sensors, lossis actuators raws li nws cov zis ntau tshaj 60W.

Ib puag ncig tej yam kev mob tseem ceeb rau Siemens 6EP1332-1SH71 qhov kev ua tau zoo. Txhawm rau tiv thaiv cov teeb meem ntsig txog kev ya raws, khiav lub module nyob rau hauv tej yam kev mob nrog ib tug txheeb ze humidity ntawm 5-95% (tsis muaj condensation). Txhawm rau them nyiaj rau cov cua txias qis dua, txo cov load los ntawm 1% rau txhua qhov ntxiv 100m thaum siv lub module ntawm qhov siab siab tshaj 2000m. Txhawm rau khaws lossis thauj Siemens 6EP1332-1SH71, khaws cia ntawm -40℃thiab +85℃thiab tiv thaiv nws los ntawm kev cuam tshuam lossis kev vibrations.

FAQ

Q: Siemens 6EP1332-1SH71 yog dab tsi, thiab nws cov ntsiab lus tseem ceeb yog dab tsi?

A: Lub 6EP1332-1SH71 yog 60W, DIN rail-mounted switching power supply (PSU). Nws lub luag haujlwm tseem ceeb yog hloov ntau yam ntawm kev hloov pauv tam sim no (AC) qhov hluav taws xob nkag mus rau hauv qhov chaw ruaj khov 24V DC tso zis.

Q: Siemens tshuab twg yog 6EP1332-1SH71 tau tshaj?

A: Qhov PSU no yog tsim los ua ib qho dav dav -lub hom phiaj 24V fais fab mov rau cov khoom tswj kev lag luam. Nws tau hais tshwj xeeb raws li tau sib xws nrog Siemens S7-1200 PLC system. Ib qho kev hloov pauv raws li hom no (6AG1332-1SH71-7AA0) kuj muaj rau SIPLUS S7-1200 series, uas yog npaj rau cov xwm txheej nyuaj nrog ntau qhov kub thiab txias. Nws zoo meej rau kev khiav PLCs, relays, sensors, thiab lwm yam 24V DC automation Cheebtsam.

Q: Kuv puas tuaj yeem txuas ntau 6EP1332-1SH71 units kom muaj zog ntau dua lossis rov ua dua?

A: Yog, SITOP PSU100L series muaj peev xwm sib npaug. Txhawm rau ua kom tag nrho cov zis tam sim no, txuas mus txog ob chav zoo sib xws nyob rau hauv parallel (piv txwv li, 5A load). Qhov no tseem ua rau kom yooj yim redundancy kev npaj, kom ntseeg tau tias muaj qhov system txawm tias ib qho hluav taws xob tsis ua haujlwm.

Cim npe nrov: Siemens 6ep1332-1sh71, Tuam Tshoj siemens 6ep1332-1sh71 lwm tus neeg
