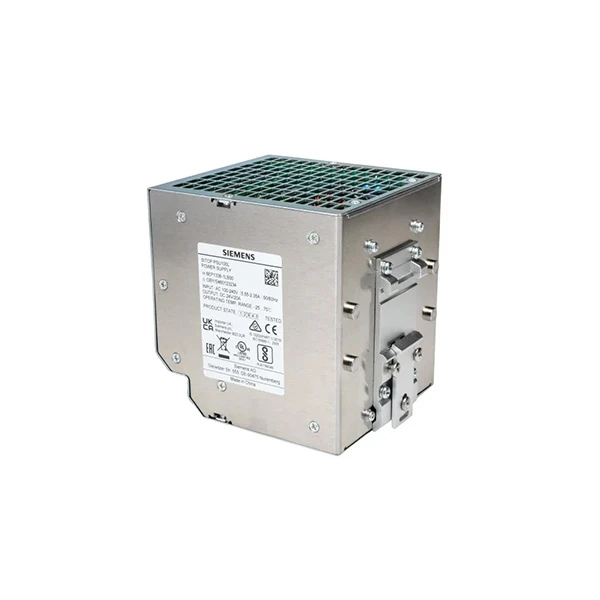

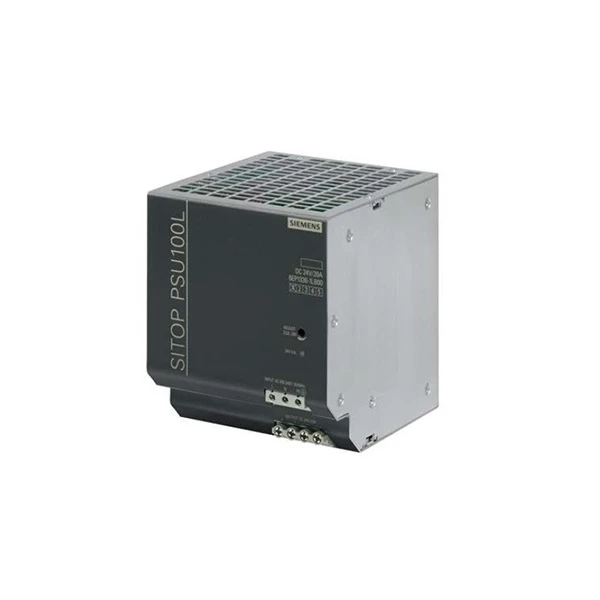

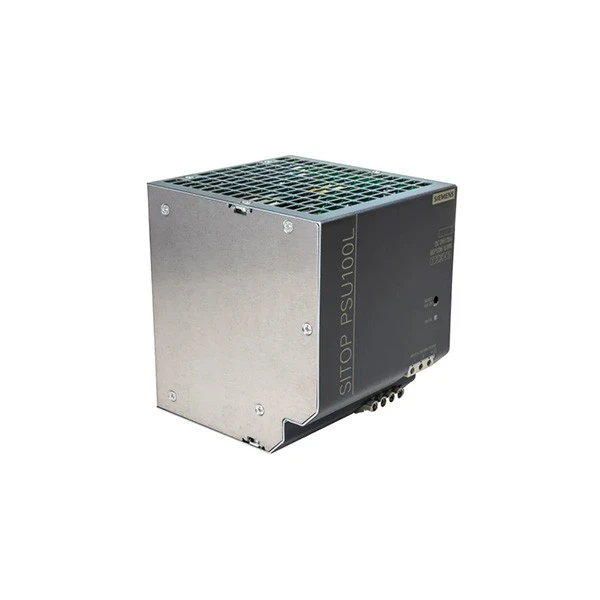

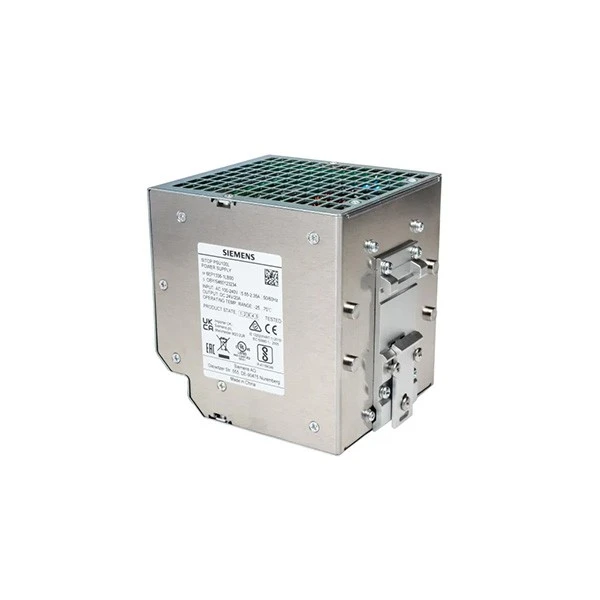

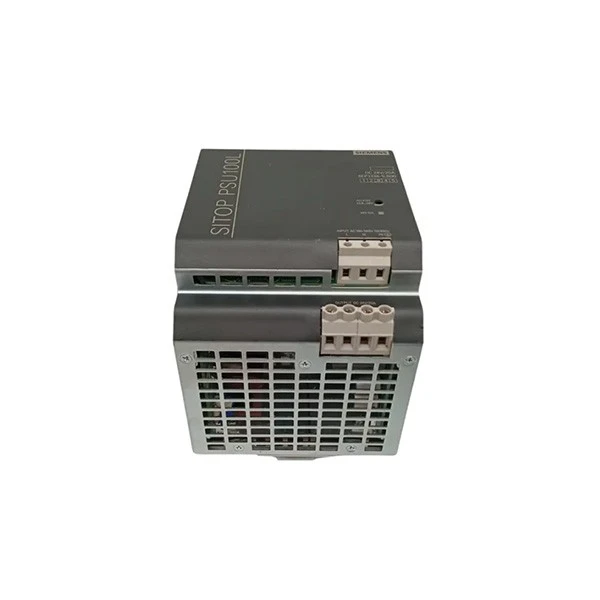

Siemens 6EP1336-1LB00

Hom Tshuaj:Siemens
Qauv:6 EP1336-1LB00

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

Siemens 6EP1336-1LB00 yog lub zog tswj hwm kev ruaj ntseg los ntawm SITOP PSU100L series uas tau tsim tshwj xeeb rau cov ntawv thov kev lag luam. Siemens 6EP1336-1LB00, uas muaj kev ua haujlwm siab ntawm 92% raws li kev ntsuas ntsuas, pab txhawb kev txuag hluav taws xob thiab txo cov cua sov. Nws siv natural convection kom txias, ua kom muaj kev ua haujlwm ntsiag to thiab kev saib xyuas yam tsawg kawg nkaus. Cov khoom siv hluav taws xob muaj qhov taw qhia ntsuab LED uas teeb pom kev thaum lub 24V tso zis ua haujlwm, tso cai rau cov neeg siv los tshawb xyuas nws qhov mob. Nws kuj tseem suav nrog cov peev txheej tiv thaiv xws li kev tiv thaiv luv luv (nrog rau kev txwv tam sim no ntawm 24A), kev tiv thaiv overvoltage (qis dua 33V), thiab kev tiv thaiv overload, uas ua kom muaj kev nyab xeeb ntawm ob lub cuab yeej thiab cov khoom siv txuas nrog.

Siemens 6EP1336-1LB00 muaj qhov tsim me me nrog qhov ntev ntawm 110mm × 125mm × 125mm thiab haum rau DIN rail txuas hauv cov khoom hluav taws xob (EN 60715 35 × 7.5/15). Nws yuav tsum tsis muaj lateral installation clearances thiab tsuas yog 50 hli ntawm qhov chaw nyob rau sab saum toj thiab hauv qab, uas yuav pab kom txuag tau qhov chaw nyob rau hauv packed tswj panels. Lub gadget txuas tau yooj yim siv cov ntsia hlau terminals uas haum rau cov cables xws li 0.5 txog 2.5mm².

Qhov kev lag luam fais fab no ua haujlwm zoo hauv qhov chaw tawv, khiav ntawm qhov kub ntawm -25℃mus rau 70℃(nrog rau derating pib ntawm 45 degree) thiab av noo theem ntawm 5% mus rau 95% yam tsis muaj condensation. Nws muaj daim ntawv pov thawj CE thiab cULus thiab ua tau raws li EMC nruj thiab cov qauv kev nyab xeeb rau kev lag luam. Tsis tas li ntawd, ob lub Siemens 6EP1336-1LB00 tuaj yeem txuas rau tib lub sijhawm los txhawb cov zis hluav taws xob raws li xav tau.

Specifications

Qauv	6 EP1336-1LB00
Khoom npe	SITOP PSU100L 24 V / 20 A Regulated Power Supply
Khoom Series	SITOP PSU 100L Series
Tswv yim	Ib qho -theem AC lossis DC muab
Tso zis	24 V dc
Rated zog	480 W (24 V × 20 A)
Kev ua tau zoo	92%
Rated Zaus	50/60 Hz

Daim ntawv thov scenarios

Siemens 6EP1336-1LB00 yog ntau yam 24V DC kev lag luam fais fab mov uas tau siv dav hauv ntau daim ntawv thov uas xav tau lub zog ruaj khov thiab txhim khu kev qha. Vim tias nws qhov hluav taws xob dav dav thiab cov yam ntxwv tiv thaiv zoo heev, nws yog ib qho tseem ceeb ntawm SITOP PSU100L series thiab zoo tagnrho rau kev lag luam automation kab. Siemens 6EP1336-1LB00 muab lub zog txuas ntxiv mus rau cov sensors, actuators, thiab servo motors hauv kev tsim khoom siv hluav taws xob xws li tsheb tsim, khoom siv hluav taws xob sib dhos, thiab cov khoom ntim khoom noj. Nws cov khoom tso tawm tas li thiab kev tiv thaiv overload kom ntseeg tau tias cov kab ntau lawm ua haujlwm zoo thiab tsis cuam tshuam los ntawm lub zog hloov pauv, ua rau nws muaj kev lag luam zoo tshaj plaws automation fais fab mov.

PLC tswj cov txee yog lwm cov ntaub ntawv thov rau Siemens 6EP1336-1LB00. Feem ntau cov kev tswj hwm kev lag luam siv PLC (Programmable Logic Controller) modules los tswj cov khoom siv, uas yuav tsum tau siv zog 24V DC. Nrog rau qhov ntsuas tam sim no ntawm 20A, Siemens 6EP1336-1LB00 tuaj yeem yooj yim muab ob peb PLC modules, cov khoom siv tawm tswv yim / tso tawm, thiab cov khoom sib txuas ib txhij. Nws DIN rail mounting configuration yog zoo heev rau kev tswj cov txee, txo qhov chaw thiab ua kom yooj yim installation. Qhov no ua rau nws muaj peev xwm txhim khu kev qha rau PLC tswj txee installation thiab txij nkawm.

Siemens 6EP1336-1LB00 kuj ua haujlwm zoo rau kev siv cov khoom siv ntse ntse. Nws muab lub zog zoo ib yam rau kev lag luam robots, cov ntsuas ntse ntse, thiab cov koob yees duab kev lag luam, uas feem ntau ua haujlwm hauv precision machining thiab nrhiav kom tau ntse. Cov khoom siv no muaj lub zog ruaj khov uas yuav tsum tau muaj zog, thiab Siemens 6EP1336-1LB00's ripple tsis tshua muaj zog thiab kev tswj xyuas qhov tseeb tuaj yeem pab tiv thaiv cov khoom siv los ntawm lub zog tsis ruaj khov. Tsis tas li ntawd, nws tuaj yeem txuas mus rau qhov sib npaug kom muaj lub zog ntau dua, ua kom txaus siab rau cov kev xav tau ntawm cov khoom siv ntse ntse loj.

FAQ

Q: Siemens 6EP1336-1LB00 yog dab tsi?

A: Lub Siemens 6EP1336-1LB00 yog SITOP PSU100L ib zaug-theem muaj fais fab mov npaj rau DIN rail installation. Nws hloov pauv ntau yam AC cov tswv yim rau hauv qhov ruaj khov 24V DC / 20A tso zis, xa mus txog 480W rau lub zog automation xws li PLCs, sensors, thiab relays.

Q: Dab tsi yog cov ncauj lus kom ntxaws thiab tso zis tshwj xeeb ntawm no DIN rail fais fab mov?

A: Cov khoom siv hluav taws xob muaj ntau qhov kev tawm tswv yim ntawm 100-240V AC (85-264V AC ua haujlwm ntau). Nws tsim cov kev tswj 24V DC tso zis, uas tuaj yeem hloov kho ntawm 22.8V thiab 26.4V ntawm lub potentiometer, nrog rau qhov tso zis ntau tshaj tam sim no ntawm 20A.

Q: Yuav ua li cas npaum li cas yog SITOP PSU100L 20A fais fab mov, thiab nws cov kev tiv thaiv tseem ceeb yog dab tsi?

A: Cov khoom siv hluav taws xob hloov pauv no muaj qhov ua tau zoo tshaj plaws ntawm 92%, txo lub zog poob thiab tsim hluav taws xob hauv lub txee tswj. Nws suav nrog kev tiv thaiv tiav, xws li luv luv - Circuit Court thiab overload tiv thaiv, nrog rau qhov tsis tu ncua - cov yam ntxwv ntawm cov zis tam sim no, txhawm rau ua kom muaj kev nyab xeeb.
