Siemens 6ES7131-7RF00-0AB0

Hom Tshuaj:Siemens
Qauv:6ES7131-7RF00-0AB0

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

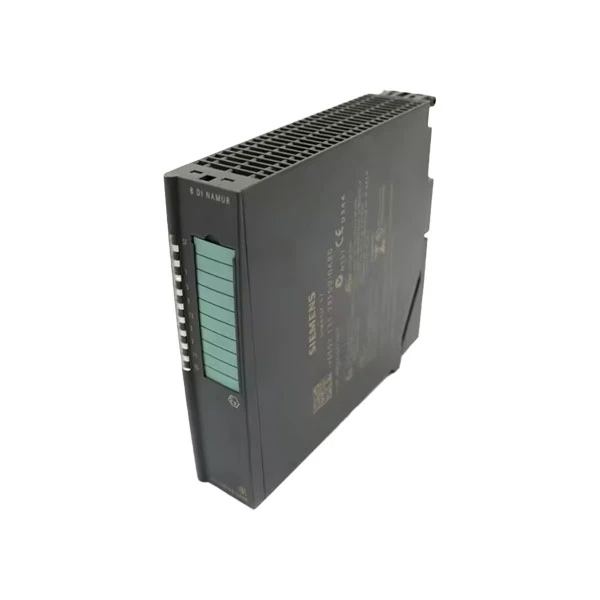

Siemens 6ES7131-7RF00-0AB0 yog ib qho kev txhim khu kev qha digital input module tsim los rau SIMATIC ET200iSP faib I / O system, uas yog ib qho tseem ceeb ntawm Siemens 'kev lag luam automation daws teeb meem. Raws li cov khoom lag luam nquag hauv Siemens 'portfolio, nws yog tsim los ua kom tiav cov kev xav tau nruj ntawm kev tsim khoom niaj hnub, tshwj xeeb tshaj yog nyob rau thaj chaw uas muaj kev nyab xeeb thiab qhov tseeb yog qhov tseem ceeb. Cov qauv no tsuas yog tsom rau cov tswv yim ua haujlwm, nrog 8 ywj pheej NAMUR cov kev tawm tswv yim digital uas ua raws li DIN 19234 tus qauv, ua rau nws zoo tagnrho rau kev sib txuas mus txog 8 NAMUR encoders lossis cov sensors zoo sib xws hauv cov tshuab ua haujlwm.

Siemens 6ES7131-7RF00-0AB0 yog qhov kev xaiv nrov hauv ntau qhov haujlwm vim nws qhov kev tsim kev nyab xeeb zoo. Nws muaj ntau daim ntawv pov thawj tawg, suav nrog Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, thiab Ex ib [ia] I Mb. Cov ntawv pov thawj no qhia tau hais tias nws tuaj yeem ua haujlwm nyab xeeb hauv qhov chaw muaj kev phom sij xws li cov chaw tsim tshuaj lom neeg, cov roj refineries, thiab cov chaw muag tshuaj uas muaj cov pa phem lossis plua plav tuaj yeem tshwm sim. Rau cov koom haum ua haujlwm hauv cov chaw muaj kev pheej hmoo siab, peb lub module daws teeb meem kev nyab xeeb loj thaum tswj kev ua haujlwm zoo ib yam.

Siemens 6ES7131-7RF00-0AB0 yog lub zog- ua haujlwm tau zoo thiab khiav ntawm 24V DC nominal mov (ntau ntawm 20.4V txog 28.8V DC), nrog rau qhov xav tau tam sim no ntawm 80 mA thiab qhov siab tshaj plaws ntawm 90 mA. Nws muab kev sib cais zoo heev ntawm nws cov channel thiab lub tsheb npav rov qab, kom ntseeg tau tias cov teeb liab sib kis tau zoo txawm tias muaj suab nrov hauv kev lag luam. Lub module nta ib qho luv luv input latency ntawm 2.8 mus rau 3.5 milliseconds rau ob qho tib si rau thiab tawm teeb liab hloov, tso cai rau cov tshuaj tiv thaiv sai rau cov ntaub ntawv sensor-qhov tseem ceeb rau kev tswj cov txheej txheem zoo. Nws kuj tso cai rau shielded cable ntev txog li 500 meters, ua rau nws haum rau loj-scale automation configurations.

Specifications

Qauv	6ES7131-7RF00-0AB0
Hom Module	8-Channel NAMUR Digital Input Module (DI 8xNAMUR)
Cov khoom siv hluav taws xob	24 V DC yoj
Kev tiv thaiv ntsuas	IP30
Txoj Kev Mounting	Girth rail mounting (DIN rail 35 hli)
Kev sib txuas lus Interface	PROFIBUS DP
Ua haujlwm kub	-25℃rau +60 degree
Qhov ntev	139 hli × 163 hli × 43 hli (W × H × D)

Cov kev ceev faj

Ua ntej, xav txog cov khoom siv hluav taws xob ntawm Siemens 6ES7131-7RF00-0AB0. Lub module ua haujlwm nrog DC lub zog hluav taws xob xws li 20.4V txog 28.8V, nrog rau qhov ntsuas hluav taws xob ntawm 24V DC. Tsis txhob txuas rau AC lossis DC fais fab mov sab nraud ntawm qhov no. Siv cov khoom siv hluav taws xob tsis raug yuav hlawv cov khoom sab hauv ntawm Siemens 6ES7131-7RF00-0AB0, ua rau nws ua haujlwm tsis tau. Nyob rau tib lub sijhawm, xyuas kom meej tias cov khoom siv hluav taws xob ruaj khov kom tsis txhob muaj qhov hloov pauv hluav taws xob uas ua rau lub module ua haujlwm tsis zoo.

Vim tias Siemens 6ES7131-7RF00-0AB0 muaj ntawv pov thawj tawg rau qhov chaw muaj kev phom sij, koj yuav tsum tshuaj xyuas qhov chaw ua haujlwm ua ntej siv. Nws tsim nyog rau qhov chaw uas xav tau Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, thiab Ex ib [ia] I Mb daim ntawv pov thawj. Tsis txhob siv Siemens 6ES7131-7RF00-0AB0 hauv thaj chaw muaj kev phom sij dhau ntawm nws daim ntawv pov thawj, vim qhov no yuav ua txhaum txoj cai lij choj thiab tuaj yeem ua rau muaj teeb meem loj xws li tawg lossis hluav taws kub.

Thaum txuas cov cables rau Siemens 6ES7131-7RF00-0AB0, siv cov kab thaiv thaiv thiab khaws cov cable ntev hauv qab 500 meters. Unshielded los yog ntev xov hlau yuav tsim teeb liab cuam tshuam, rendering cov ntaub ntawv input yuam kev. Tsis tas li ntawd, tshuaj xyuas cov cables tsis tu ncua rau kev puas tsuaj lossis xoob-tawg lossis xoob cables tuaj yeem ua rau luv luv lossis teeb liab poob, cuam tshuam kev ua haujlwm zoo ntawm Siemens 6ES7131-7RF00-0AB0 thiab tag nrho automation system.

FAQ

Q: Siemens 6ES7131-7RF00-0AB0 yog dab tsi, thiab nws lub luag haujlwm tseem ceeb yog dab tsi?

A: Ib qho hluav taws xob sub-module ntawm SIMATIC ET 200SP faib I/O system yog Siemens 6ES7131-7RF00-0AB0. Nws lub hom phiaj tseem ceeb yog cuam tshuam nrog NAMUR sensors, uas nquag siv hauv cov txheej txheem automation, raws li 8 DI NAMUR digital input module. Cov qauv no yog qhov tseem ceeb rau kev nyab xeeb kev siv thiab kev taug qab cov teeb liab los ntawm cov sensors hauv qhov chaw txaus ntshai lossis cov uas ua tau raws li NAMUR cov cai.

Q: Kuv yuav ua li cas koom ua ke 6ES7131-7RF00-0AB0 rau hauv kev tswj hwm?

A: Lub SIMATIC ET 200SP faib I / O system suav nrog 6ES7131-7RF00-0AB0 module. Lub hauv paus programmable logic controller (PLC), zoo li SIMATIC S7-1500 lossis S7-1200, txuas nrog rau qhov system ntawm Profinet. Lub module yog ntsia los ntawm snapping nws mus rau ib tug raug ET 200SP lub hauv paus chav tsev thiab teem nws nyob rau hauv lub engineering software Siemens TIA Portal (Tag nrho Integrated Automation Portal).

Q: Kuv tuaj yeem nrhiav tau phau ntawv qhia thiab cov ntaub ntawv nyob qhov twg rau 6ES7131-7RF00-0AB0?

A: Qhov chaw zoo tshaj plaws los nrhiav Siemens 6ES7131-7RF00-0AB0 phau ntawv qhia thiab cov ntaub ntawv cov khoom yog Siemens Txhawb Lub Vev Xaib lossis Siemens Industry Mall. Cov peev txheej no muab cov ntsiab lus nthuav dav ntawm cov kev qhia tshwj xeeb, ntawv pov thawj, kev xaim, kev nyab xeeb, thiab kev teeb tsa.
