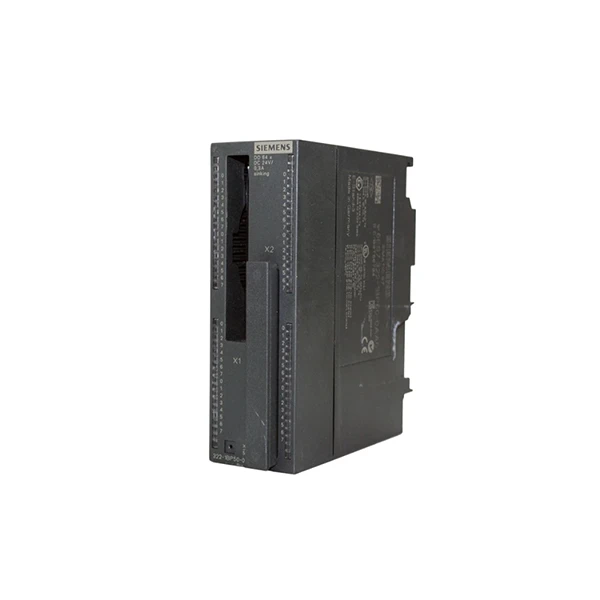

Siemens 6ES7322-1BP50-0AA0

Hom Tshuaj:Siemens
Qauv:6ES7322-1BP50-0AA0

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

Siemens 6ES7322-1BP50-0AA0 yog qhov zoo tshaj plaws digital tso zis module rau kev lag luam automation los ntawm Siemens 'SIMATIC S7-300 cov khoom lag luam. Siemens 6ES7322-1BP50-0AA0 ua haujlwm ntawm 24V DC lub zog (nrog rau qhov voltage ntawm 20.4V DC txog 28.8V DC) thiab muab kev ua haujlwm ruaj khov rau kev ua haujlwm ntev. Txhua qhov ntawm nws 64 cov txiaj ntsig digital tuaj yeem xa tawm qhov siab tshaj plaws tam sim no ntawm 0.3A, thiab lub module tau muab faib ua plaub pawg (16 qhov tso tawm txhua) nrog kev sib cais hluav taws xob ntawm lawv los tiv thaiv kev cuam tshuam thiab ua kom muaj kev nyab xeeb. Lub module tag nrho cov zis tam sim no yog 8A, thiab nws tsuas yog siv 6W ntawm lub zog, uas yuav pab txuag hluav taws xob hauv kev teeb tsa.

Ib qho ntawm qhov tseem ceeb tshaj plaws ntawm Siemens 6ES7322-1BP50-0AA0 yog nws tsim- hauv kev tiv thaiv kev ua haujlwm. Txhua qhov tso zis tawm muaj nws tus kheej luv luv - tiv thaiv Circuit Court, thiab lub module kuj muaj kev tiv thaiv overload, txo qhov txaus ntshai ntawm kev puas tsuaj los ntawm hluav taws xob tsis ua hauj lwm. Nws ntiav M-write thev naus laus zis, uas tso cai rau lub cim xeeb ncaj qha sau cov haujlwm rau kev tswj hwm kev kub ceev. Lub module ua tau zoo nrog ntau yam loads, nrog rau cov loads resistive txog li 100 Hz, inductive loads ntawm 0.5 Hz, thiab teeb loads ntawm 10 Hz.

Txhim kho thiab siv Siemens 6ES7322-1BP50-0AA0 yog qhov yooj yim. Compact qhov ntev (40 mm × 125 mm × 112 mm) thiab compatibility nrog cov pa DIN rails ua rau nws zoo tagnrho rau kev tswj txee. Lub module hnyav ib ncig ntawm 1 kg thiab muaj qib IP20 tiv thaiv, ua rau nws tsim nyog rau kev lag luam hauv tsev nrog qhov kub ntawm 0℃txog 60 degree. Nws txuas ntawm 40-pin pem hauv ntej connector (pom zoo lub davhlau ya nyob twg module: 6ES7392-1BN00-0AA0) thiab yog sib xws nrog ob leeg shielded (txog 1000 m) thiab unshielded cables (txog 600 m), muab wiring yooj.

Specifications

Qauv	6ES7322-1BP50-0AA0
Yam khoom	SIMATIC S7-300 SM 322 Series Digital Output Module
Hom tso zis	Sinking tso zis
Number of Outputs	64 Digital Outputs (DO)
Kev cais pab pawg	16 tso zis rau ib pab pawg
Rated Load voltage (L +)	24 V dc
Kev siv fais fab	6 W
Maximum tso zis tam sim no	2 A

Cov kev ceev faj

Thaum siv Siemens 6ES7322-1BP50-0AA0, ua cov kauj ruam tseem ceeb no los xyuas kom meej tias lub module muaj kev nyab xeeb, kev pab lub neej ntev, thiab kev ua tau zoo. Nco ntsoov tua lub hwj chim ua ntej txuas lossis txiav Siemens 6ES7322-1BP50-0AA0. Tsis txhob tuav lub module lossis nws cov connectors thaum lub hwj chim qhib, vim qhov no tuaj yeem ua rau hluav taws xob poob siab, module puas tsuaj, lossis raug mob rau cov khoom siv xws li solenoid li qub lossis contactors.

Siemens 6ES7322-1BP50-0AA0 yuav tsum tau muab tso rau ntawm lub tsheb ciav hlau DIN, raws li tau hais tseg. Xyuas kom meej tias lub mounting nto yog tiaj tiaj thiab qhuav, thiab tsis txhob tso lub module nyob ze ntawm qhov chaw ntawm kev co siab, huab cua kub, los yog electromagnetic cuam tshuam, xws li cov motors muaj zog los yog high-voltage nyob ntawm tej. Lub module IP20 tiv thaiv kev faib tawm txhais tau tias nws tsuas yog siv sab hauv tsev hauv cov txee tswj; ncaj qha ya raws, plua plav, lossis corrosive gasses yuav rhuav tshem nws cov khoom sab hauv.

Thaum ua kev sib txuas hluav taws xob, nruj me ntsis ua raws li qhov voltage thiab tam sim no txwv ntawm Siemens 6ES7322-1BP50-0AA0. Lub load voltage yuav tsum nyob nruab nrab ntawm 20.4V DC thiab 28.8V DC; dhau qhov ntau no tuaj yeem ua rau lub module hlawv tawm. Txhua qhov tso zis tawm tuaj yeem nqa qhov siab tshaj plaws tam sim no ntawm 0.3A, thiab txhua qhov ntawm 16 cov zis tawm tsis tuaj yeem tshaj 2A tag nrho. Tsis txhob txuas cov loads uas tshaj cov kev txwv no, vim qhov no yuav ua rau luv luv lossis overload tiv thaiv, nrog rau kev puas tsuaj mus tas li rau cov channel. Tsis tas li, xyuas kom cov xaim polarity yog qhov tseeb; inverting qhov zoo (L +) thiab tsis zoo (M) kev sib txuas tuaj yeem ua rau muaj teeb meem.

FAQ

Q: Siemens 6ES7322-1BP50-0AA0 yog dab tsi, thiab nws lub luag haujlwm tseem ceeb yog dab tsi?

A: Siemens 6ES7322-1BP50-0AA0 yog S7-300 digital output (DO) module. Nws yog ib qho tseem ceeb rau kev lag luam automation, ua qhov txuas ntawm Siemens S7-300 PLC lub hauv paus ua haujlwm (CPU) thiab cov actuators sab nraud. Nws lub luag haujlwm tseem ceeb yog los hloov PLC lub hauv paus logic signals (0/1) rau hauv lub cev, lub zog loj 24-volt DC hloov cov cim. Qhov no ua rau PLC tswj cov khoom siv xws li solenoid li qub, contactors, relays, taw qhia teeb, thiab lub cev muaj zog pib hauv kev tsim khoom lossis kev teeb tsa.

Q: Puas yog 6ES7322-1BP50-0AA0 tau tshaj kuv S7-300 PLC system?

A: Yog, 6ES7322-1BP50-0AA0 yog tsim los ua haujlwm seamlessly nrog Siemens SIMATIC S7-300 PLC system. Nws tuaj yeem txuas rau ntawm S7-300 tus qauv DIN rail thiab txuas mus rau lub tsheb npav rov qab. Koj yuav tsum xyuas kom meej tias koj lub S7-300 fais fab mov (PS) module muaj peev xwm muab tam sim no txaus rau lub hwj chim ob lub tsheb npav rov qab thiab 24V DC load voltage yuav tsum tau los ntawm no 32-point module. Ib txwm tshuaj xyuas cov chaw hauv Siemens STEP 7 programming software (TIA Portal) kom ntseeg tau tias muaj kev sib raug zoo thiab chaw nyob.
