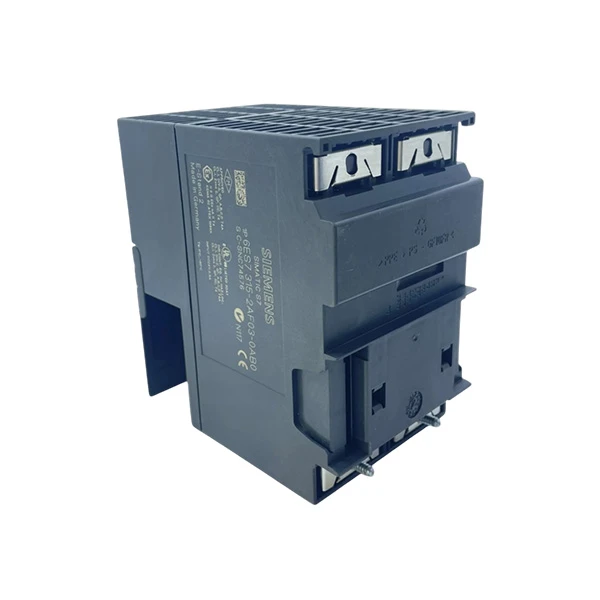

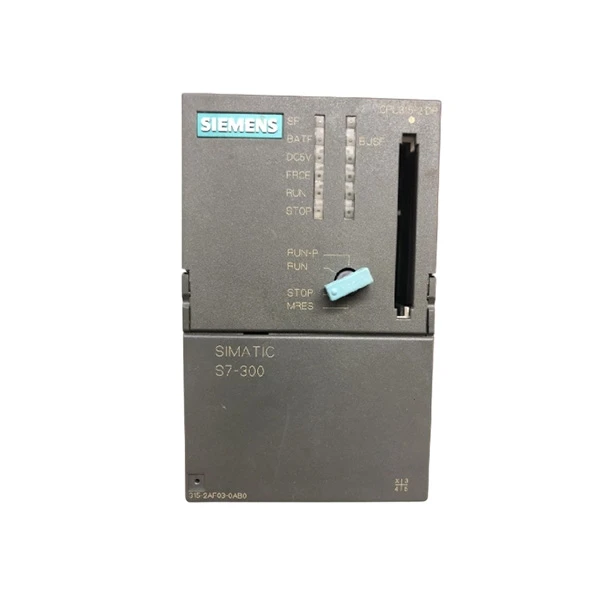

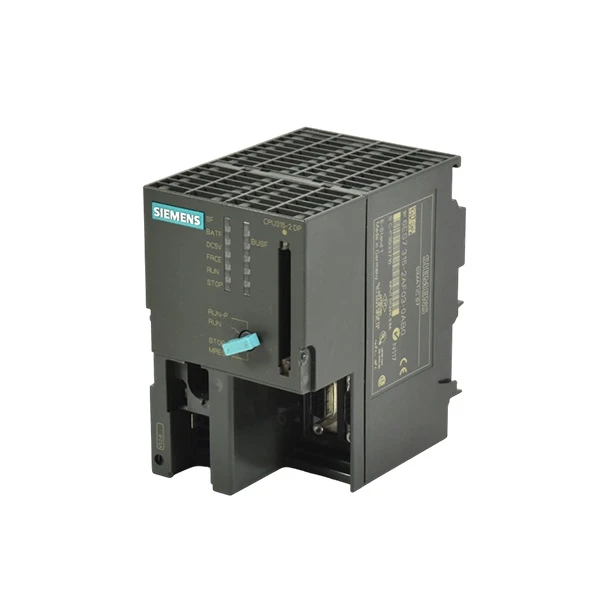

Siemens 6ES7315-2AF03-0AB0

Hom Tshuaj:Siemens
Qauv:6ES7315-2AF03-0AB0

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

Lub chaw ua haujlwm hauv nruab nrab (CPU) module los ntawm Siemens 'zoo-paub S7-300 tsev neeg yog 6ES7315-2AF03-0AB0. Ntawm cov khoom siv hluav taws xob ntau hauv tsev neeg no, Siemens 6ES7315-2AF03-0AB0 yog qhov kev xaiv zoo rau ntau lub tuam txhab. Cov haujlwm tseem ceeb rau nruab nrab automation ua haujlwm tuaj yeem ua haujlwm los ntawm Siemens 6ES7315-2AF03-0AB0. Kev lag luam me me thiab nruab nrab, xws li kev tswj hwm lub tshuab lossis cov kab ntau lawm, tau txais txiaj ntsig zoo los ntawm kev siv. Siemens 6ES7315-2AF03-0AB0 qhov ua tau zoo sib xws yog ib qho ntawm nws cov yam ntxwv tseem ceeb. Qhov kev ceev no ua kom yooj yim rau kev tswj xyuas lub tshuab kom zoo, tiv thaiv cov txheej txheem ua haujlwm ntawm kev nres lossis qeeb qeeb.

Tsis tas li ntawd, nws muaj lub cim xeeb ua haujlwm los tuav cov lus qhia thiab cov ntaub ntawv tseem ceeb. Tsis muaj cov ntaub ntawv tseem ceeb ploj thaum Siemens 6ES7315-2AF03-0AB0 ua haujlwm ua tsaug rau lub cim xeeb no. Nws MPI (Multi-Point Interface) chaw nres nkoj yog qhov tseem ceeb ntxiv. Siemens 6ES7315-2AF03-0AB0 tuaj yeem txuas nrog lwm cov khoom siv Siemens ntawm qhov chaw nres nkoj no, suav nrog S7-300 modules thiab HMIs (tib neeg-tshuab interfaces). Qhov no pab txhawb txoj kev loj hlob ntawm kev ua tiav automation system. Siemens 6ES7315-2AF03-0AB0 yog siv rau hauv ntau qhov chaw, suav nrog cov khw muag khoom me me, chaw ua zaub mov, thiab cov chaw tsim khoom los tswj cov kab sib dhos. Kev siv mus sij hawm ntev yuav tsum muaj peev xwm tiv taus hluav taws xob cuam tshuam me me thiab kho kom haum rau kev lag luam kub.

Specifications

Qauv	6ES7315-2AF03-0AB0
Lub npe	CPU 315-2 DP
Series	SIMATIC S7-300
Hom	Standard Controller
Qhov ntev	12cm × 11.3cm × 8.2cm (W × H × D)
Input voltage	24V DC (Kev tso cai ntau yam: 20.4V txog 28.8V)
Ua haujlwm kub	0℃txog 60℃(Standard)
Daim ntawv pov thawj	CE, UL, ATEX (yog muaj)

Cov kev ceev faj

Ua ntej, sau tseg ntawm Siemens 6ES7315-2AF03-0AB0 ib puag ncig kev teeb tsa. Txhim kho CPU module no ze rau qhov chaw ntawm kev co siab, zoo li cov motors loj, tsis tau qhia. Siemens 6ES7315-2AF03-0AB0 cov khoom siv sab hauv tuaj yeem xoob vim kev co, uas tuaj yeem ua rau ua haujlwm tsis zoo. Tsis tas li ntawd, cia nws deb ntawm thaj chaw uas muaj av noo siab (siab dua 95% yam tsis muaj condensation) lossis kub siab (siab tshaj 60 degree). Siemens 6ES7315-2AF03-0AB0 cov khoom siv hluav taws xob yuav raug mob los ntawm huab cua kub thiab av noo. Qhov no ua raws li cov lus qhia tseem ceeb rau Siemens 6ES7315-2AF03-0AB0 chaw ua haujlwm.

Thib ob, thaum xaim Siemens 6ES7315-2AF03-0AB0, ua raws li cov cai nruj nruj. Ua ntej txuas cables rau lub module, nco ntsoov tua lub hwj chim qhov chaw. Kev xaim thaum lub hwj chim qhib tuaj yeem ua rau cov hluav taws xob luv luv uas hlawv Siemens 6ES7315-2AF03-0AB0. Rau Siemens 6ES7315-2AF03-0AB0 thaiv, tsuas yog siv cov cables uas tau pom zoo los ntawm Siemens; Cov kab hluav taws xob tsis pom zoo yuav tsis haum thiab ua rau cov teeb liab tsis zoo. Xyuas kom tseeb tias tag nrho cov kev sib txuas yog nruj tom qab xaim; Cov xov hlau xoob tuaj yeem ua rau Siemens 6ES7315-2AF03-0AB0 nres ua haujlwm sai.

Thib peb, saib xyuas thaum tuav Siemens 6ES7315-2AF03-0AB0 cov ntaub ntawv thiab software teeb tsa. Qhov CPU module no yuav tsum tau programmed siv qhov tsim nyog Kauj Ruam 7 software version, xws li Kauj Ruam 7 V5.5 lossis tom qab, raws li Siemens qhia. Software versions uas tsis sib xws nrog Siemens 6ES7315-2AF03-0AB0 yuav tsis muaj peev xwm sib txuas lus. Ua ib qho thaub qab ntawm qhov kev pab cuam qub ua ntej rub tawm cov tshiab rau Siemens 6ES7315-2AF03-0AB0. Koj tuaj yeem rov qab tau qhov kev pab cuam dhau los los tiv thaiv kev poob qis yog tias qhov tshiab muaj qhov yuam kev. Qhov no yog ib qho tseem ceeb ntawm kev saib xyuas software rau Siemens 6ES7315-2AF03-0AB0.

FAQ

Q: Dab tsi yog Siemens 6ES7315-2AF03-0AB0?

A: A CPU 315-2 DP module los ntawm SIMATIC S7-300 programmable logic controller (PLC) series yog Siemens 6ES7315-2AF03-0AB0. Nrog nws cov kev sib koom ua ke PROFIBUS DP interface, qhov chaw ua haujlwm hauv nruab nrab-uas yog npaj rau kev lag luam automation systems- tuaj yeem ua haujlwm raws li tus tswv DP lossis qhev hauv kev faib I / O teeb tsa. Qhov kev ua tau zoo ntawm cov qauv no hauv kev tswj cov haujlwm tsis sib xws ntawm automation yog qhov paub zoo.

Q: Dab tsi yog PROFIBUS DP interface siv rau ntawm CPU no?

A: Kev sib xyaw ua ke PROFIBUS DP (Decentralized Peripherals) interface yog qhov tseem ceeb ntawm CPU 315-2 DP. Nws ua kom muaj kev sib txuas lus ceev nrog cov khoom siv I/O faib xws li ET200 chaw nres tsheb, tsav tsheb, thiab lwm yam twj paj nruag. Qhov no tso cai rau ib qho kev hloov pauv thiab hloov tau yooj yim automation system layout, qhov twg I / O cov khoom tuaj yeem muab tso rau ze rau cov tshuab uas lawv tswj, txo cov nqi xaim.

Q: Dab tsi software siv los ua haujlwm rau Siemens S7-300 CPU 315-2 DP?

A: Lub 6ES7315-2AF03-0AB0 yog programmed thiab teeb tsa siv Siemens 'STEP 7 software. Qhov tshwj xeeb version ntawm KAUJ RUAM 7 yuav tsum yog nyob ntawm lub hardware configuration thiab xyoo ntawm engineering. Lub module yog kev koom ua ke rau hauv qhov project los ntawm kev kho vajtse configuration nyob rau hauv lub software.
