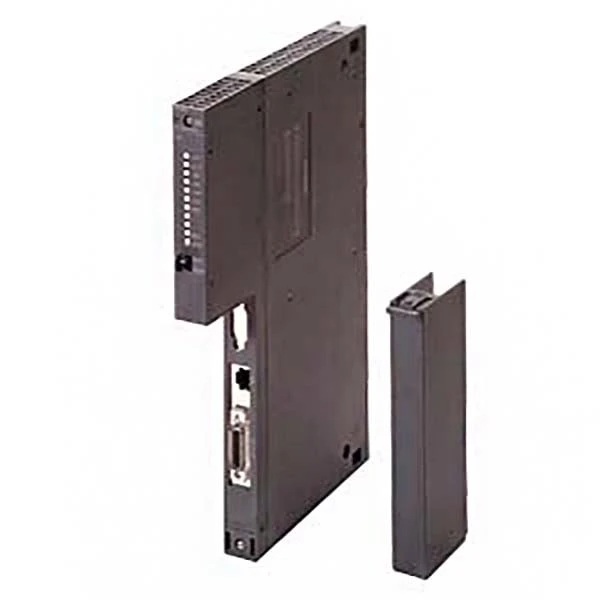

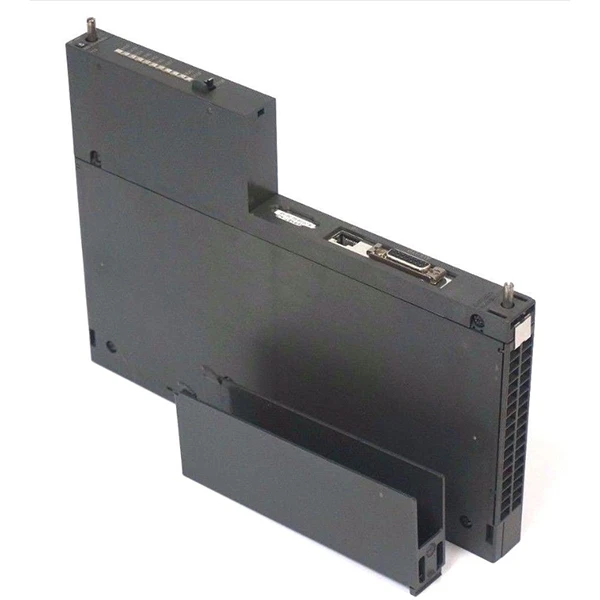

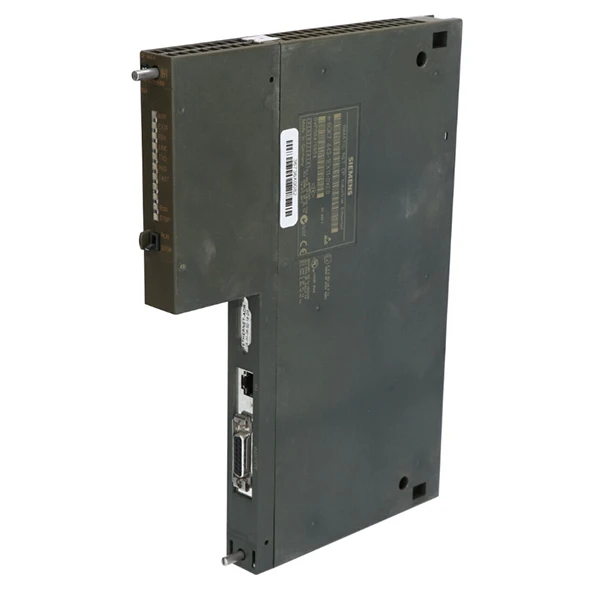

Siemens 6GK7443-1EX11-0XE0

Hom Tshuaj:Siemens
Qauv:6GK7443-1EX11-0XE0

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Daim ntawv thov scenarios

Hauv kev lag luam kev lag luam, 6GK7443-1EX11-0XE0 koom ua ke PLCs, HMIs, thiab cov neeg hlau los tsim cov kev sib koom ua ke tswj hwm. Nws txhawb nqa cov txheej txheem xws li PROFINET, TCP/IP, thiab S7 kev sib txuas lus, uas ua kom muaj kev sib koom cov ntaub ntawv tiag - lub sijhawm ntawm cov khoom siv. Piv txwv li, nws tuaj yeem xa cov ntaub ntawv tsim tawm los ntawm S7-400 PLC mus rau lub hauv paus saib xyuas, tso cai rau cov neeg ua haujlwm saib xyuas lub tshuab, hloov chaw nyob deb, thiab txuag lub sijhawm poob. Lub module lub dual-chaw nres nkoj Ethernet interface muab kev sib txuas tsis tu ncua, txo cov network tsis ua haujlwm hauv cov kab ntau lawm.

Rau kev faib hluav taws xob thiab hluav taws xob txuas ntxiv mus, qhov module no txuas cov tshuab hluav taws xob, cov tshuab hluav taws xob, thiab cov ntsuas ntsuas ntse mus rau lub hauv paus tswj hwm. Nws xa cov ntaub ntawv tiag tiag -lub sijhawm ntawm cov khoom siv hluav taws xob, kev siv, thiab kab sib chaws ruaj khov rau huab platforms lossis SCADA systems, tso cai rau kev saib xyuas kev kwv yees thiab kev faib cov peev txheej zoo. 6GK7443-1EX11-0XE0's rugged siv (ua haujlwm kub ntau: -25℃txog 60 degree) ua rau nws zoo tagnrho rau sab nraum zoov substations lossis cua ua liaj ua teb, qhov twg nws tuaj yeem zam huab cua hnyav thiab hluav taws xob nrov.

Hauv cov txheej txheem kev lag luam nyuaj, 6GK7443-1EX11-0XE0 module lav kev sib txuas lus zoo ntawm cov sensors, li qub, thiab cov tshuab tswj. Nws tso cai rau kev hloov cov ntaub ntawv ceev ceev rau cov ntawv thov tseem ceeb xws li kev saib xyuas lub sijhawm ntawm qhov kub, siab, thiab tshuaj lom neeg qib. Piv txwv li, nws tuaj yeem txuas lub S7-400 PLC rau cov cuab yeej tshuaj ntsuam xyuas hauv lub chaw kuaj tshuaj, xa cov ntaub ntawv ntsuas tseeb rau cov software tswj kom zoo. Lub module kev ruaj ntseg nta, suav nrog kev tiv thaiv tus password thiab cov ntaub ntawv encryption, tiv thaiv cov txheej txheem tseem ceeb ntawm kev tawm tsam cyber.

Warehouses ntiav 6GK7443-1EX11-0XE0 los txuas cov tsheb uas siv tau (AGVs), conveyor siv, thiab cov khoom siv hauv ib lub network. Nws tso cai rau AGVs tau txais cov kev hloov kho tshiab ntawm lub sijhawm tiag tiag los ntawm lub hauv paus PLC, thaum lub tshuab luam ntawv barcode xa cov ntaub ntawv pob mus rau lub tsev khaws khoom tswj software dhau Ethernet. Cov qauv kev txhawb nqa rau cov txheej txheem kev lag luam xws li EtherNet / IP lav kev sib raug zoo nrog ntau yam khoom siv, ua kom yooj yim rau kev teeb tsa thiab txo cov nqi kev koom ua ke. Nws qhov loj me me (40 mm × 120 mm × 125 mm) ua rau nws zoo tagnrho rau kev siv hauv automated cia systems nrog me me tswj vaj huam sib luag.

Specifications

S7 Kev sib txuas lus	Txhawb unilateral / ob tog programming (PUT / GET cov lus qhia)
Kev them nyiaj yug TCP/IP	Ntsuas kom ncav cuag 90 Mbps
Ntau tshaj qhov sib txuas	48 (TCP/UDP) + 16 S7 kev sib txuas (uas yuav tsum tau paub meej meej)
Hluav taws xob Standard	Ua raws li IEEE 802.3af
Qhov ntev	40mm × 120mm × 125mm (w × d × h)
Txoj Kev Txhim Kho	DIN rail (TS35), kev teeb tsa ncaj qha (UR1 / UR2 rov qab yuav tsum tau)
Ua haujlwm kub	-10℃rau +60 degree
Vibration Resistance	5-150Hz / 2g

Khoom nta

Lub 6GK7443-1EX11-0XE0 yog kev lag luam Ethernet kev sib txuas lus processor los ntawm Siemens ' SIMATIC S7-400 series. Qhov no Ethernet kev sib txuas lus processor, tsim tshwj xeeb rau S7-400 PLC, suav nrog PROFINET IRT thiab OPC UA TSN, tso cai rau 48 kev sib txuas sib txuas thiab kev sib txuas siab ntawm 90 Mbps, ua tau raws li qhov yuav tsum tau muaj kev sib hloov cov ntaub ntawv ceev hauv cov chaw tsim khoom ntse.

Hauv tsheb vuam cov kab ntau lawm, 6GK7443-1EX11-0XE0 muab PROFINET IRT synchronization precision nyob rau hauv millisecond range, ua kom xoom ncua kev hloov pauv ntawm kev sib koom tes vuam thiab kev soj ntsuam cov ntaub ntawv ntawm ntau cov neeg hlau. Cov txheej txheem muab kev sib txuas tsis sib haum nrog 48 cov khoom siv hauv online, xws li vuam phom PLCs, AGV teem sijhawm, thiab MES systems. Lub Siemens 6GK7443-1EX11-0XE0 yog CE, UL 61800, thiab CSA tau ntawv pov thawj, thiab nws ua tau raws li IEC 62443 kev lag luam cybersecurity yuav tsum, ntsib kev lag luam kev cai lij choj hauv EU, North America, thiab Asia-Pacific cheeb tsam.

Siemens 6GK7443-1EX11-0XE0 yog lub zog muaj zog kev sib txuas lus processor tsim los yooj yim kev koom ua ke rau hauv SIMATIC S7-400 automation systems. Raws li ib qho tseem ceeb Ethernet module rau PLCs, nws txuas cov khoom lag luam rau cov tes hauj lwm uas siv cov txheej txheem xws li ISO / TCP, IP, thiab UDP kom ruaj khov, ceev cov ntaub ntawv xa mus. Nws 10/100 Mbps adaptive Ethernet connectivity kom ntseeg tau kev ua tau zoo nyob rau hauv factories, fais fab nroj tsuag, thiab manufacturing daim ntaub ntawv.

Lub 6GK7443-1EX11-0XE0 yog tsim los rau kev lag luam robustness thiab los nyob rau hauv ib tug compact DIN rail mountable loj (40 hli × 120 hli × 125 hli), ua rau nws zoo tagnrho rau qhov chaw-constrained tswj panels. IP20-rated vaj tse tiv thaiv cov plua plav thiab lub teeb dej tawg, thiab qhov dav ntawm kev khiav hauj lwm kub (-25℃rau +60 degree) kom ntseeg tau tias muaj kev cia siab rau hauv ib puag ncig hnyav. Nws ua cov ntaub ntawv loj loj thauj khoom tau zoo vim nws 128 KB RAM thiab 64 KB flash nco, tso cai rau kev ua haujlwm tsis siv neeg ua haujlwm.

FAQ

Q: Siemens 6GK7443-1EX11-0XE0 yog dab tsi, thiab nws lub luag haujlwm tseem ceeb yog dab tsi?

A: Siemens 6GK7443-1EX11-0XE0 yog CP 443-1 kev sib txuas lus processor tsim los txuas SIMATIC S7-400 thiab S7-400H programmable logic controllers (PLCs) rau Industrial Ethernet tes hauj lwm. Lub module txhawb ISO / TCP / IP thiab UDP raws tu qauv, ua kom cov ntaub ntawv sib hloov pauv thoob plaws kev tswj hwm kev faib tawm. Cov haujlwm tseem ceeb suav nrog S7 kev sib txuas lus, nqa / sau ua haujlwm, kuaj xyuas txuas ntxiv, xa / tau txais nrog thiab tsis muaj RFC1006, multicast, thiab NTP rau lub sijhawm synchronization hla cov khoom siv sib txuas.

Q: Dab tsi yog cov ntsiab lus tseem ceeb ntawm 6GK7443-1EX11-0XE0?

A: 6GK7443-1EX11-0XE0 xa tus nqi xa tawm ntawm 10 mus rau 100 Mbit / s ntawm nws qhov 1st interface. Nws nta ib qho kev lag luam Ethernet interface nrog 15-pin Sub-D socket (txhawb 10 Mbit / s AUI thiab 10/100 Mbit / s ITP) lossis RJ45 chaw nres nkoj / AUI kev sib txuas xaiv. Lub hwj chim yog muab los ntawm lub tsheb npav rov qab ntawm 5V DC, nrog rau kev siv tam sim no ntawm 1.4A thiab lub zog poob ntawm 8.6W. Lub module yog compact S7-400 ib leeg-dav unit ntsuas 25mm nyob rau hauv dav, 290mm nyob rau hauv qhov siab, thiab 210mm nyob rau hauv qhov tob, nrog ib tug luj ntawm 0.7 kg. Txog li 14 units ntawm no module tuaj yeem ntsia tau rau ib CPU.

Q: Muaj pes tsawg qhov kev sib txuas puas txhawb nqa 6GK7443-1EX11-0XE0, thiab nws cov ntaub ntawv ntim li cas?

A: CP 443-1 txhawb nqa txog 64 qhov sib txuas tau rau kev sib txuas lus qhib los ntawm SEND / RECEIVE blocks. Rau S7 kev sib txuas lus, qhov siab tshaj plaws ntawm kev sib txuas tau yog 48. Hauv ntau hom- raws tu qauv, lub module tuav txog 64 kev sib txuas. Qhov siab tshaj plaws cov ntaub ntawv ntim rau ib tus neeg siv cov ntaub ntawv ntawm ISO, ISO-on-TCP, thiab TCP kev sib txuas yog 8 KiB (rau txhua hom kev sib txuas ntawm SEND / RECEIVE blocks), thaum UDP kev sib txuas txhawb siab tshaj 2 KiB ib tus neeg siv cov ntaub ntawv.

Q: Puas yog Siemens 6GK7443-1EX11-0XE0 txhawb nqa PROFINET IO maub los ua haujlwm?

A: Tsis yog. Lub 6GK7443-1EX11-0XE0 tsis txhawb kev ua haujlwm raws li PROFINET IO maub los. Qhov no yog qhov sib txawv tseem ceeb ntawm cov tshiab CP 443-1 variants xws li 6GK7443-1EX30-0XE0 thiab siab dua, uas suav nrog PROFINET IO maub los muaj peev xwm. Yog tias koj xav tau PROFINET IO maub los ua haujlwm rau koj qhov system S7-400, tus qauv txuas ntxiv 6GK7443-1EX30-0XE0 yuav tsum.

Q: Puas yog 6GK7443-1EX11-0XE0 txhawb Modbus TCP?

A: Yog lawm, lub module txhawb Modbus TCP hauv cov neeg siv khoom / server hom, ua kom muaj kev sib txuas lus nrog thib peb -Modbus pab kiag li lawm. Nws kuj txhawb TCP/IP (xws li TCP, UDP, thiab ISO- ntawm -TCP) thiab SNMP rau kev saib xyuas cov xwm txheej hauv network.
