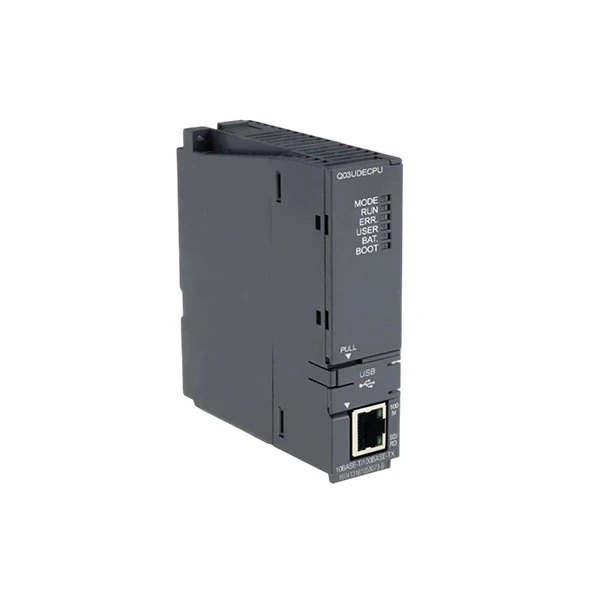

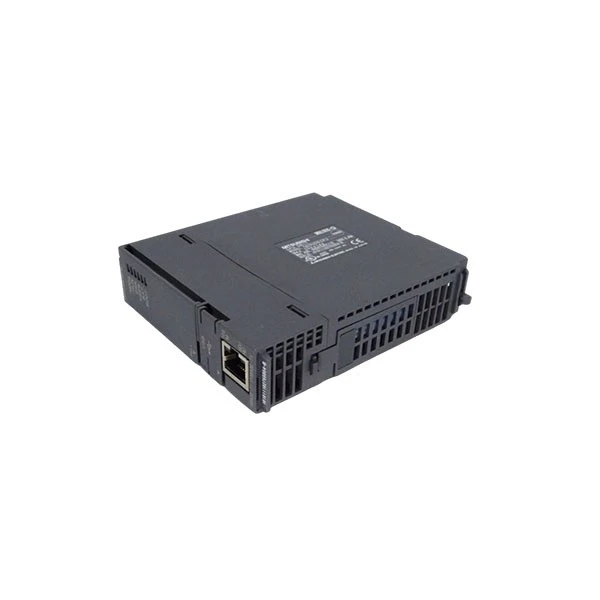

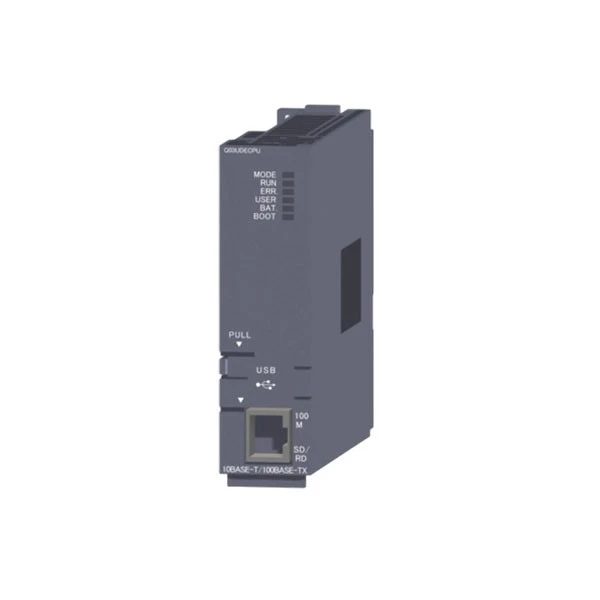

Mitsubishi Q03UDEECPU

Hom Tshuaj:Mitsubishi
Qauv:Q03 UAS

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

Mitsubishi Q03UDECPU yog ib qho dav dav - lub hom phiaj CPU chav tsev los ntawm Mitsubishi's MELSEC-Q tsev neeg, tsim tshwj xeeb rau me me thiab nruab nrab- qhov loj ntawm kev lag luam automation tswj tshuab. Ib qho tseem ceeb tshaj plaws ntawm Mitsubishi Q03UDECPU yog nws cov kev ua haujlwm siab. Nws tuaj yeem ua cov lus qhia LD hauv 20 nanoseconds thiab MOV cov lus qhia hauv 40 nanoseconds. Qhov ceev ceev no ua kom ntseeg tau tias lub tshuab automation ua haujlwm tau zoo thiab tsis muaj kev ncua, uas yog qhov tseem ceeb rau kev tswj hwm kev lag luam uas xav tau kev tawm tsam sai. Tsis tas li ntawd, Mitsubishi Q03UDECPU muaj peev xwm ntawm 30K cov kauj ruam, uas yog sib npaug rau 120K bytes. Lub peev xwm no muaj peev xwm txaus los tswj cov haujlwm tswj feem ntau hauv cov tshuab me me thiab nruab nrab automation, cia nws ua kom tiav cov kev xav tau ntawm feem coob ntawm cov neeg siv yam tsis muaj kev loj hlob ntxiv.

Mitsubishi Q03UDECPU tseem muab kev sib txuas lus ua haujlwm, uas yog qhov tseem ceeb rau cov tshuab me me thiab nruab nrab. Nws suav nrog ib qho RJ45 Ethernet txuas uas ua rau 100/10 Mbps cov ntaub ntawv xa mus thiab ib qho chaw nres nkoj USB rau kev ua haujlwm thiab cov ntaub ntawv hloov chaw. Cov kev sib tshuam no ua rau nws yooj yim rau cov engineers txuas CPU mus rau lwm yam khoom siv, ua haujlwm, thiab xa cov ntaub ntawv sai. Lub Ethernet interface kuj tseem ua rau Mitsubishi Q03UDECPU sib txuas lus nrog lwm cov modules ntawm qhov nrawm nrawm, yog li ua kom muaj txiaj ntsig tag nrho ntawm lub tshuab automation.

Hais txog kev nco thiab I / O muaj peev xwm, Mitsubishi Q03UDECPU ua tau zoo. Nws muaj cov qauv RAM thiab ROM rau khaws cov kev pab cuam thiab cov ntaub ntawv, thiab nws tuaj yeem txais daim npav nco (RAM, Flash, thiab ATA phaib) nrog lub peev xwm siab tshaj plaws ntawm 32M bytes. Qhov kev xaiv nco hloov pauv tau ua rau cov neeg siv khaws ntau daim ntawv thov thiab cov ntaub ntawv tseem ceeb raws li xav tau. Mitsubishi Q03UDECPU txhawb nqa mus txog 4096 I / O cov ntsiab lus thiab 8192 I / O ntaus ntawv cov ntsiab lus, tso cai rau nws txuas ntau lub sensors, keyboards, thiab lwm yam khoom siv ib zaug. Qhov no ua rau nws tsim nyog rau ntau yam kev tswj hwm kev lag luam uas xav tau ntau yam khoom siv ua haujlwm ua ke.

Specifications

Qauv	Q03 UAS
Series	MELSEC-Q
Hom	Universal CPU unit
Qhov hnyav	0.22 kg ib
Kev siv tam sim no (5V DC)	0.46 A
Tswj txoj kev	Khaws qhov program cyclic ua haujlwm
Qhov siab tshaj qhov kis tau tus mob	100 meters
Qhov Loj (H × W × D)	98 hli × 27.4 hli × 115 hli

Daim ntawv thov scenarios

Ib qho ntawm feem ntau cov ntawv thov rau Mitsubishi Q03UDECPU yog me me thiab nruab nrab - cov kab tsim khoom loj. Piv txwv li, hauv cov khoom siv hluav taws xob sib dhos, cov khoom siv hluav taws xob ua haujlwm, thiab cov khoom ntim khoom noj, Mitsubishi Q03UDECPU ua haujlwm raws li lub tshuab automation "lub hlwb". Nws tswj cov kev ua haujlwm ntawm conveyors, sensors, actuators, thiab lwm yam khoom siv, lav tias txhua qhov txuas ntawm cov kab ntau lawm ua haujlwm hauv qhov kev txiav txim kom raug, thiab ua kom cov khoom ua tau zoo dua thaum txo cov phau ntawv yuam kev. Nws 4096 I/O cov ntsiab lus thiab 30K- cov kauj ruam kev pab cuam muaj peev xwm txaus los tswj cov kev cai ntawm cov kab ntau lawm, ua rau Mitsubishi Q03UDECPU yog ib qho kev xaiv zoo tshaj plaws rau cov kab me me thiab nruab nrab ntau lawm automation.

Mitsubishi Q03UDEECPUs kuj tseem siv rau hauv me me - nplai ntim thiab cov khoom siv luam ntawv. Nws tswj cov khoom noj, ntim, txiav, thiab luam ntawv cov txheej txheem hauv cov tshuab ntim me me (xws li lub hnab yas thiab lub thawv ntim tshuab) nrog rau cov khoom siv luam ntawv duab. Mitsubishi Q03UDECPU's built-nyob rau hauv USB thiab Ethernet interfaces tso cai rau cov engineers yooj yim rau kev pab cuam, debug, thiab tswj cov cuab yeej, txuag lub sijhawm thiab nyiaj txiag. Lub caij no, nws qhov loj me thiab qhov yooj yim ntawm kev teeb tsa ua rau nws zoo tagnrho rau cov khoom siv nrog qhov chaw teeb tsa tsawg, uas yog qhov txiaj ntsig tseem ceeb ntawm Mitsubishi Q03UDECPU hauv cov ntim me me thiab cov khoom siv luam ntawv.

FAQ

Q: Mitsubishi Q03UDEECPU yog dab tsi?

A: Lub Mitsubishi Q03UDECPU yog qhov siab -kev ua tau zoo thiab muaj ntau yam MELSEC-Q Series PLC CPU module. Nws yog npaj rau nruab nrab mus rau loj - nplai automation systems uas xav tau kev tswj kom ntseeg tau, ua cov ntaub ntawv, thiab kev sib txuas lus hauv network. Kev tsim-hauv Ethernet chaw nres nkoj yog qhov tseem ceeb, tso cai rau kev sib koom ua ke yooj yim rau hauv lub Hoobkas sib txuas rau kev sib txuas lus nrog HMIs (Human Machine Interfaces), SCADA systems, thiab lwm yam khoom siv.

Q: Q03UDECPU puas tuaj yeem siv rau kev tswj cov ntawv thov?

A: Yog lawm, Q03UDECPU tsis yog tus tswj kev txav siab, tab sis nws ua haujlwm tau zoo raws li cov tub ntxhais kawm logic tswj hauv cov lus tsa suab -centric systems. Nws tuaj yeem sib txuas lus nrog cov qauv tshwj xeeb xws li Q172DS motion controller hla SSCNET III network. Qhov kev teeb tsa no tso cai rau Q03UDECPU los tswj cov txheej txheem logic thiab cov ntaub ntawv ua tiav, thaum lub zog tswj kev ua haujlwm zoo ntau -axis interpolation, positioning, thiab ceev tswj.
