Mitsubishi R60 ADI 8

Hom Tshuaj:Mitsubishi
Qauv:R60 ADI 8

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

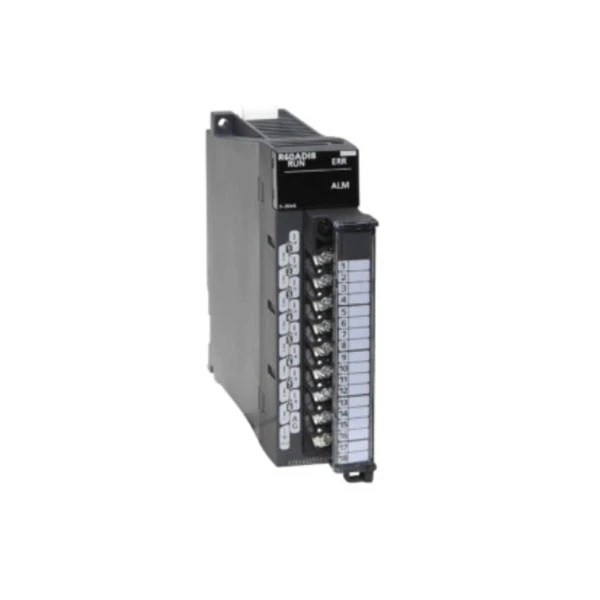

Mitsubishi R60ADI8 yog yim-channel analog tam sim no input module los ntawm Mitsubishi Electric's MELSEC iQ-R series. Mitsubishi R60ADI8 yog cov khoom lag luam nrov rau kev tsim khoom, tswj cov txheej txheem, thiab lwm yam kev siv vim nws qhov kev ua tau zoo ib yam thiab yooj yim ntawm kev teeb tsa. Mitsubishi R60ADI8 analog input module (cov ntaub ntawv naj npawb 279559) ua tiav ntau cov ntawv pov thawj thoob ntiaj teb, suav nrog UL, cUL, CE, thiab RoHS, ua kom nws muaj kev nyab xeeb thiab muaj txiaj ntsig hauv kev lag luam thoob ntiaj teb.

Mitsubishi R60ADI8 8-channel tam sim no cov tswv yim module suav nrog 8 txoj kev sib cais, uas tiv thaiv kev cuam tshuam thiab ua kom cov teeb liab raug. Hom kev tawm tswv yim yog DC tam sim no, thiab qhov ntau yam suav nrog 0 ~ 20 mA DC, 4 ~ 20 mA DC, 4 ~ 20 mA DC (kev txuas ntxiv), thiab tus neeg siv -txhais ntau yam. Qhov no tso cai rau nws hloov mus rau ntau haiv neeg tam sim no sau cov kev cai hauv kev tsim khoom. Mitsubishi R60ADI8 muaj cov kev tawm tswv yim ntawm 250 ohms, uas yuav pab tswj kom ntseeg tau cov teeb liab kis tau tus mob, thiab lub siab tshaj plaws cov tswv yim tam sim no ntawm 30 mA DC kom tsis txhob muaj kev puas tsuaj los ntawm cov tam sim no ntau dhau. Mitsubishi R60ADI8 muaj cov txiaj ntsig digital tso tawm ntawm 0 ~ 32000 thiab 16-ntsis daws teeb meem (1/32000), tso cai rau kev hloov pauv ntawm cov cim tam sim no rau cov teeb liab digital rau kev ua PLC.

Mitsubishi R60ADI8 muaj kev hloov pauv ceev ntawm 80 microseconds ib channel, tso cai rau nws nrawm nrawm nrawm nrawm tam sim no thiab ua kom muaj kev tswj hwm kev lag luam lub sijhawm teb. Mitsubishi R60ADI8 muaj qhov tseeb ntawm ± 0.1% (± 32 tus lej) ntawm 25 ± 5℃thiab ± 0.3% (± 96 tus lej) ntawm 0 ~ 55 degree, ua rau nws tsim nyog rau siab - qhov tseeb teeb liab sib sau ua ke hauv cov chaw lag luam feem ntau. Mitsubishi R60ADI8 MELSEC iQ-R module kuj txhawb nqa txog li 50,000 offset thiab nce nqis, tso cai rau cov neeg siv tau yooj yim hloov pauv raws li lawv cov kev xav tau tshwj xeeb.

Specifications

Qauv	R60 ADI 8
Series	MELSEC iQ-R Series
Hom	Analog Input Module
Tus naj npawb ntawm Channel	8 channels (tso tawm)
Terminal Thaiv	18-point ntsia hlau terminal block
Ua I/O Points	16 pkt
Hom tswv yim	DC tam sim no input
Kev daws teeb meem	16-ntsis (1/32000)

Cov kev ceev faj

Ua ntej, ua tib zoo saib yuav ua li cas Mitsubishi R60ADI8 tau teeb tsa. Koj yuav tsum txhim kho Mitsubishi R60ADI8 ntawm tus qauv MELSEC iQ-R series puag. Tsis txhob muab tso rau hauv xoob los yog tsis ncaj ncees lawm, vim qhov no yuav cuam tshuam rau lub module lub hwj chim mov thiab teeb liab kis tau tus mob. Tsis tas li ntawd, xyuas kom meej tias qhov chaw teeb tsa tau huv thiab huv ntawm cov plua plav ntau dhau, uas tuaj yeem ua rau cov khoom siv sab hauv ntawm Mitsubishi R60ADI8 ua rau lub sijhawm.

Qhov thib ob, ceev faj thaum txuas lub Mitsubishi R60ADI8. Txhawm rau txo qis kev sib cuag tsis zoo, cov khoom siv hluav taws xob siv 18-point ntsia hlau davhlau ya nyob twg thaiv; Yog li ntawd, lub davhlau ya nyob twg screws yuav tsum tau nruj me ntsis tom qab installation. Thaum txuas DC tam sim no cov tswv yim teeb liab, xyuas kom meej tias cov ncej zoo thiab qhov tsis zoo yog raug txuas; polarity tsis raug yuav ua rau cov teeb liab tsis raug sau los yog tejzaum nws puas rau Mitsubishi R60ADI8. Tsis tas li ntawd, cov tswv yim tam sim no yuav tsum tsis pub tshaj qhov siab tshaj plaws input ntawm 30 mA DC; txwv tsis pub, kev tiv thaiv overcurrent yuav qhib thiab rhuav tshem cov module

Thib peb, thaum siv Mitsubishi R60ADI8, ua kom lub siab nyob ib puag ncig. Mitsubishi R60ADI8 yuav tsum muaj qhov ua haujlwm kub ntawm 0℃txog 55℃thiab cia kub ntawm -25℃txog 70 degree. Tsis txhob muab lub module tso rau hauv qhov chaw uas muaj qhov kub siab lossis qis qis, vim qhov no yuav cuam tshuam rau nws txoj kev ua haujlwm thiab lub neej ntev. Txhawm rau kom tsis txhob muaj luv luv Circuit Court lossis rwb thaiv tsev puas rau Mitsubishi R60ADI8, tswj cov av noo ntawm 5-95% RH yam tsis muaj dej noo.

FAQ

Q: Mitsubishi R60ADI8 yog dab tsi, thiab nws lub luag haujlwm tseem ceeb yog dab tsi?

A: Lub Mitsubishi R60ADI8 yog siab -kev ua tau zoo analog input module npaj rau Melsec R Series programmable logic controllers. Nws txoj haujlwm tseem ceeb yog los hloov cov ntaub ntawv tiag tiag - ntiaj teb cov ntaub ntawv tam sim no los ntawm cov ntsuas ntsuas (xws li cov ntsuas ntws, lub tshuab xa hluav taws xob, lossis cov ntsuas kub nrog cov zis tam sim no) rau hauv cov txiaj ntsig digital uas PLC CPU tuaj yeem ua tau. Nws muaj 8 txoj kev sib cais, ua rau nws zoo meej rau cov ntawv thov uas xav tau ntau- taw tes saib xyuas.

Q: Hom teeb liab twg tuaj yeem ua rau Mitsubishi R60ADI8 analog input module kov?

A: R60ADI8 module yog tshwj xeeb tsim los tswj DC tam sim no cov cim. Cov tswv yim ib txwm muaj rau kev tswj cov txheej txheem yog 4 txog 20 mA. Feem ntau nws tuaj yeem lees txais qhov tam sim no ntawm 0 txog 20 mA. Nws yog ib qho tseem ceeb kom paub tseeb tias koj lub teb sensors tsim ib qho piv txwv tam sim no. Rau qhov hluav taws xob inputs, ib qho module cais, xws li R60ADV8, yuav tsum tau.

Q: Yuav ua li cas lub Mitsubishi R60ADI8 piv rau lwm yam analog input xaiv?

A: Muab piv rau cov teeb liab sib txawv lossis cov qauv sib xyaw ua ke tsawg dua, R60ADI8 muab qhov me me, nruab nrab, thiab tus nqi - siv tau zoo rau ntau -channel cov tswv yim tam sim no. Nws qhov kev sib txuas tsis sib haum nrog Melsec R Series CPU txo qis kev sib txuas ntawm kev sib txuas thaum ua kom muaj kev ruaj ntseg thiab kev ruaj ntseg. Thaum xaiv ib qho analog input module, R60ADI8 yog qhov kev xaiv zoo tshaj plaws rau cov haujlwm uas xav tau ntau 4-20mA inputs ntawm R Series platform.
