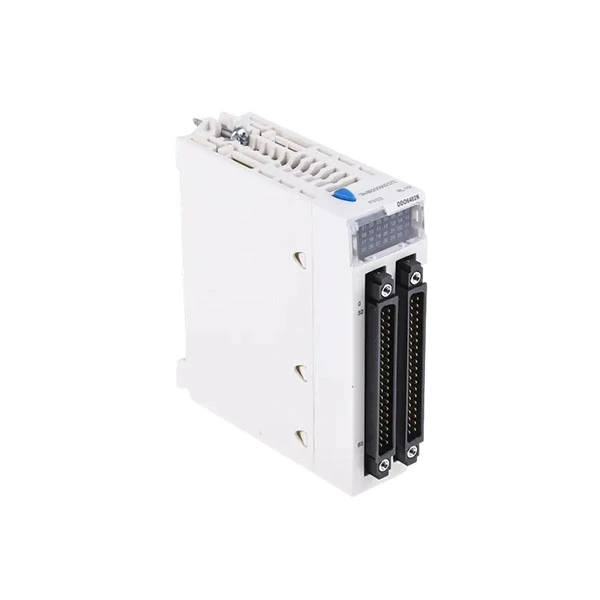

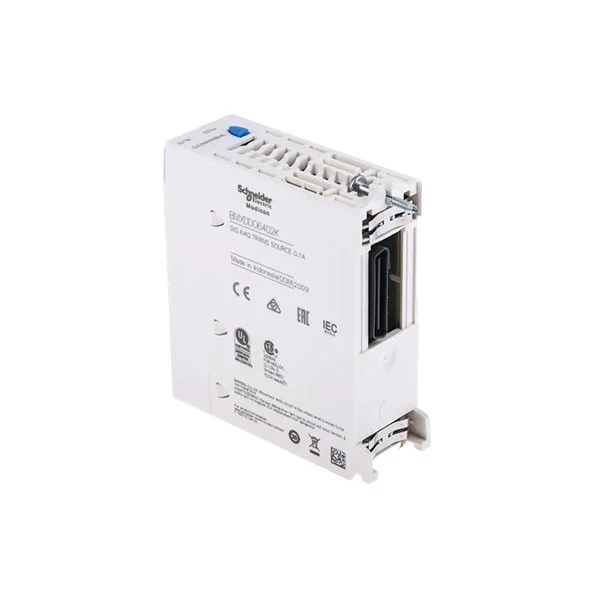

Schneider BMXDDO 6402K

Hom Tshuaj:Schneider
Qauv:BMXDDO 6402K

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

Schneider BMXDDO6402K yog sab saum toj -tier discrete output module los ntawm Schneider Electric's Modicon X80 kab. Nws yog tsim tshwj xeeb rau kev ua haujlwm siab -kev ua haujlwm automation daim ntawv thov, ua rau nws muaj kev vam khom rau cov chaw tsim khoom thiab cov phiaj xwm kev lag luam. Lub Schneider BMXDDO6402K, cov khoom tseem ceeb hauv Modicon X80 tsev neeg, muab cov yam ntxwv ua tau zoo thiab kev ua tau zoo txhim khu kev qha kom ua tiav cov kev xav tau ntawm cov tshuab tswj kev lag luam niaj hnub no.

Schneider BMXDDO6402K muaj 64 khoom- xeev (transistor) zoo logic tso zis raws, uas yog ib qho ntawm nws cov yam ntxwv tseem ceeb tshaj plaws. Qhov no txhais tau tias nws tuaj yeem tswj tau 64 cov khoom siv sib cais ib zaug, suav nrog cov motors me, teeb, thiab sensors hauv qhov system automation. Schneider BMXDDO6402K tuaj yeem muab qhov siab tshaj plaws tam sim no ntawm 0.1 A ib channel, nrog rau tag nrho qhov siab tshaj plaws tam sim no ntawm 6.4 A rau lub module tag nrho, uas yog txaus rau feem ntau ntawm kev lag luam tswj kev ua ub no.

Schneider BMXDDO6402K ua haujlwm nrog Modicon's M580 thiab M340 PAC systems, nrog rau Quantum Ethernet I / O. Qhov kev sib cuam tshuam no tso cai rau koj kom yooj yim txuas rau cov kev tswj hwm kev lag luam uas twb muaj lawm, tshem tawm qhov xav tau hloov tag nrho koj cov cuab yeej siv txhawm rau siv cov qauv no. Nws khiav ntawm qhov ntsuas hluav taws xob ntawm 24 V DC thiab kev ua haujlwm ntawm 19 txog 30 V DC, ua kom muaj kev ruaj ntseg nyob rau hauv ntau yam khoom siv hluav taws xob.

Hais txog kev ua tau zoo, Schneider BMXDDO6402K muab lub sijhawm 1.2 ms tso tawm cov tshuaj tiv thaiv, tso cai rau nws los teb nrawm los tswj cov khoom siv thiab txhim kho kev ua haujlwm ntawm koj lub tshuab ua haujlwm. Nws kuj tseem muaj lub sijhawm nruab nrab ntev ntawm kev ua tsis tiav (MTBF) ntawm 159,924 teev, qhia tias nws ruaj khov heev thiab tuaj yeem ua haujlwm rau lub sijhawm txuas ntxiv yam tsis ua haujlwm.

Specifications

Qauv	BMXDDO 6402K
Khoom Series	Modicon X80 Discrete Output Module
Number of Output Channels	Number of Output Channels
Cov khoom sib txuas	2 x 40-pin connectors
Rated Tso zis Voltage	24 V dc
Tib Channel tso zis tam sim no	0.1 A
Qhov siab tshaj plaws tungsten Load	1.2 W
Kev siv fais fab	6.85 W

Daim ntawv thov scenarios

Ib qho ntawm Schneider BMXDDO6402K thawj daim ntawv thov xwm txheej yog kev tsim khoom lag luam. Schneider BMXDDO6402K yog siv dav hauv cov kab sib dhos thiab cov tshuab tsim khoom hauv tsheb, kev ua zaub mov, thiab cov tuam txhab ntim khoom. Nws tuaj yeem tswj cov motors me me, conveyors, taw qhia teeb, thiab sensors ntawm lub Hoobkas hauv pem teb, kom ntseeg tau tias txhua theem ntawm cov txheej txheem tsim tau zoo. Piv txwv li, nyob rau hauv ib qho chaw ntim khoom, Schneider BMXDDO6402K tuaj yeem tuav 64 lub tshuab ntim khoom sib txawv tib lub sijhawm, ua kom cov khoom ntim tau zoo thiab txo qis kev siv phau ntawv yuam kev. Qhov no ua rau Schneider BMXDDO6402K ib qho kev xaiv zoo nkauj rau kev tsim khoom automation.

Schneider BMXDDO6402K kuj tseem siv dav hauv cov khoom siv thiab kev thauj mus los. Nws tswj cov actuators, conveyor siv, thiab sorting khoom nyob rau hauv warehouses thiab logistics chaw, cia cov khoom yuav tsum tau ceev ceev thiab raug. Nws 64 cov khoom tso tawm tso cai rau nws ua haujlwm ntau yam khoom siv thauj khoom ib txhij, uas muaj txiaj ntsig zoo hauv cov tsev khaws khoom loj - nplai nrog cov haujlwm tseem ceeb. Lub Schneider BMXDDO6402K lub sij hawm teb luv luv (1.2 ms) ua kom ntseeg tau tias nws tuaj yeem teb nrawm rau kev tswj cov teeb liab, tso cai rau cov tshuab logistics ua haujlwm tau zoo dua. Qhov no yog vim li cas ntau lub koom haum logistics nyiam Schneider BMXDDO6402K rau lawv cov kev xav tau automation.

FAQ

Q: Schneider Electric BMXDDO6402K yog dab tsi, thiab nws lub hom phiaj tseem ceeb yog dab tsi?

A: Schneider Electric BMXDDO6402K yog qhov siab -cov zis tawm qhov ceev (tseem hu ua digital output module) rau Modicon X80 platforms. Nws lub luag haujlwm tseem ceeb yog los ua qhov sib cuam tshuam ntawm lub programmable logic controller (PLC), xws li Modicon M340 lossis M580, thiab cov khoom siv hauv teb. Nws lees txais qhov qis-voltage PLC tswj cov cim thiab hloov mus rau lub zog siab dua (24V DC) kom qhib cov khoom siv hauv kev lag luam automation xws li solenoid li qub, qhov taw qhia teeb, relays, thiab me me motors.

Q: Qhov twg Schneider PLC systems yog BMXDDO6402K tshaj?

A: Lub BMXDDO6402K yog ib feem ntawm Modicon X80 I / O system, ib qho kev sib koom ua ke uas tso cai rau kev sib koom ua ke. Nws yog tag nrho sib xws nrog Modicon M340 PLCs thiab M580 PACs. Lub platform sib koom no txuag cov khoom seem thiab cov nqi kawm ntawv thoob plaws ntau tsev neeg tswj hwm.

Q: Kuv tuaj yeem nrhiav cov ntaub ntawv thev naus laus zis thiab kev txhawb nqa rau BMXDDO6402K qhov twg?

A: Schneider Electric "Modicon X80 - Discrete Input/Output Modules" cov lus qhia kho vajtse yuav tsum ib txwm siv los ua kom tiav cov kab kos, cov lus qhia, thiab cov lus pom zoo txog kev nyab xeeb. Rau kev teeb tsa thiab kev ua haujlwm, mus rau phau ntawv qhia rau koj PLC (xws li Modicon M340) thiab engineering software (xws li EcoStruxure™ Control Expert).
