Schneider TM3DQ8T 1

Hom Tshuaj:Schneider
Qauv:TM 3DQ8 T

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

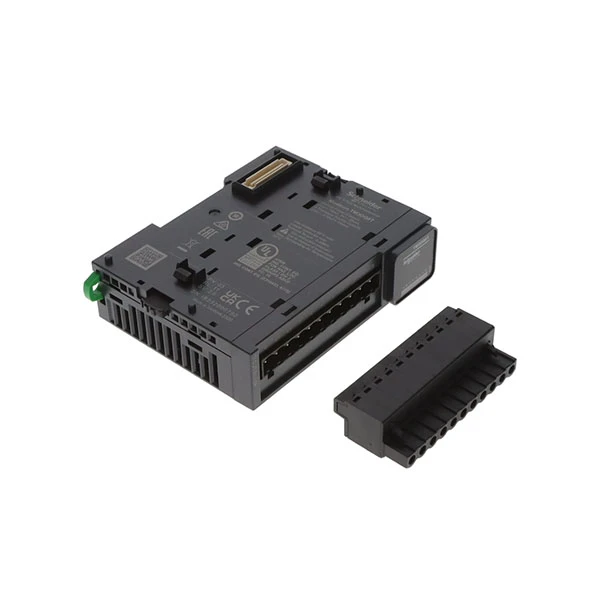

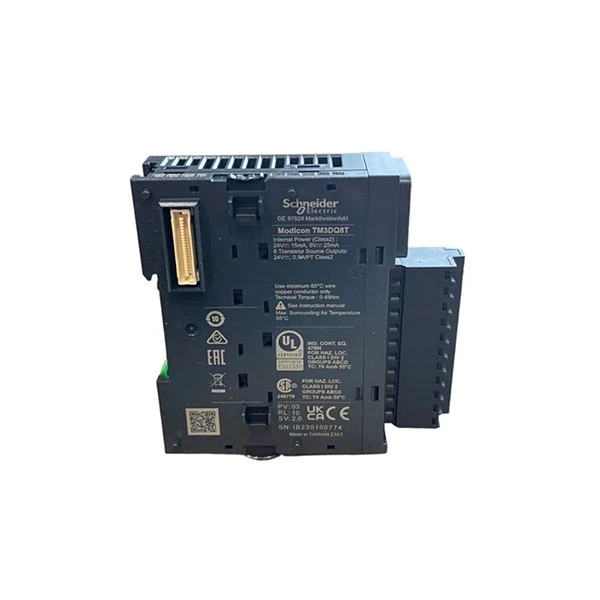

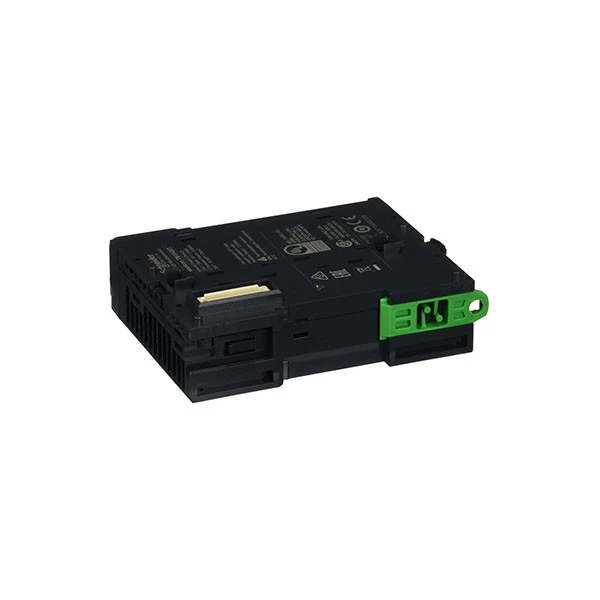

Schneider TM3DQ8T yog 8-channel transistor PNP (sourcing) digital output extension module los ntawm Modicon TM3 series tsim thiab tsim los ntawm Schneider Electric, cov chaw tsim khoom lag luam paub zoo thiab ntseeg tau. Lub Schneider TM3DQ8T nta yim ywj siab digital tso zis raws, tag nrho cov uas siv PNP transistor (sourcing) tso zis hom thiab qhia ib tug dav dav dav. Nws ua haujlwm ntawm qhov ntsuas qhov tso zis hluav taws xob ntawm 24 V DC, tus qauv hluav taws xob rau feem ntau cov kev tswj hwm kev lag luam. Schneider TM3DQ8T cov khoom tso tawm tuaj yeem muab qhov ntsuas tam sim no ntawm 500 mA, thiab lub davhlau ya nyob twg qhov siab tshaj plaws tam sim no tuaj yeem ncav cuag 8 A, tso cai rau nws siv zog ua ntau yam me me 24 V DC loads, suav nrog solenoid li qub, taw qhia teeb, lub cev muaj zog me, thiab relays.

Txhim kho thiab siv Schneider TM3DQ8T yog qhov yooj yim thiab ncaj nraim. Nws siv cov ntsia hlau tshem tawm cov khoom siv nrog lub suab ntawm 5.08 hli, tso cai rau kev ceev thiab yooj yim xaim thiab txij nkawm-koj tsuas yog tshem lub davhlau ya nyob twg rau xaim, tom qab ntawd ntsaws nws rov qab, txuag sijhawm. Lub Schneider TM3DQ8T tuaj yeem muab tso rau ntawm TH35-15 lossis TH35-7.5 DIN rails (IEC 60715 raws) lossis ntawm cov vaj huam sib luag, haum rau hauv cov txee tswj feem ntau yam tsis siv ntau qhov chaw. Qhov me me (27.4 mm × 84.6 mm × 90 mm) thiab lub teeb yuag (76 g) ua kom yooj yim rau nruab rau hauv qhov chaw me me.

Schneider TM3DQ8T yog tsim los tiv thaiv kev lag luam nyuaj. Nws muaj qhov ntsuas IP20 (nrog lub npog tiv thaiv) kom tsis txhob muaj plua plav thiab cov khoom me me nkag mus. Thaum muab tso rau ntsug, nws tuaj yeem ua haujlwm ib txwm nyob ntawm qhov kub ntawm -10℃txog 35 degree; Thaum ntsia kab rov tav, nws qhov kev ua haujlwm kub yog -10℃txog 55 degree, ua rau nws tsim nyog rau feem ntau ntawm cov ntawv thov kev lag luam. Nws tseem tiv taus kev co thiab kev cuam tshuam thiab tuaj yeem ua haujlwm ruaj khov ntawm qhov siab txog li 2000 meters. Lub module nta lub sij hawm teb ceev ntawm 450 µs rau kev qhib thiab tawm, ua kom muaj kev tswj xyuas ceev thiab raug tshaj ntawm kev sib txuas.

Specifications

Qauv	TM 3DQ8 T
Series	Modicon TM 3
Hom	8-channel transistor PNP (qhov chaw) digital output expansion module
Hom tso zis	Transistor (PNP / Source)
Number of Output Channels	8 txoj kev ywj pheej
Rated Tso zis Voltage	24 V dc
Qhov siab tshaj plaws tam sim no	8 A
Maximum Leakage Tam sim no	0.1 mA

Cov kev ceev faj

Ua ntej, ib txwm siv Schneider TM3DQ8T's rated output voltage (24 V DC). Tsis txhob txuas lub module rau ib qho hluav taws xob siab dua lossis qis dua 24 V DC, vim qhov no yuav ua mob rau Schneider TM3DQ8T cov khoom siv sab hauv thiab tuaj yeem ua rau luv luv lossis muaj kev nyab xeeb. Ua ntej koj qhib lub module, xyuas kom meej tias lub hwj huam mov ruaj khov.

Qhov thib ob, tsis txhob tshaj Schneider TM3DQ8T lub peev xwm thauj khoom. Schneider TM3DQ8T cov kev tso zis tawm muaj qhov ntsuas tam sim no ntawm 500 mA txhua, nrog rau qhov siab tshaj plaws tam sim no ntawm 8 A ntawm qhov dav dav dav. Kev sib txuas ntawm cov khoom siv uas xav tau tam sim no ntau dua yuav ua rau muaj kev cuam tshuam ntau dhau, uas tuaj yeem hlawv lub module lossis ua rau cov khoom puas. Piv txwv li, Schneider TM3DQ8T yuav tsum tsis txhob siv los tsav cov motors loj uas kos ntau tshaj qhov ntsuas tam sim no.

Thib peb, xyuam xim rau Schneider TM3DQ8T qhov chaw teeb tsa. Schneider TM3DQ8T muaj qhov ntsuas IP20, uas txhais tau tias nws tsuas tuaj yeem tiv thaiv cov plua plav loj los ntawm kev nkag mus. Tsis txhob muab nws tso rau hauv qhov chaw ntub dej, plua plav, lossis los nag, thiab khaws nws kom deb ntawm qhov kub ntawm - cov khoom siv kub xws li cov cua sov. Thaum ntsia vertically, kev khiav hauj lwm kub yuav tsum nyob nruab nrab ntawm -10℃thiab 35 degree; Thaum ntsia kab rov tav, nws tuaj yeem ua haujlwm ntawm -10℃thiab 55 degree.

FAQ

Q: Schneider Electric TM3DQ8T yog dab tsi, thiab nws lub luag haujlwm tseem ceeb yog dab tsi?

A: Schneider Electric TM3DQ8T yog ib qho kev tso zis tawm los ntawm Modicon TM3 series ntawm expansion I/O modules. Nws lub luag haujlwm tseem ceeb yog muab 8 transistor outputs (PNP / qhov chaw) rau kev tswj cov khoom siv sab nraud xws li relays, ntsuas, solenoids, thiab hloov pauv ceev tsav cov khoom siv hluav taws xob. Nws ua hauj lwm raws li ib tug ntau yam thiab adaptable extender rau ntxiv cov ntsiab lus tso zis ntau ntxiv rau Modicon maub los.

Q: Cov qauv thiab ntawv pov thawj dab tsi yog qhov kev txiav txim siab I / O module tuav?

A: TM3DQ8T ua tau raws li cov qauv tseem ceeb thoob ntiaj teb, uas yog qhov tseem ceeb rau kev ua raws cai hauv ntau lub tebchaws. Cov ntawv pov thawj suav nrog CE, cULus, thiab RCM (C-Tick). Nws ua tau raws li IEC 61131-2 tus qauv rau cov khoom siv tswj tau thiab muaj Schneider Electric Green Premium™ eco-label, qhia txog qhov pom tseeb ntawm ib puag ncig thiab ncig.

Q: Hauv cov ntawv thov kev lag luam thiab cov haujlwm twg yog TM3DQ8T nquag siv?

A: Raws li ntau yam 8-tso tawm transistor module rau PLC tswj, nws tsim nyog rau ntau yam kev siv automation. Cov ntawv thov xws li tswj cov actuators, conveyor systems, ntim machinery, thiab teeb pom kev zoo. Nws qhov kev cia siab ua rau nws muaj txiaj ntsig zoo hauv kev lag luam xws li kev tsim khoom, khoom noj khoom haus thiab dej haus, kev tswj vaj tsev, tshuaj, thiab kev thauj mus los.

Cim npe nrov: schneider tm3dq8t, Tuam Tshoj schneider tm3dq8t lwm tus neeg
