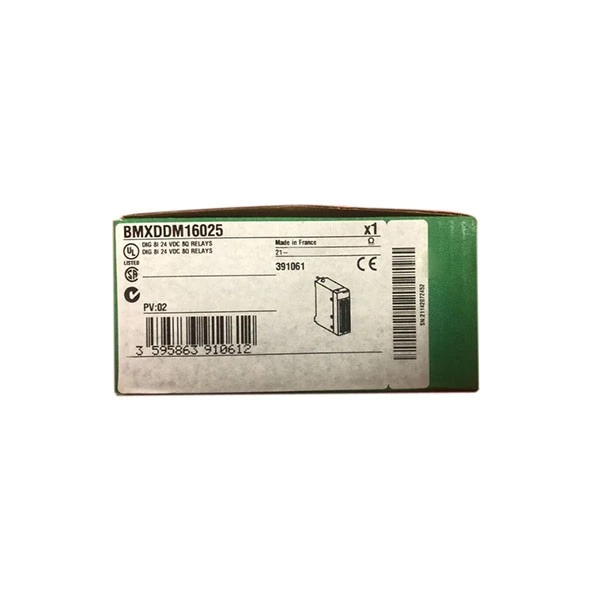

Schneider BMXDDM16025

Hom Tshuaj:Schneider
Qauv:BMXDDM16025

Qhov xwm txheej khoom muag:Cov khoom muaj nyob rau hauv Tshuag.

Khoom nta

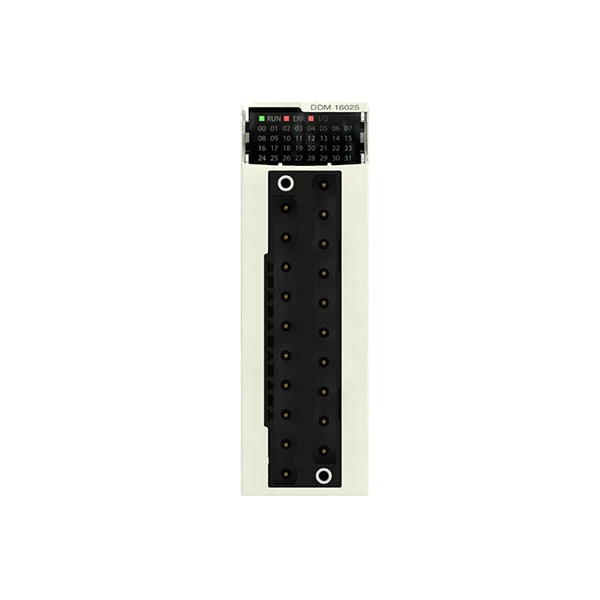

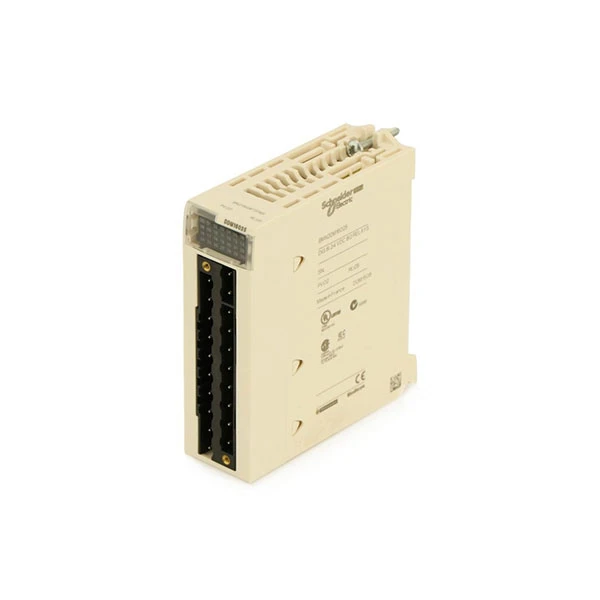

Schneider BMXDDM16025 yog lub siab -kev sib cais sib xyaw I/O module tsim thiab tsim los ntawm Schneider Electric, ib tug zoo-paub hom nyob rau hauv industrial automation. Nws yog ib feem ntawm Modicon X80 cov khoom lag luam, uas suav nrog ib lub platform module uas muaj kev cuam tshuam nrog Modicon M340 thiab M580 Programmable Automation Controllers.

Schneider BMXDDM16025 yog ib qho sib xyaw I / O module uas muaj yim lub tswv yim thiab yim relay tso zis raws, uas yog ib qho ntawm nws cov yam ntxwv tseem ceeb tshaj plaws. Schneider BMXDDM16025's input channels siv 24V DC qhov hluav taws xob zoo thiab tuaj yeem ua haujlwm tau zoo hauv qhov hluav taws xob ntau ntawm 19 txog 30VDC. Txhua qhov input channel muaj qhov ntsuas tam sim no ntawm 3.5 mA thiab qhov input impedance ntawm 6800 ohms, ua rau nws sib xws nrog 2-xaim lossis 3-xaim sib thooj sensors uas ua tau raws li IEC 60947-5-2 thiab IEC 61131-2 hom 3 tus qauv. Qhov no ua rau Schneider BMXDDM16025 hloov tau yooj yim heev nyob rau hauv cov ntawv thov kev lag luam, vim nws tuaj yeem txuas nrog ntau yam sensors los ntes cov ntaub ntawv ntawm qhov chaw.

Lub Schneider BMXDDM16025 muaj 8 relay tso zis raws nrog zoo logic. Cov kev tso zis no muaj ntau qhov hluav taws xob ntau thiab tuaj yeem siv nrog cov khoom siv hluav taws xob xws li 19 txog 30V DC thiab 19 txog 264V AC (nominal 24-240V AC). Txhua qhov tso zis tawm tuaj yeem xa cov ntsuas tam sim no ntawm 2A, uas txaus rau lub zog rau feem ntau cov actuators thiab khoom siv. Schneider BMXDDM16025 relay outputs feature lub sij hawm teb ceev: ua kom tsis pub dhau 10 milliseconds, thiab deactivation tsis ntau tshaj 8 milliseconds, lav tias cov cuab yeej teb tam sim ntawd los tswj cov teeb liab.

Specifications

Qauv	BMXDDM16025
Series	Modicon X80
Hom Module	Discrete Mixed I/O Module
Kev tiv thaiv ntsuas	IP20
Number of Input Channels	8 channel
Number of Output Channels	8 channel
Rated Input Tam sim no	3.5 mA
Ua haujlwm kub	0 ~ 60 degree

Daim ntawv thov scenarios

Cov chaw tsim khoom yog ib qho ntawm Schneider BMXDDM16025 qhov feem ntau cov ntawv thov scenarios. Schneider BMXDDM16025 sau cov teeb liab los ntawm ntau ntawm - qhov chaw sensors hauv cov kab ntau lawm xws li cov tsheb sib dhos, cov khoom siv hluav taws xob sib dhos, thiab cov tshuab ua cov kab. Nws tuaj yeem txuas 2-xaim lossis 3-xaim sib thooj sensors txhawm rau txheeb xyuas qhov chaw ua haujlwm, kho qhov xwm txheej, thiab qhib thiab kaw qhov rooj nyab xeeb hauv lub sijhawm. Ib txhij, Schneider BMXDDM16025's relay output channels tuaj yeem ua haujlwm actuators xws li solenoid li qub, taw qhia teeb, thiab cov motors me me, kom ntseeg tau tias txhua theem ntawm cov kab ntau lawm mus zoo. Schneider BMXDDM16025 lub sij hawm teb ceev thiab muaj kev ntseeg siab pab cov chaw tsim khoom txhim kho kev tsim khoom thiab txo qhov tshwm sim ntawm cov khoom tsis raug.

Schneider BMXDDM16025 kuj tseem siv dav hauv kev lag luam hluav taws xob, tshwj xeeb hauv cov chaw tsim hluav taws xob thiab cov chaw nres tsheb. Txhawm rau muab cov khoom siv hluav taws xob ruaj ntseg thiab ruaj khov, lub xeev khiav ntawm cov khoom siv hluav taws xob sib txawv yuav tsum tau saib xyuas hauv lub sijhawm. Schneider BMXDDM16025 tuaj yeem txuas rau Circuit Court breakers 'auxiliary contacts, cais hloov txoj hauj lwm sensors thiab kub sensors los sau cov ntaub ntawv xws li cov cuab yeej ua hauj lwm kub thiab hloov raws li txoj cai. Nws qhov dav input voltage ntau (19-30V DC) ua rau nws sib xws nrog sensors los ntawm ntau lub tuam txhab, tiv thaiv cov teeb liab poob vim qhov tsis sib haum xeeb. Schneider BMXDDM16025 qhov kev ua haujlwm tsis tu ncua tso cai rau cov neeg ua haujlwm txheeb xyuas cov khoom siv tsis raug sai thiab txo lub sijhawm ua haujlwm.

FAQ

Q: Schneider Electric BMXDDM16025 yog dab tsi, thiab nws lub luag haujlwm tseem ceeb yog dab tsi?

A: Schneider Electric BMXDDM16025 yog 16-channel digital input module los ntawm Modicon M340 tsev neeg. Nws lub luag haujlwm tseem ceeb yog kev sib txuas lus nrog cov khoom siv hauv teb xws li sensors (xws li, qhov sib thooj thiab photoelectric), laub khawm, thiab keyboards. Nws hloov lawv cov xwm txheej rau / tawm (24V DC cov teeb liab) rau hauv cov qib logic uas PLC processor tuaj yeem nyeem tau, ua raws li qhov tseem ceeb ntawm cov tswv yim sib txuas rau kev lag luam automation.

Q: Dab tsi cov qauv, ntawv pov thawj, thiab kev ntsuas ib puag ncig nws tuav?

A: BMXDDM16025 yog npaj rau kev lag luam siv thiab ua tau raws li cov qauv thoob ntiaj teb tseem ceeb xws li CE, UL, cULus, thiab ATEX rau qee qhov chaw txaus ntshai (cov qauv nrog cov lus xaus). Nws ib txwm muaj qhov ntsuas IP20 ingress tiv thaiv, qhia tias nws tiv thaiv cov khoom loj dua 12.5 hli tab sis tsis tiv thaiv dej. Nws yog tsim rau siv nyob rau hauv qhov kub ntawm 0℃mus rau 60 degree.

Q: Kuv yuav teeb tsa thiab kuaj xyuas BMXDDM16025 module li cas?

A: Lub module tau ua tiav tag nrho siv Schneider Electric's Unity Pro software (los yog tus kws tshaj lij EcoStruxure Control tshiab). Tsis tas yuav kho kho vajtse. Thaum luam theej duab PLC teeb tsa, software tam sim ntawd paub txog qhov module. Cov neeg siv tuaj yeem teeb tsa qhov tsis xws li kev nkag mus lim lub sijhawm kom txo tau kev sib cuag bounce thiab hluav taws xob nrov. Cov ntaub ntawv kuaj mob yog muab los ntawm software thiab module cov xwm txheej LED.
